Omnitronic MTC-6408 PA amplifier RMS power per channel (at 4 Ohm): 800 W
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic MTC 6408 8-channel power amplifier
- Class D multi-channel PA-amplifier with switched-mode power supply
- 8 x 800 W RMS (4 ohm), 8 x 400 W RMS (8 ohm)
- Very low weight and compact installation height through built-in switched-mode power supply
- 2 modes can be set (stereo or bridge/100V)
- This text is machine translated.
Technical specifications
- Product type
PA amplifier
- Power per channel (4Ω)
800 W
- Power per channel (8Ω)
400 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
- Weight
9.42 kg
- Width
48.3 cm
- Height
8.8 cm
- Length
40.8 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131321 Omnitronic MTC-6408 PA amplifier RMS power per channel (at 4 Ohm): 800 W
Description
Features
- Level control per channel
- (19") 48.3 cm rack installation 2 HE
- Highly efficient air flow front to rear
- The device is cooled by a temperature controlled fan
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 1200 W 1/8 Power
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 119 dB
- Harmonic distortion factor: 0.05 % with 1 kHz
- Impedance: 20 kOhm , balanced
- Input: 10 kOhm , unbalanced
- Gain 28.2 dB
- Controls: Power switch, volume control per channel, power selection switch (stereo/bridge)
- Status LED: Power, signal, clip, bridged, protect

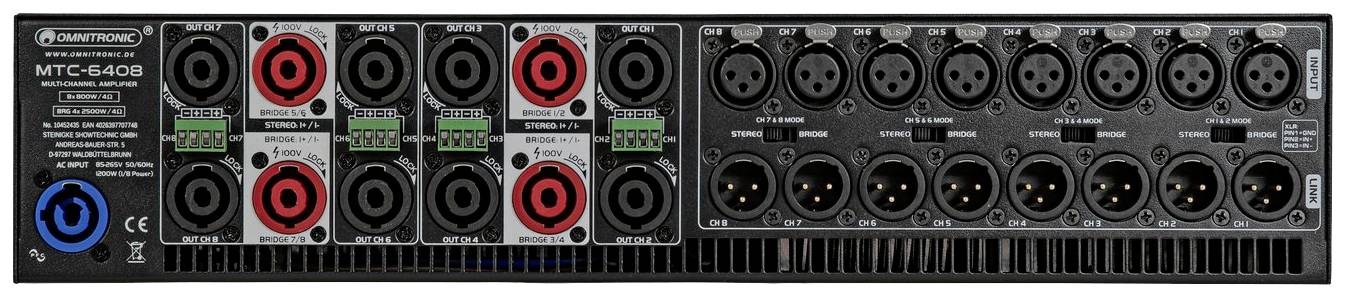

- Connections: Line via 8 x 3-pin XLR
- 8 x mounted speaker jack (W)
- Housing design (19") 48.3 cm Rack installation 2 HE
- Protection class SK I
- Output power 8 x 800 W RMS (4 ohm)
- Cable length 1 m.
- Device fuse: 5 x 20 mm, T 10 A fuse installed permanently (e.g. on circuit board)
- Cooling: 2 x fans temperature controlled , air flow front to rear
- Housing colour black.
- Class D switching
- Attenuation factor 350
- Protective circuit: Soft start
- DC voltage: DC voltage
- Short circuit: Short circuit
- Overheating: Overheating
- Overload: Overload
- Link: Line via 8 x 3-pin XLR
- Bridged (8 ohm)
- Bridged 34.2 dB
- 8 x 400 W RMS (8 ohm)
- 4 x 1500 RMS
- 8 X 200 W RMS (100 V)
- 4 x 1500 W RMS bridged (100 V)
Scope of delivery
- Amplifiers
- Network cable/power cable
- User manual
