Omnitronic WP-10H In-ceiling speaker White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

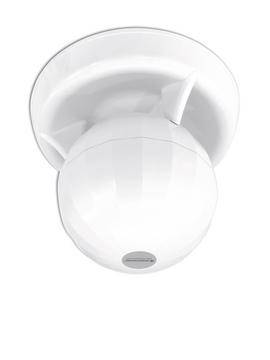

Omnitronic WP-10H ceiling speakers
- Mounting via steel ropes
- Through high-quality plastic housing (ABS) impact and scratch-proof
- Good sound quality
- This text is machine translated.
Technical specifications
- Input voltage: 100 V
- Components: 15 cm Loudspeaker (6")
- Power rating 7.5W RMS (green)
- 15 W RMS (yellow)
- 30 W RMS (red)
- COM (blue)
- Sensitivity (1 W, 1 m): 90 dB, ±3 dB
- Frequency range 110 Hz - 18 kHz
- Dimensions (D x D): 378 x 302 mm
- Weight: 2.5 kg
- Shipping weight: 3,300 kg
- Product type
In-ceiling speaker
- RMS capacity
30 W
- Power levels
7.5 unece.unit.WTT
15 unece.unit.WTT
30 unece.unit.WTT
- Type
Spherical
- Factory colour
White
- Material
Plastic
- Width
37.8 mm
- Height
37.8 mm
- Depth
30.2 mm
- Weight
3
- Dim
(W x H x D) 37.8 x 37.8 x 30.2 mm
Documents & Downloads
Datasheet
Datasheet 1284334 Omnitronic WP-10H In-ceiling speaker White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1284334 Omnitronic WP-10H In-ceiling speaker White 1 pc(s)
Description
Features
- Ball loudspeaker white
- 100 V speaker system with 3 power taps
- Impact-resistant and scratch-resistant plastic (ABS).
- Ceiling mounting via steel cables included in delivery
- Separate audio cable
- For indoor public address systems.
