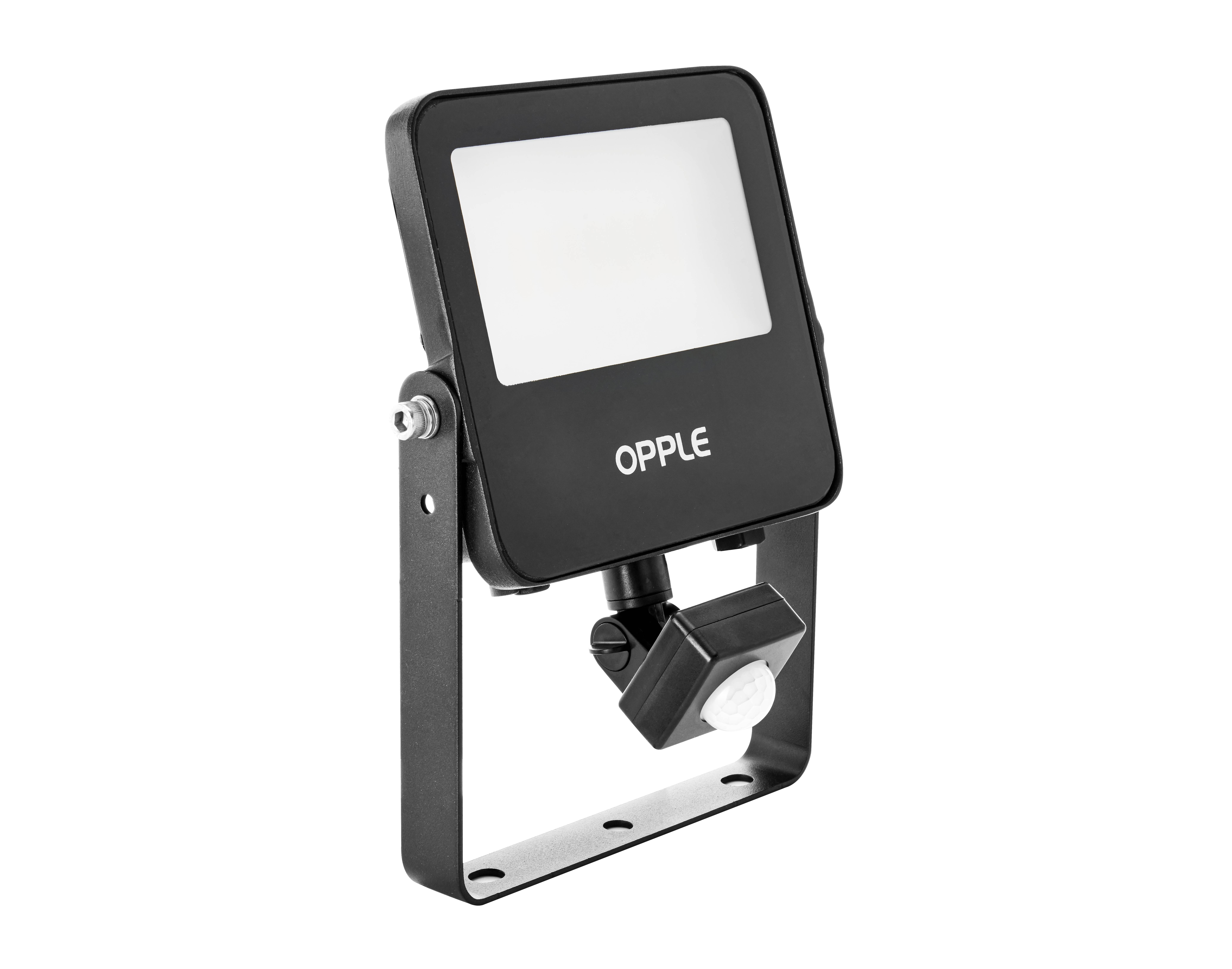

Name: Opple 709000072500 709000072500 LED floodlight 10 W Colours (LEDs): White
Brand: Opple
SKU: 3135848

Highlights & Details

Opple lighting LED floodlight 840, sensor, SW flood #709000072500

Power= 10 W
Total luminous flux= 1200 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for traverse installation: No.
Suitable for pedestal/floor mounting: Yes
Suitable for rail mounting: No.
Suitable for clamp mounting: No.
Suitable for cable system: No.
Adjustable: Pivoting
With motion detector: Yes
With light sensor: Yes
Bulb: LED not replaceable
With bulb: Yes
Socket: Without
Black enclosure
Cover material: Glass opal
Surface brushed: No.
Voltage type AC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimming depends on the operating device: No.
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Reflector: White
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Radiation angle: Extremely wide radiation >80°
Light emission: Direct
Rated life L70/B50 at 25 °C: 50000 h
Constant luminous flux regulation: No.
Protection class (IP) IP65
Impact strength: IK07
Protection class: I
Rated ambient temperature according to IEC62722-2-1: -30..50°C.
Max. System power 10 W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Rated light current according to IEC 62722-2-1: 1200 lm
Power factor 0.9
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Width 133 mm
Height/depth 34 mm
Length: 172 mm
Type of wiring: Finish
Lamp with limited surface temperature "D-sign": No.
Max. Number of lights circuit breaker B16: 71
Max. Number of lamps line circuit breakers C16: 119
Integrated emergency power supply: No.
Light output 120 lm/W
Photobiological safety according to EN 62471: RG1
IFTTT support available: No.
Color consistency (McAdam ellipse): SDCM4
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.

Product type: LED floodlight

Operating voltage: 230 V

Bulb type: LED (monochrome)

: w/o

: 10 W

: 4000 K

Colour: White

: 1200 lm

Total luminous flux: 1200 lm

Light features: Swivelling

Protection class: I

: IP65

Factory colour: Black

Dim: (L x W x H) 172.00 x 133.00 x 34.00 mm

: n.rel.

Colour rendering index: 80-89

Light bulb included: Yes

Width: 133.00 mm

Height: 34.00 mm

Length: 172.00 mm

Rated luminous flux: 1200 lm

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Nominal voltage: 230 V

UKCA: yes
