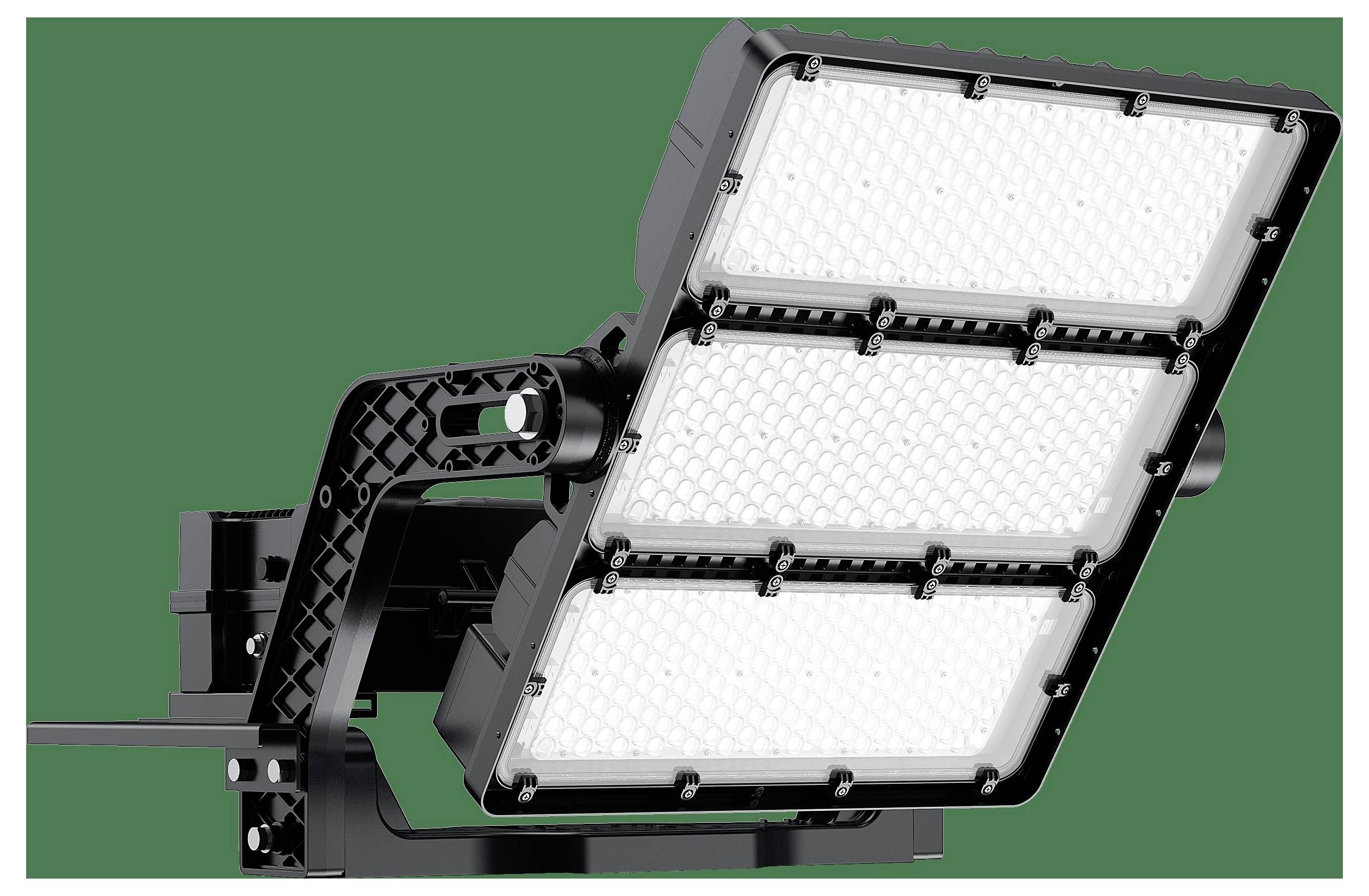

Image similar
Opple LEDFloo#720001012600 720001012600 LED floodlight 1200 W
EAN:
Part number:
Item no:
Highlights & Details
Opple lighting LED headlight 757 LEDFloo#720001012600
- Power= 1200 W
- Colour temperature= 5700 K
Technical specifications
- Width 612 mm
- Protection class (IP) IP66
- Protection class: I
- Impact strength: IK08
- Material of housing: Aluminium
- Length: 931 mm
- Nominal voltage 200..528 V
- Nominal current: 5500 mA
- Type of connection: Screw terminal
- Voltage type AC/DC
- Bulb: LED not replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 5700 K
- Color Rendering Index CRI: 70-79
- Adjustable color temperature: No.
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Height/depth 356 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Black enclosure
- Surface brushed: No.
- With operating device: No.
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimming 1-10 V: Yes
- DALI-2 dimming: Yes
- DALI dimming: No.
- DMX dimming: Yes
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: Yes
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming touch and dim: Yes
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 1200 W
- Luminous flux: 192000 lm
- Rated light current according to IEC 62722-2-1: 192000 lm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Transparent glass
- Light: Focus lens
- Color consistency (McAdam ellipse): SDCM6
- Rated ambient temperature according to IEC62722-2-1: -30..45°C.
- Integrated emergency power supply: No.
- Light output 160 lm/W
- Power factor 0.95
- Suitable for pedestal/floor mounting: Yes
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Socket: Without
- S/N ratio (THD): 0.1
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 3
- Max. Number of lamps line circuit breakers C16: 3
- Rated life L70/B50 at 25 °C: 100000 h
- Light intensity 165220 cd
- Flicker value PST LM: 0.004
- Strobe effect value SVM: 0.008
- Product type
LED floodlight
- Operating voltage
200 V
- Bulb type
LED (monochrome)
1200 W
5700 K
- Radiation angle
41°
IP66
- Factory colour
Black
- Material
Aluminium
- Dim
(L x W x H) 931 x 612 x 356 mm
n.rel.
- Width
612 mm
- Height
356 mm
- Length
931 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548285 Opple LEDFloo#720001012600 720001012600 LED floodlight 1200 W
Description
Powerful professional floodlight solution for sports and area lighting. All-in-one LED driver with flexible mounting methods and 220-400VAC power input. Standard compatible with DALI2 / 1-10V / DMX dimming. Robust design: Fully IP66 and IK08 certified, including security cable. Includes diaphragm to prevent condensation.
