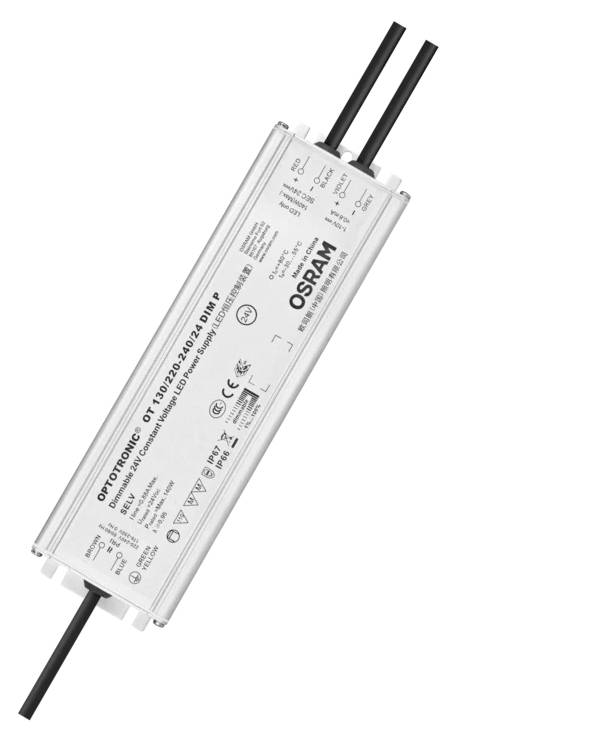

OSRAM HOMELIGHTING OT 130/220…240/24 DIM P LED transformer Constant voltage 140 W 24 V DC dimmable 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
OT 130/220…240/24 DIM P
- Constant voltage
- 24 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 220 x 63 x 37 mm
- Factory colour
Colourless
- Output voltage (max.)
24 V DC
- Test mark
CB / C-Tick
- Operating voltage
230 V AC
- Protection class
IP67
- LED driver features
dimmable
IP67
- Connection
Punchdown block
- Max. power
140 W
- No. of outputs
1 x
- Input voltage (max.)
264 V AC
276 V DC
- Min. input voltage
198 V AC
176 V DC
- Weight
1100 g
- Power range
140 W (max)
- Width
63 mm
- Height
37 mm
- Length
220 mm
- Max. temperature
+55 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 758534 OSRAM HOMELIGHTING OT 130/220…240/24 DIM P LED transformer Constant voltage 140 W 24 V DC dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 758534 OSRAM HOMELIGHTING OT 130/220…240/24 DIM P LED transformer Constant voltage 140 W 24 V DC dimmable 1 pc(s)
Description
Versatile 1…10 V-wide range driver up to 240 W through flexible output characteristic · Very high efficiency and reliability ·
High IP protection (IP67) · High surge protection: up to 3 kV (L-N)/6 kV (L/N-PE)
This text is machine translated.
High IP protection (IP67) · High surge protection: up to 3 kV (L-N)/6 kV (L/N-PE)
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
