Name: Palmer Musicals Instruments MACHT 402 Stereo headstage RMS power per channel (at 4 Ohm): 200 W
Brand: Palmer Musicals Instruments
SKU: 2616381

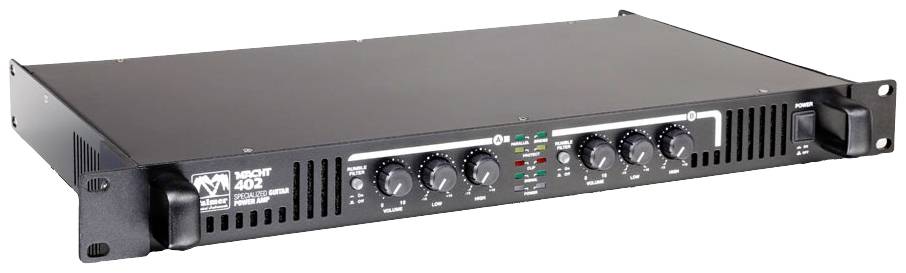

A black audio mixer with multiple buttons and LED indicators on the front panel. It has handles on both ends for rack mounting.

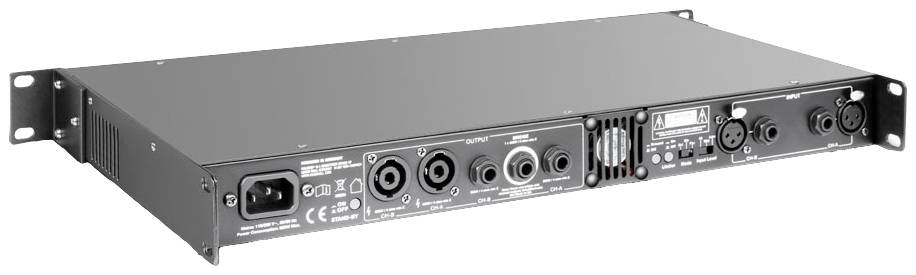

Audio device with various connections and controls, including XLR and jack socket inputs; suitable for professional audio productions.

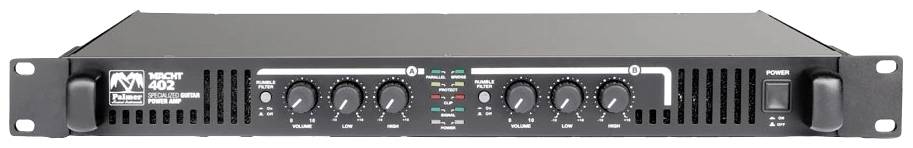

Audio device with a black enclosure, multiple rotary controls, and coloured LED indicators on the front panel, suitable for rack mounting.

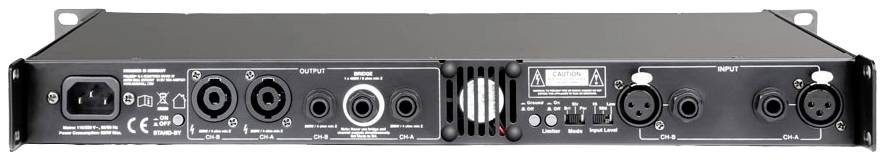

The image shows the rear panel of an audio amplifier with various connection options, including XLR and jack sockets.

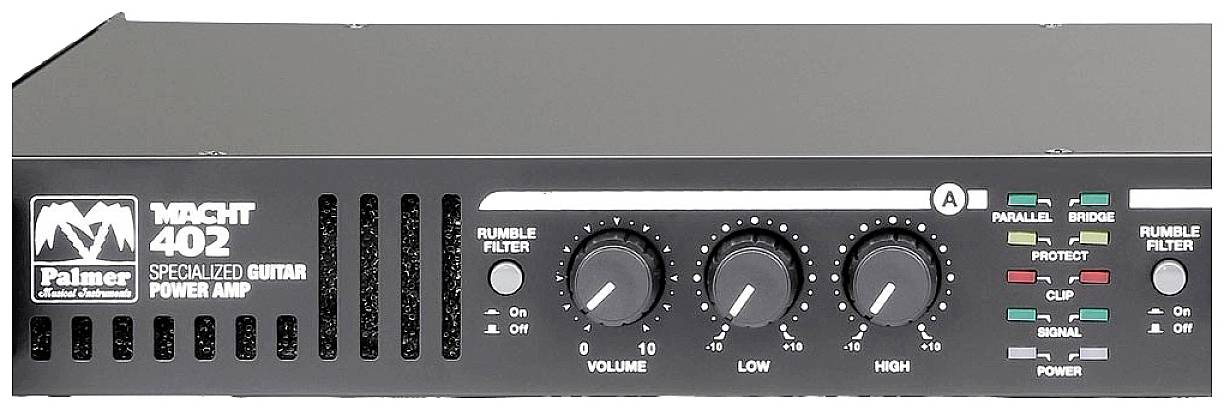

'Palmer Macht 402 Specialised Guitar Power Amp' pictured, with three rotary controls for Volume, Low and High. Status indicators on the right.

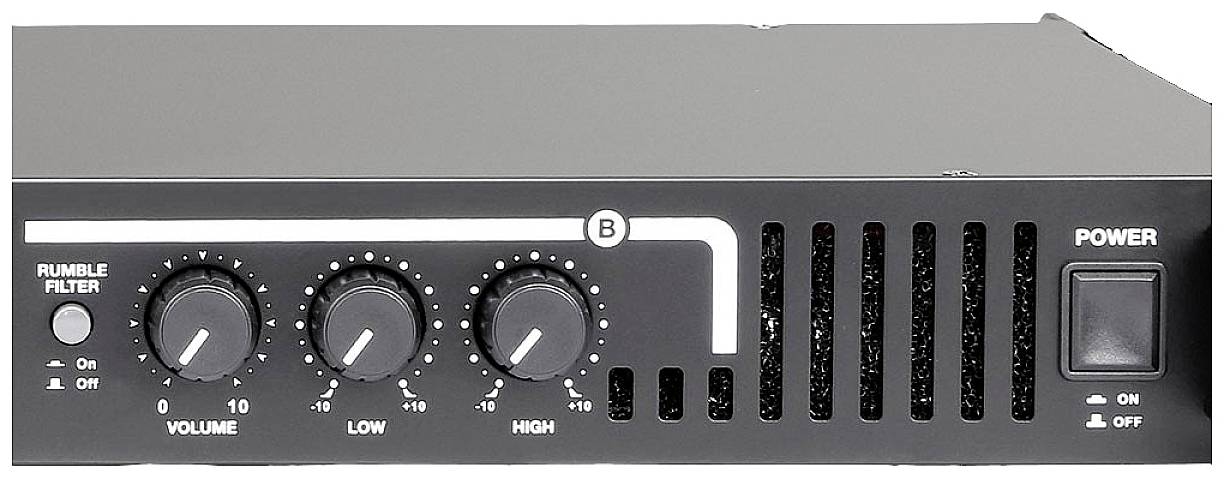

Front panel of an audio device with rotary controls for volume, bass and treble, along with switches for rumble filter and power.

'Back of an audio amplifier with two XLR inputs marked as CH-A and CH-B, alongside switches for Ground, Limiter, Mode and Input Level.'

Rear view of an audio device with power connection, standby switch, and four audio outputs for channels CH-A, CH-B, and Bridge.

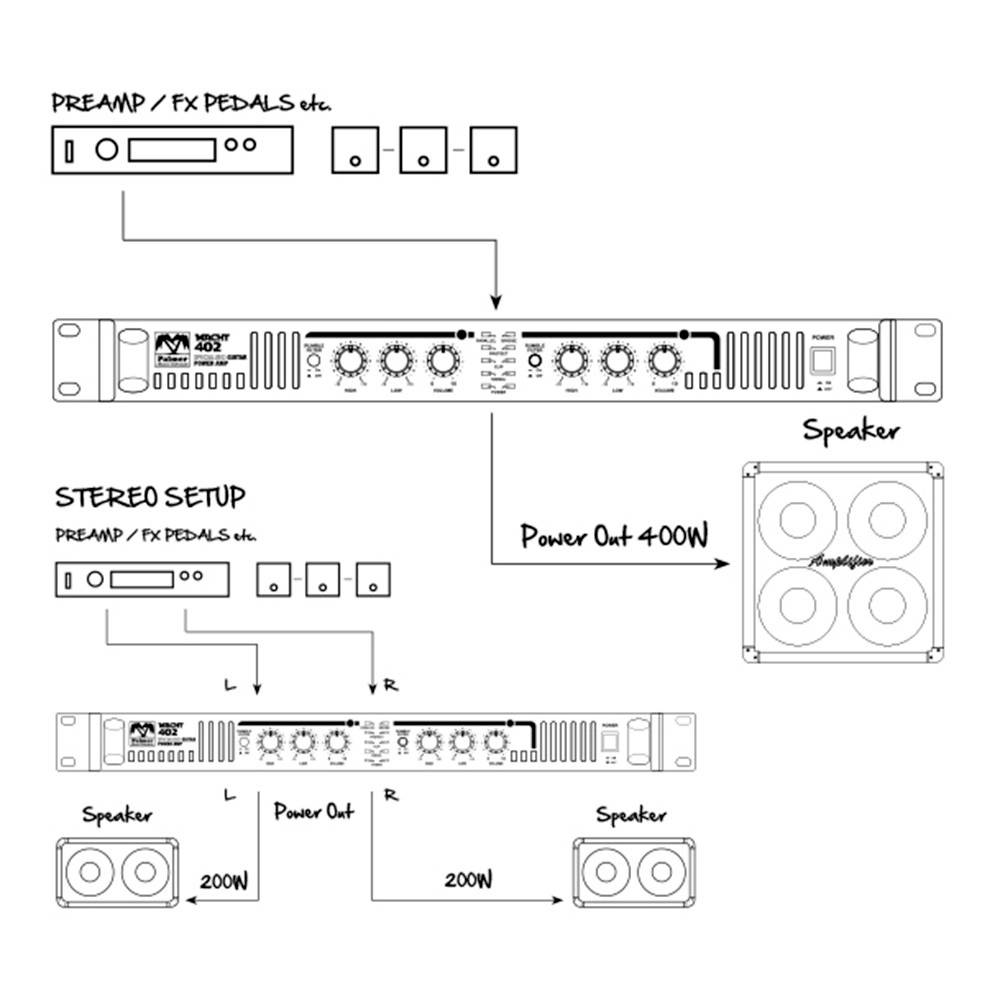

Diagram of a Stereo Setup Audio Configuration. Top: Preamplifier and FX Pedals. Middle: Main Amplifier. Bottom: Speakers with 200W left and right, 400W Power Out.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Palmer MAKES 402 19" stereo amplifier for guitar

Stereo amplifier for guitar200 watts per channel at 4 ohms400 Watt bridged for mono useEQ precisely tailored to guitar signalsInput sensitivity can be selected for preamps, pedals etc.Integrated limiterAll essential protective circuitsWorks with every guitar box

Technical specifications

Product type: Stereo headstage

Power per channel (4Ω): 200 W

Power per channel (8Ω): 100 W

Interfaces: 6.3 mm jack in
6.3 mm jack out
RCA in

Weight: 3.8 kg

Width: 48.2 cm

Height: 4.4 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2616381 Palmer Musicals Instruments MACHT 402 Stereo headstage RMS power per channel (at 4 Ohm): 200 W

Description

The Palmer MAKES 402 is a 19" stereo amplifier, which was developed especially for use with guitars. It delivers 200 watts per channel and 400 watts bridged and works with virtually any guitar box. The soft-starting Class D design with particularly efficient switched-mode power supply and low-noise fan is protected against over and direct current, short-circuit and overheating.Conventionally described, but precisely tailored to guitar signals in the complex development, the Hi and Low buttons with extensive cloning options enable many sounds and the real feeling of playing a tube amplifier. For this purpose, THE MAKES 402 Rumpelfilter, LED displays, a 3-way selector switch for input sensitivity, limiter and a ground lift. With XLR and 6.35 mm inputs as well as Speak on-compatible and 6.35 mm output connections, the Palmer MAKES 402 the perfect high-performance central unit for guitar preamps, small amplifiers, modellers and even effect pedals.

This text is machine translated.
