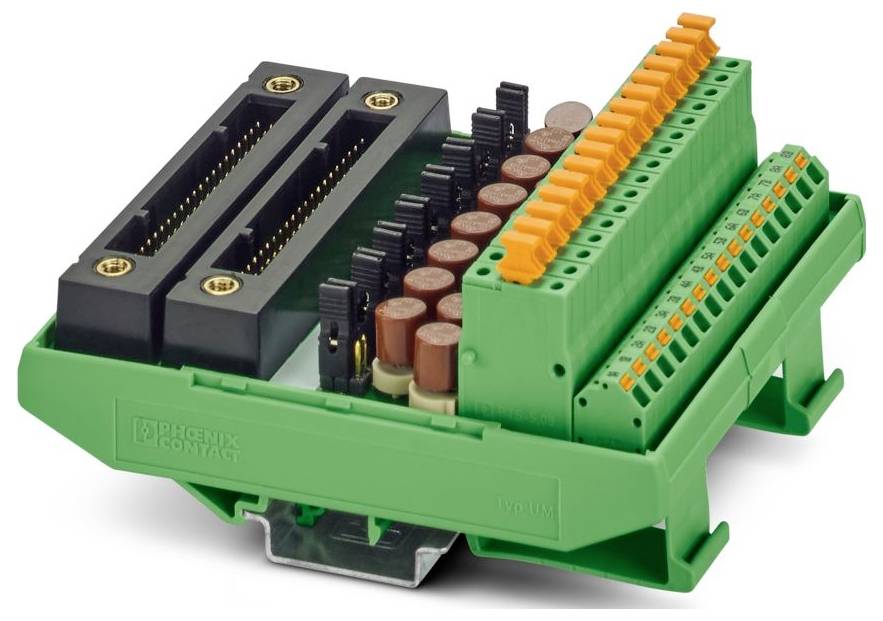

Passive module Phoenix Contact 2321936 FLKM-2KS40/PMT/SI/Z/YCS Content: 1 pc(s)
Product type
Passive module
Total no. of pins
40
Connection
Yokogawa KS
Push-in spring-loaded terminal
Mounting type
Carry rail mounting
AWG
24 - 16
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Print isolating plug
- Number of pins: 16
- Connection type: PCB terminal
- Tightening torque 0.5 Nm
- Conductor cross-section flexible: 0.2 mm² ... 1.5 mm²;0.25 mm² ... 1.5 mm² (wire-end sleeve without plastic sleeve);0.25 mm² ... 1.5 mm² (wire-end sleeve with plastic sleeve)
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 91.6 mm
- Height: 1.8" (111.8 mm)
- Depth: 55.4 mm
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Altitude: ≤ 2000 m.
- Standards/regulations: EN IEC 60664-1
- Note: Usable system cables: Phoenix Contact YUC40, Yokogawa KS1
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Stripped length: 10 mm
- Air and creepage distances: Air and creepage distances
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Contact spacing: 5.08 mm
- Fuse: 0.05 A TR5 (time-lag) (F1 ... F16)
- Operating mode 100 % ED
- Certificate: UKCA-compliant
- Article dimensions: Article dimensions
- Number of channels: 8
- Insulation: Functional insulation
- UKCA
- Rated insulation voltage 50 V
- Rated surge voltage 0.5 kV (1.2 / 50 μs)
- Protection type (installation location) ≤ IP54
- Status display available: No.
- Number of connections: 1
- Insulation properties: Air and creepage distances: Insulation properties: Air- and creepage distances
- Matching I/O-card: NFAI135;NFAI835
- Supported control: YOKOGAWA CS3000 CentumVP: Supported control: YOKOGAWA CS3000 CentumVP
- Supported control: YOKOGAWA STARDOM: Supported control: YOKOGAWA STARDOM
- OPERATING VOLTAGE (DC): ≤ 30 V DC
- Current (each branch): ≤ 0.05 A (TU = 23 °C)
- Connection 1 (control level): Connection 1 (control level)
- Connection 2 (field level): Connector 2 (field level)
- Protection class (module): IP00
- Connection 3 (field level): Connector 3 (field level)
- Product type
Passive module
- Total no. of pins
40
- Connection
Yokogawa KS
Push-in spring-loaded terminal
- Mounting type
Carry rail mounting
24 - 16
- Dim
(L x W x H) 55.4 x 91.6 x 111.8 mm
- Content
1 pc(s)
- Number of pins
40
- Width
91.6 mm
- Height
111.8 mm
- Length
55.4 mm
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
55.4 mm
- Test current
0.05 A
- Rated voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579113 Passive module Phoenix Contact 2321936 FLKM-2KS40/PMT/SI/Z/YCS Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579113 Passive module Phoenix Contact 2321936 FLKM-2KS40/PMT/SI/Z/YCS Content: 1 pc(s)
Description
VARIOFACE transfer module, for Yokogawa I/O modules AAI135, AAI835.
