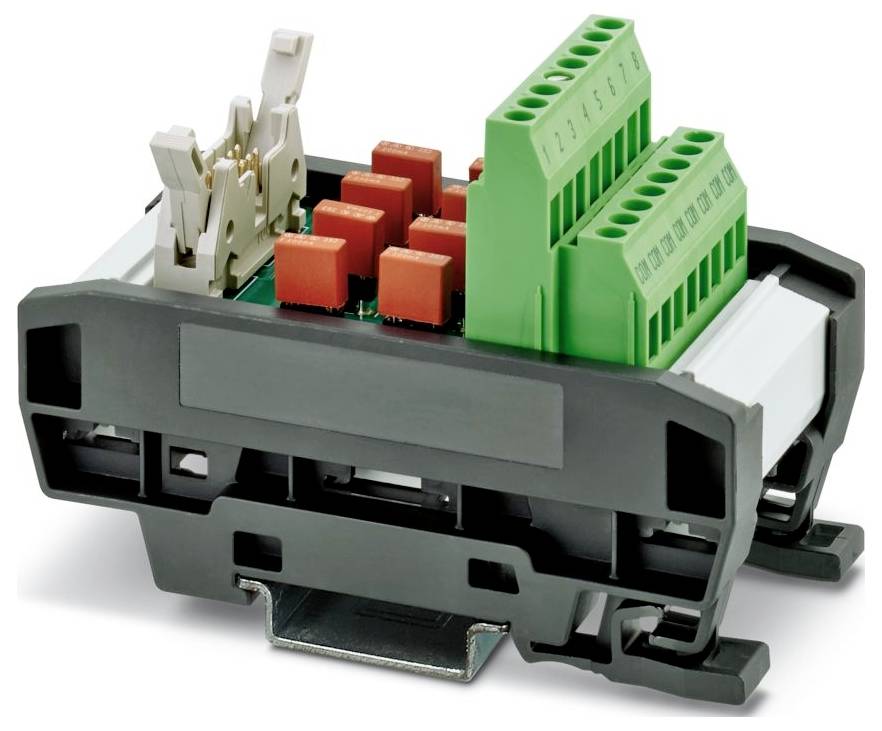

Passive module Phoenix Contact 2905959 UM-FLK10/DI/FU/ROC800 Content: 1 pc(s)
Product type
Passive module
Total no. of pins
16
Connection
IDC/FLK strip
Screws
Mounting type
Carry rail mounting
AWG
24 - 12
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: VARIOFACE
- Number of pins: 10
- NOMINAL VOLTAGE 24 V DC
- Connection type: IDC/FLK strip
- M3 screw thread
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 54 mm
- Height: 92.3 mm
- Depth: 65.5 mm
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 60 °C
- Mounting type: Rail mounting
- Stripped length: 7 mm
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Lead wire spacing 2.54 mm
- Connection according to standard: IEC / EN
- Article dimensions: Article dimensions
- Number of channels: 8
- Status display available: Yes, in the event of a fuse failure
- Number of connections: 1
- Insulation material type Case: Unreinforced polyamide PA
- Suitable I/O-card: ROC800 DI
- Field level: Field level
- Control level: Control level
- Supported control: EMERSON ROC800: Supported control: EMERSON ROC800
- Product type
Passive module
- Total no. of pins
16
- Connection
IDC/FLK strip
Screws
- Mounting type
Carry rail mounting
24 - 12
- Dim
(L x W x H) 65.5 x 54 x 92.3 mm
- Content
1 pc(s)
- Number of pins
16
- Width
54 mm
- Height
92.3 mm
- Length
65.5 mm
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
65.5 mm
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579913 Passive module Phoenix Contact 2905959 UM-FLK10/DI/FU/ROC800 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579913 Passive module Phoenix Contact 2905959 UM-FLK10/DI/FU/ROC800 Content: 1 pc(s)
Description
Fuse module, connector 1: Screw connection 16-pin, connector 2: IDC/FLK pin strip 1x 10-pin, number of channels: 8
