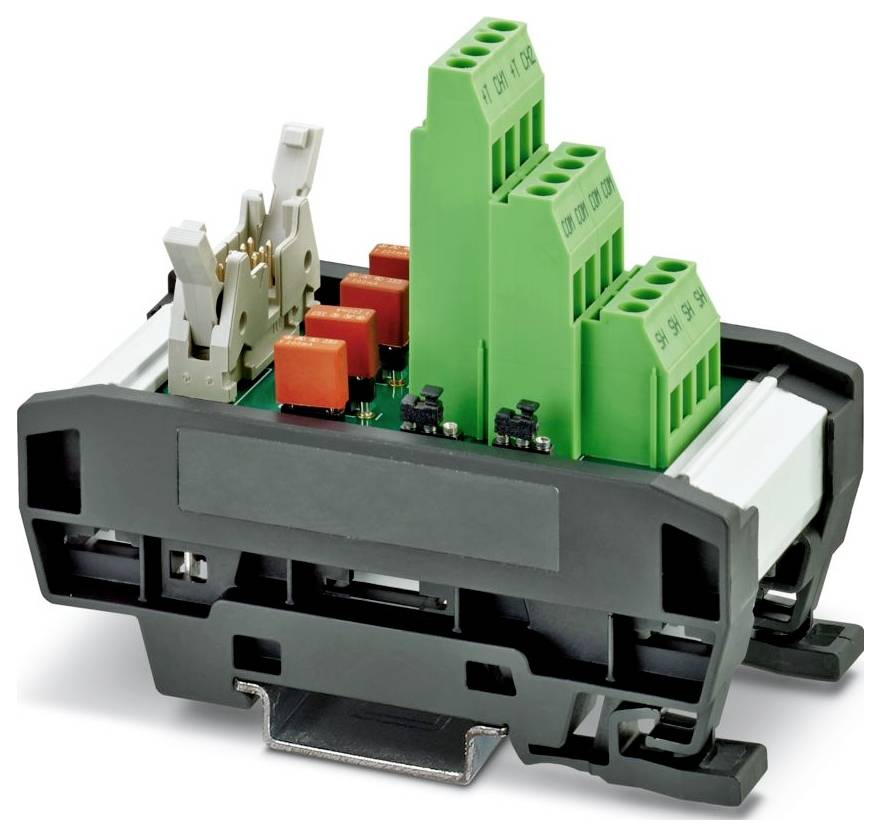

Passive module Phoenix Contact 2905962 UM-FLK10/PI/FU/ROC800 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Passive module
Total no. of pins
12
Connection
IDC/FLK strip
Screws
Mounting type
Carry rail mounting
AWG
24 - 12
Datasheet (PDF)
Technical specifications
- Product family: VARIOFACE
- Number of pins: 10
- NOMINAL VOLTAGE 24 V DC
- Connection type: IDC/FLK strip
- M3 screw thread
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 54 mm
- Height: 92.3 mm
- Depth: 78.9 mm
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 60 °C
- Mounting type: Rail mounting
- Stripped length: 7 mm
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Lead wire spacing 2.54 mm
- Connection according to standard: IEC / EN
- Article dimensions: Article dimensions
- Number of channels: 4
- Status display available: Yes, in the event of a fuse failure
- Number of connections: 1
- Insulation material type Case: Unreinforced polyamide PA
- Max. Current carrying capacity per branch: 200 mA (supplied with a 200 mA fuse, max. 1 A permissible)
- Suitable I/O-card ROC800 PI
- Field level: Field level
- Control level: Control level
- Supported control: EMERSON ROC800: Supported control: EMERSON ROC800
- Product type
Passive module
- Total no. of pins
12
- Connection
IDC/FLK strip
Screws
- Mounting type
Carry rail mounting
24 - 12
- Dim
(L x W x H) 78.9 x 54 x 92.3 mm
- Content
1 pc(s)
- Number of pins
12
- Width
54 mm
- Height
92.3 mm
- Length
78.9 mm
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
78.9 mm
- Test current
0.2 A
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579935 Passive module Phoenix Contact 2905962 UM-FLK10/PI/FU/ROC800 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579935 Passive module Phoenix Contact 2905962 UM-FLK10/PI/FU/ROC800 Content: 1 pc(s)
Description
Fuse module, connector 1: Screw connection 6-pin, connector 2: IDC/FLK pin strip 1x 10-pin, number of channels: 4
