Passive module Varioface-FLKM Phoenix Contact 2314642 FLKM-KS40/YCS Content: 1 pc(s)

Green electrical connector with screw terminals and a black insert. Suitable for industrial electronic connections.

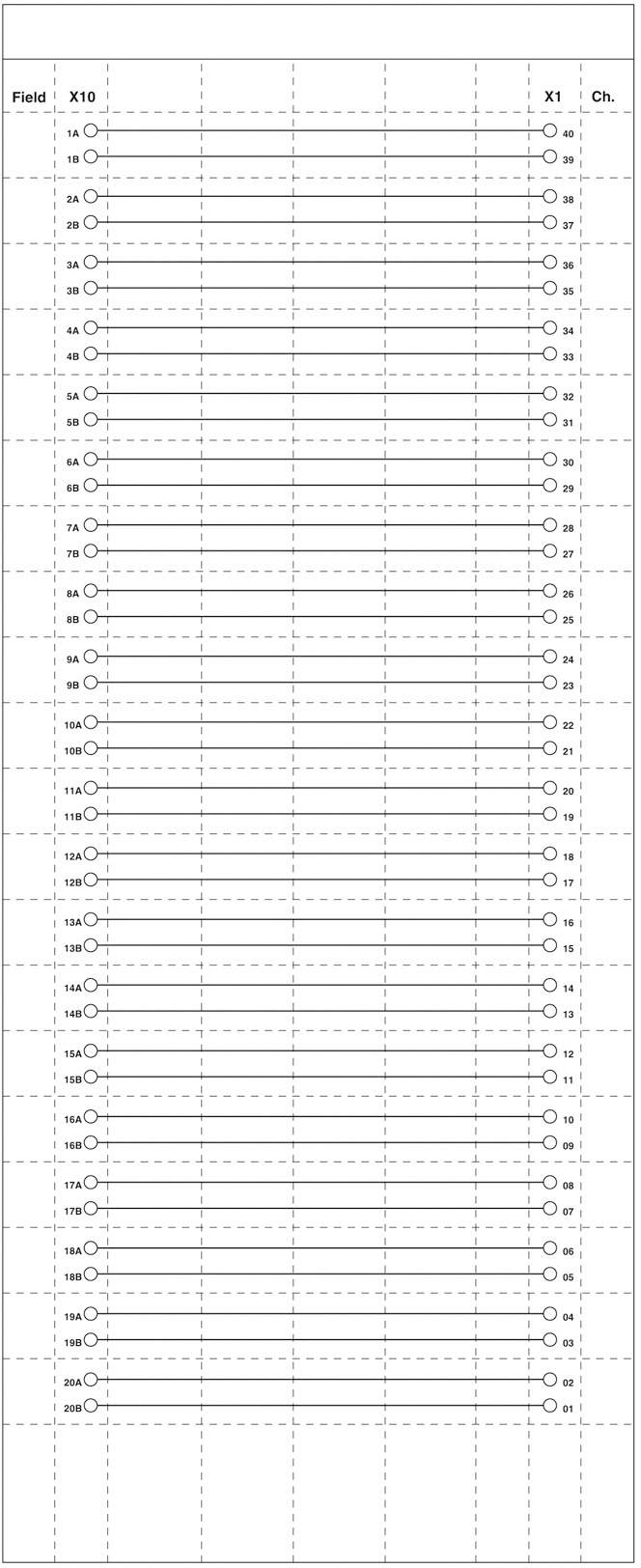

Form with multiple rows, each with fields for 'Field', 'X10', 'X2', 'Ch.', followed by empty checkboxes.

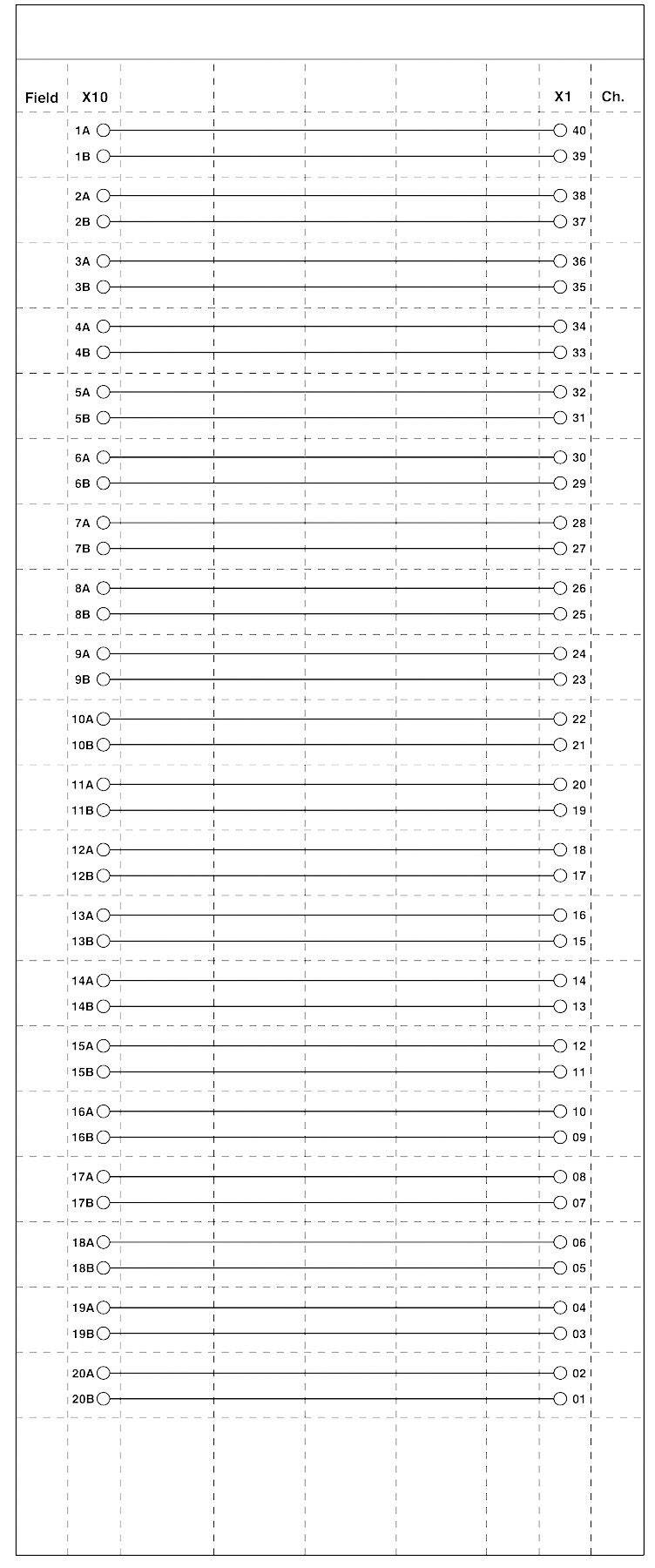

Diagram with vertical lines and circles, labelled with 'Field', 'X10', 'X1', 'Ch.', and numbered from 1 to 18 and 20 to 180.

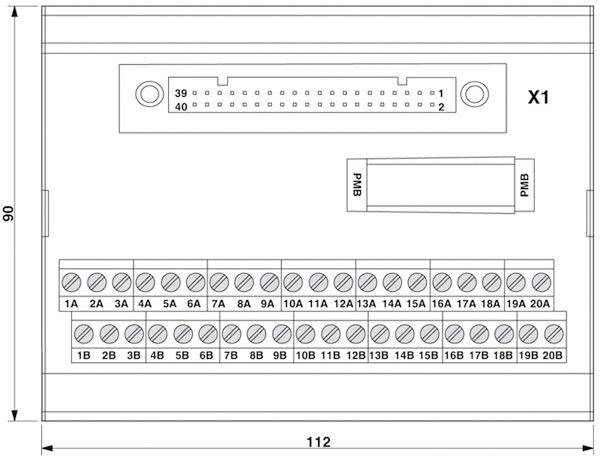

'Wiring diagram of an electrical junction box with terminal strips and plug connections, dimensions 90x112 mm.'
1/4
Image similar
Packaging type
Piece
Product type
Passive module
Total no. of pins
40
Connection
Punchdown block
AWG
24 - 12
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Max. Permissible current (separate power supply): 4 A.
  • All mounting positions permitted
  • Screw thread: M3
  • Protection class: IP00
  • NOMINAL VOLTAGE UN< 25 V AC / 30 V DC
  • Mounting instructions: Can be aligned without distance
  • Pollution level: 2
  • Overvoltage category II
Packaging type

Piece

Product type

Passive module

Total no. of pins

40

Connection

Punchdown block

24 - 12

Stripping length (max.)

8 mm

Dim

(L x W x H) 66 x 112 x 90 mm

Connector (field)

Screws

Connector (control)

Yokogawa KS

Operating current

1 A

Content

1 pc(s)

Number of pins

40

Width

112 mm

Height

90 mm

Length

66 mm

Series

Varioface-FLKM

Max. temperature

+65 °C

Min. temperature

-20 °C

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Cross section (flexible) (min.)

0.2 mm²

Cross section (inflexible) (min.)

0.2 mm²

Features

Any orientation

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2137695 Passive module Varioface-FLKM Phoenix Contact 2314642 FLKM-KS40/YCS Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2137695 Passive module Varioface-FLKM Phoenix Contact 2314642 FLKM-KS40/YCS Content: 1 pc(s)

Description

Universal transfer module with 40 connection terminals.
