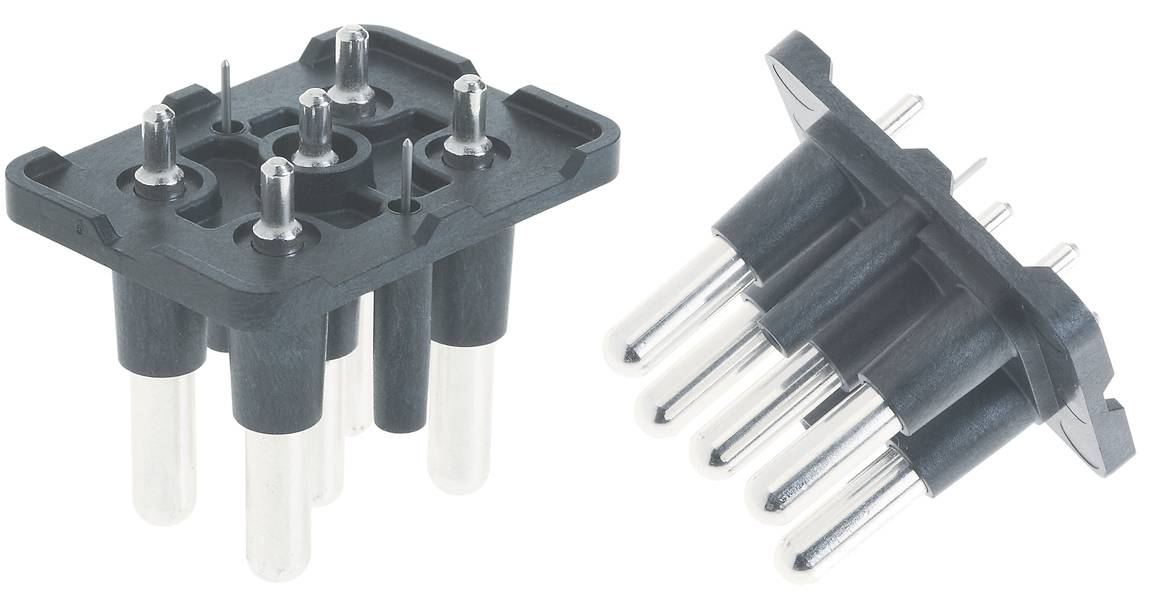

PCB adapter 09120069901 HARTING Content: 1 pc(s) PCB adapter
Packaging type
Piece
Product type
PCB adapter
Type
09 12 006 9901
Manufacturer part #
09120069901
Connection
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated current 30 A
- Temperature limit: -40 ... +125 °C
- Material application: Liquid-crystal polymer (LCP)
- Net weight: 16.3 g
- Dimensioning surge voltage: 6 kV
- Pollution level: 2
- Notes: For printed circuit boards up to 2.4 mm
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pin; socket
- Accessory type: PCB adapter
- Accessory description: In the HAN® Q 4/2
- Rated current (signal) 7.5 A
- Rated voltage conductor-earthing 400 V
- Rated voltage conductor-conductor: 690 V
- Rated voltage (signal) 250 V
- Rated surge voltage (signal) 4 kV
- Pollution level (signal): 2
- Packaging type
Piece
- Type
09 12 006 9901
- Product type
PCB adapter
- Manufacturer part #
09120069901
- Connection
Print
- Content
1 pc(s)
- Material
Polymer
- Suitable for
HQ
- Max. temperature
125 °C
Other
Pin
-40-125 °C
Other
6 kV
Other
Other
Liquid crystal polymer
Other
Other
30 A
Documents & Downloads
Datasheet
Datasheet 3008634 PCB adapter 09120069901 HARTING Content: 1 pc(s) PCB adapter
Datasheet 3008634 PCB adapter 09120069901 HARTING Content: 1 pc(s) PCB adapter
User & Safety Instructions
User & Safety Instructions 3008634 PCB adapter 09120069901 HARTING Content: 1 pc(s) PCB adapter
Description
PCB adapter, in HAN Q 4/2, rated current 30 A, liquid crystal polymer (LCP)
