PCE Instruments PCE-CTI 10 Clamp meter Calibrated to (DAkkS standards) Digital Data logger CAT IV 600 V
EAN:
Part number:
Item no:
Technical specifications
- Horizontal jaw diameter 38 mmVertical pliers diameter 63 mmProtection class IP65Insulation category CAT IV 600 V, CAT III 1000 V, CAT II 1500 V.Power supply rechargeable battery 7.4 V, 1200 mAh Li-ion batteryPlug charger: Europe, USA, England, ChinaBattery status indicator: AvailableAutomatic power off: Off, 15, 30 or 60 minutes
- Voltage reading range DC (min.)
0 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1500 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
1500 V
- A DC reading range (max.)
1000 A
- Amperage reading range AC (max.)
1000 A
- Temperature
-40 °C - +600 °C
- Interfaces
Bluetooth®
- Height
45 mm
- Width
100 mm
- Length
275 mm
- Weight
481 g
DAkkS standards
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
PCE-CTI 10

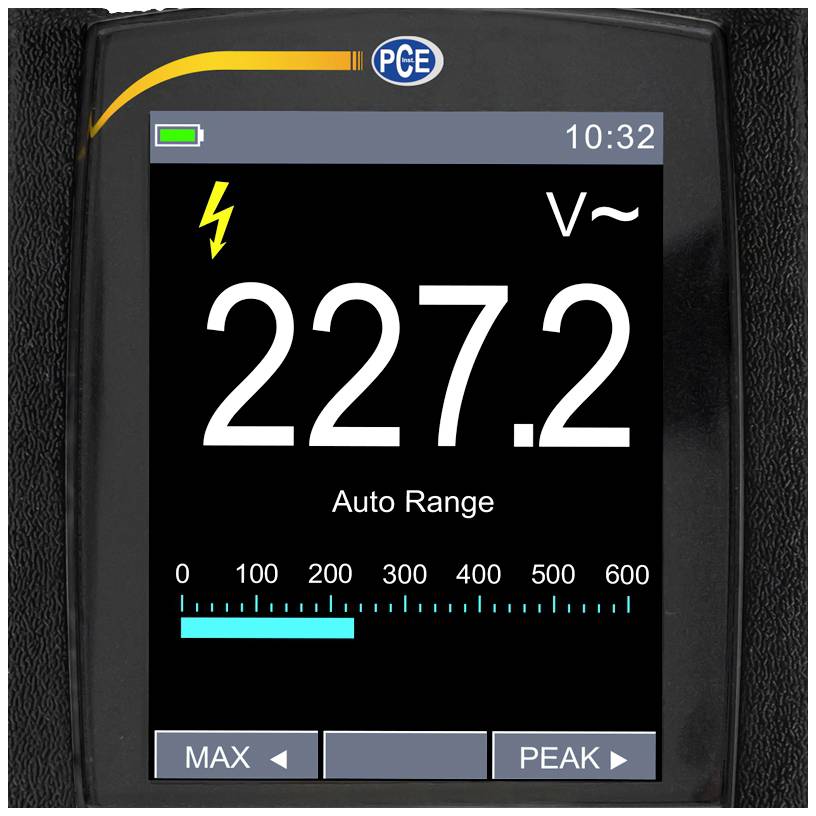

- Display
Digital
- Dim
(L x W x H) 275 x 100 x 45 mm
- Features
Data logger
- Interfaces
Bluetooth®

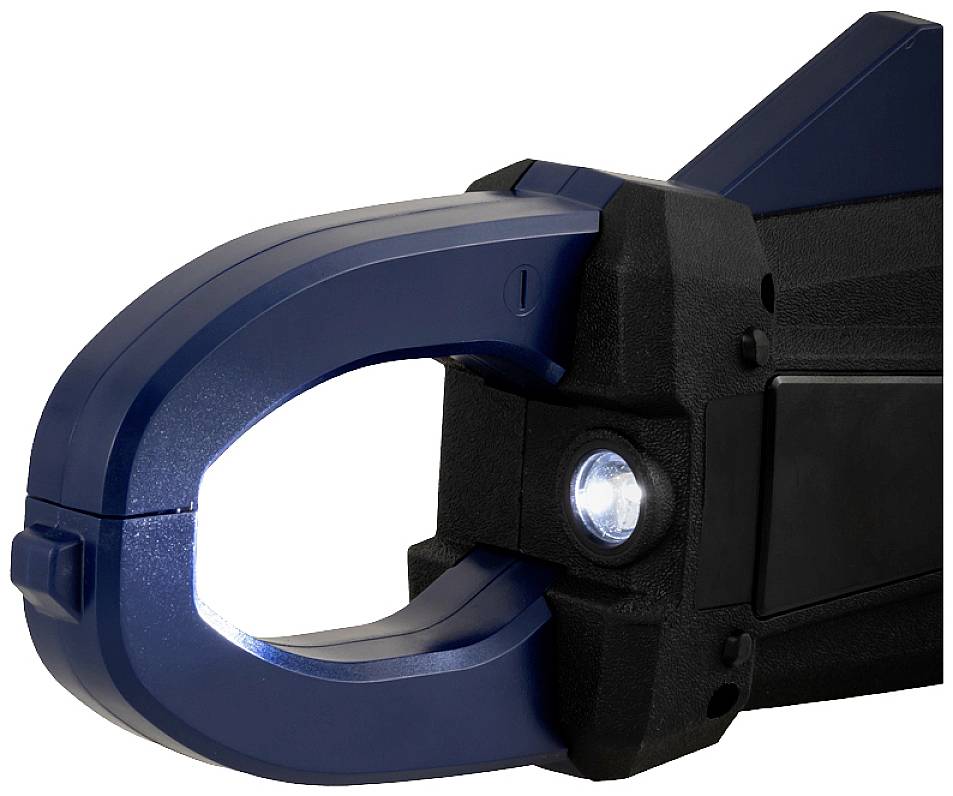

- Opening range of current clamps
63 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2743191 PCE Instruments PCE-CTI 10 Clamp meter Calibrated to (DAkkS standards) Digital Data logger CAT IV 600 V
Description
The ammeter is the ideal instrument for measuring voltages up to 1500 V AC/DC and currents of up to 1000 A AC/DC. The current measurement at the ammeter is done inductively. The supply line is inserted into the clamp-on ammeter by the ammeter for this purpose. This has the special advantage that the current can be measured during operation. This allows the ammeter to be used, for example, for maintenance work on a photovoltaic system. Photovoltaic systems consist of many different solar cells, which are connected in series. Here, the ammeter can be used to measure the individual currents of individual rows to limit possible errors. In addition to the normal voltage and current measurement, the ammeter can also measure the inrush current. Switch-on currents are currents that are particularly high when switched on. These currents occur when motors are started up for example ventilation systems or when a stadium lighting is switched on. This measurement with the ammeter is particularly important for the dimensioning of the supply line and fuses. Frequency converters are converters that output the voltage on the primary side with a changed frequency and amplitude on the secondary side. With the ammeter and the VFD measurement function, measurements can also be made here up to frequencies from 45 Hz to 1 kHz. In addition, the ammeter has a Bluetooth 4.0 interface. An Android and iOS device can be connected to this ammeter interface. The free "Meterbox Pro" APP allows you to display the values measured by the ammeter and save them for later analysis. With the data logging function, the ammeter can store all measured values in any set interval. After a measurement, the values can be displayed graphically via the ammeter. Each individual measurement point can also be read individually at the ammeter. The storage space of the ammeter has a size of 16 groups and a total storage space size of 100,000 measured values. On the ammeter, the measured value is saved with date and time.
