Name: PCE Instruments PCE-CTI 10-ICA Clamp meter Calibrated to (ISO standards) Digital Data logger, Vehicle testing, Water-jet
Brand: PCE Instruments
SKU: 3812485

Highlights & Details

PCE instruments clamp-on ammeter PCE-CTI 10-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE CTI 10 ICA
Free APP for Android and iOS
Measuring range 0 ... 1500 V AC/DC
Data-logging for up to 100,000 measured values
Switch-on current measurement
Also with LowZ voltage measurement
2.36 inch TFT Display
With voltage and temperature measurement
Optionally with calibration certificate
Incl. ISO calibration certificate

Technical specifications

DC voltage
Measuring range -600 ... +600 mV
Resolution0.1mV
Accuracy ±(0.8 % from MW. 8 digits)
OVERLOAD 1500 V DC / 1000 V AC
DC voltage
Measuring range -6 ... +6 V
Resolution 0.001 V
Accuracy ±(0.5% from MW. +5 digits)
DC voltage
Measuring range -60 ... +60 V
Resolution 0.01 V
Accuracy ±(0.5% of MW. +5 digits)
DC voltage
Measuring range -600 ... +600 V
Resolution 0.1 V
Accuracy ±(0.8% of MW. +5 digits)
DC voltage
Measuring range -1500 ... +1500 V
Resolution 1 V
Accuracy ±(0.8% of MW. +5 digits)
Direct current DC
Measuring range -60 ... +60 A
Resolution: 0.01 A
Accuracy ±(3.0 % from MW. 8 digits)
Direct current DC
Measuring range -600 ... +600 A
Resolution: 0.1 A
Accuracy ±(3.0 % from MW. 8 digits)
Direct current DC
Measuring range -1000 ... +1000 A
Resolution: 1 A
Accuracy ±(3.0 % from MW. 8 digits)
Capacitance
Measuring range 0 ... 60 nF
Resolution 0.01 nF
Accuracy ±(3.0 % from MW. 20 digits)
Capacitance
Measuring range 0 ... 600 nF
Resolution 0.1 nF
Accuracy ±(3.0 % from MW. 8 digits)
Capacitance
Measuring range 0 ... 6 µF
Resolution 0.001 µF
Accuracy ±(3.0 % from MW. + 8 digits
Capacitance
Measuring range 0 ... 60 µF
Resolution 0.01 µF
Accuracy ±(3.0 % from MW. 8 digits)
Capacitance
Measuring range 0 ... 600 µF
Resolution 0.1 µF
Accuracy ±(3.0 % from MW. 8 digits)
Capacitance
Measuring range 0 ... 6000 µF
Resolution 1 µF
Accuracy ±(3.5 % from MW. 20 digits)
Capacitance
Measuring range 0 ... 60 mF
Resolution 0.01 mF
Accuracy only as reference
Capacitance
Measuring range 0 ... 600 mF
Resolution 0.1 mF
Accuracy only as reference
Alternating current (AC)
Measuring range 0 ... 60 A
Resolution: 0.01 A
Accuracy ±(2.5 % from MW. +5 digits)
Overload 1000 A AC
Frequency range 50 ... 60 Hz
Alternating current (AC)
Measuring range 0 ... 600 A
Resolution: 0.1 A
Accuracy ±(2.5 % from MW. +5 digits)
Frequency range 50 ... 60 Hz
Alternating current (AC)
Measuring range 0 ... 1000 A
Resolution: 1 A
Accuracy ±(2.5 % from MW. +5 digits)
Frequency range 50 ... 60 Hz
Resistor
Measuring range 0 ... 600 Ω
Resolution 0.1 Ω
Accuracy ±(1.0 % from MW. 10 digits)
Resistor
Measuring range 0 ... 6 kΩ
Resolution 0.001 kΩ
Accuracy ±(0.8 % from MW. +5 digits)
Resistor
Measuring range 0 ... 60 kΩ
Resolution 0.01 kΩ
Accuracy ±(0.8 % from MW. +5 digits)
Resistor
Measuring range 0 ... 600 kΩ
Resolution 0.1 kΩ
Accuracy ±(0.8 % from MW. +5 digits)
Resistor
Measuring range 0 ... 6 MΩ
Resolution 0.001 MΩ
Accuracy ±(0.8 % from MW. +5 digits)
Resistor
Measuring range 0 ... 60 MΩ
Resolution 0.01 MΩ
Accuracy ±(2.5 % from MW. 10 digits)
Frequency
Measuring range 0 ... 60 Hz
Resolution 0.01 Hz
Accuracy ±(0.2 % from MW. +5 digits)
Frequency
Measuring range 0 ... 600 Hz
Resolution 0.1 Hz
Accuracy ±(0.2 % from MW. +5 digits)
Frequency
Measuring range 0 ... 6 kHz
Resolution 0.001 kHz
Accuracy ±(0.2 % from MW. +5 digits)
Frequency
Measuring range 0 ... 60 kHz
Resolution 0.01 kHz
Accuracy ±(0.2 % from MW. +5 digits)
Frequency
Measuring range 0 ... 600 kHz
Resolution 0.1 kHz
Accuracy ±(0.2 % from MW. +5 digits)
Frequency
Measuring range 0 ... 6 MHz
Resolution 0.001 MHz
Accuracy ±(0.2 % from MW. +5 digits)
Temperature
Measuring range -40 ... +600 °C
Resolution 0.1 °C
Accuracy ±(1.5 % from MW. +3 °C
Temperature
Measuring range 600 ... 1000 °C
Resolution 1 °C
Accuracy ±(1.5 % from MW. +3 °C
Temperature
Measuring range -40 ... +600 °F
Resolution 0.1 °F
Accuracy ±(1.5 % from MW. +5.4 °F)
Temperature
Measuring range 600 ... 1800 °F
Resolution 1 °F
Accuracy ±(1.5 % from MW. +5.4 °F)
Temperature
Measuring range 245 ... 600 K
Resolution: 0.1 K
Accuracy ±(1.5 % +3K)
Temperature
Measuring range 600 ... 1273 K
Resolution 1 K
Accuracy ±(1.5 % +3K)
General Technical Data
Frequency 45 ... 1000 Hz
Display type TFT graphic display
Display size 2.36 inches
Storage medium Internal memory
Memory capacity: 1600000 values
Interface wireless
Maximum cable diameter 45 mm
Safety standard CAT IV 600 V, CAT III 1000V, CAT II 1500 V
Dimensions of pliers diameter horizontal 38 mm. Pliers diameter vertical 63 mm. Jaw opening 45 mm
Diode test test current:

Voltage reading range DC (min.): -600 mV

Product type: Clamp meter

Voltage DC reading range (max.): 1500 mV

V AC reading range (min.): 0 V

V AC reading range (max.): 6000 V

Amperage reading range DC (min.): 0 A

A DC reading range (max.): 1000 A

A AC reading range (min.): 100 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: -0 - +60 MΩ

Frequency reading range: 0 kHz

Basic accuracy: 0.5 %

Measurement type (details): True RMS

Frequency range: -0 - +60 Hz

Interfaces: Bluetooth®

Power supply (details): 7.4 V

Height: 275 mm

Width: 45 mm

Length: 100 mm

Weight: 481 g

: ISO standards

Reading category: CAT III 1000 V
CAT IV 600 V
CAT II 1500 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: PCE-CTI 10-ICA

Display: Digital

Display (counts): 9999

Dim: (L x W x H) 100 x 45 x 275 mm

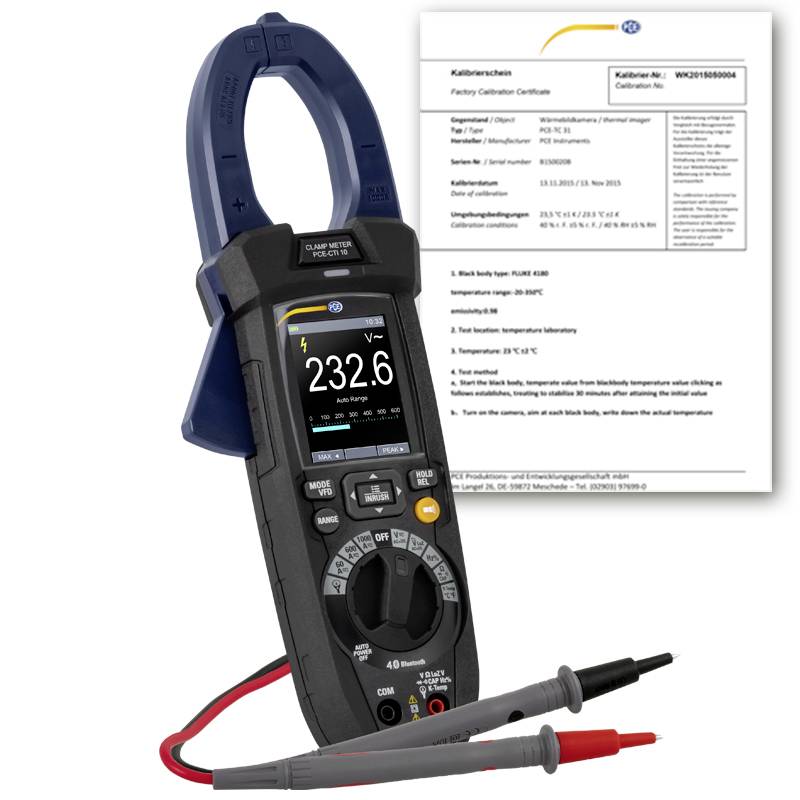

Calibration service: Incl. ISO calibration certificate

Temperature reading range (max.): 1000 °C

Temperature reading range (min.): -40 °C

Features: Data logger
Vehicle testing
Water-jet proof (IP65)
incl. voltmeter

Interfaces: Bluetooth®

: IP65 (main unit)

Opening range of current clamps: 45 mm

Documents & Downloads

Datasheet

Datasheet 3812485 PCE Instruments PCE-CTI 10-ICA Clamp meter Calibrated to (ISO standards) Digital Data logger, Vehicle testing, Water-jet

User & Safety Instructions

User & Safety Instructions 3812485 PCE Instruments PCE-CTI 10-ICA Clamp meter Calibrated to (ISO standards) Digital Data logger, Vehicle testing, Water-jet

Description

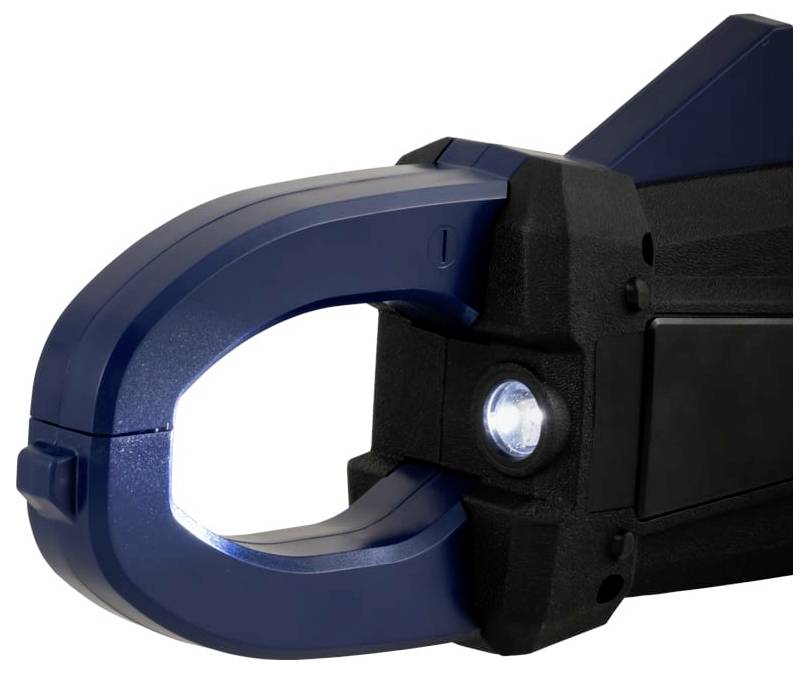

The clamp-on ammeter is the ideal instrument for measuring voltages up to 1500 V AC/DC and currents of up to 1000 A AC/DC. The current measurement in the clamp meter is done inductively. The supply line is inserted in the clamp-on ammeter for this purpose. This has the special advantage that the current can be measured during operation. This allows the current clamp to be used for maintenance work on photovoltaic systems, for example. Photovoltaic systems consist of many different solar cells, which are connected in series. Here, the current clamp can be used to measure the individual currents of individual rows to limit possible errors.

In addition to normal voltage and current measurements, the clamp-on ammeter can also measure the inrush current. Switch-on currents are currents that are particularly high when switched on. These currents occur when motors are started up for example ventilation systems or when a stadium lighting is switched on. This measurement with the clamp-on ammeter is particularly important for the dimensioning of the supply line and fuses. Frequency converters are converters that output the voltage on the primary side with a changed frequency and amplitude on the secondary side. With the clamp-on ammeter and the VFD measurement function, measurements can be made up to a frequency of 45 Hz ... 1 kHz.

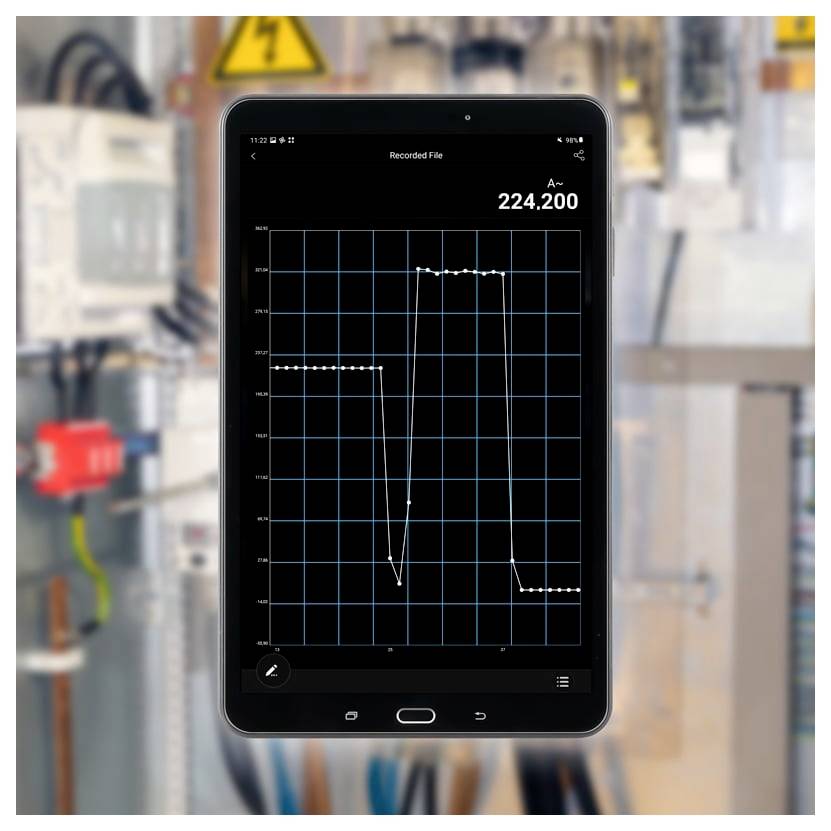

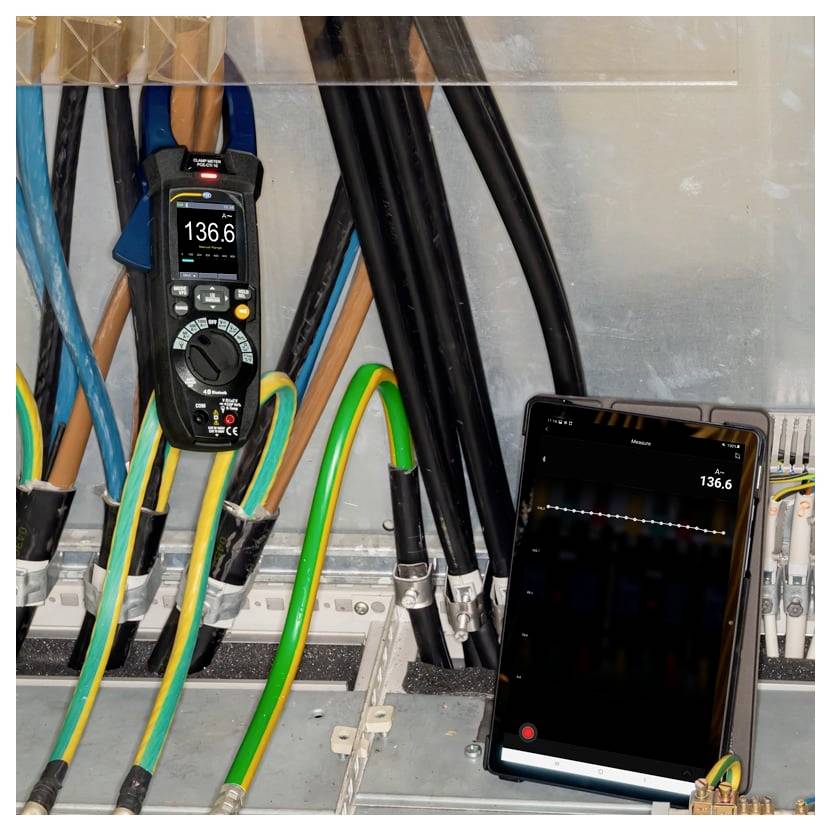

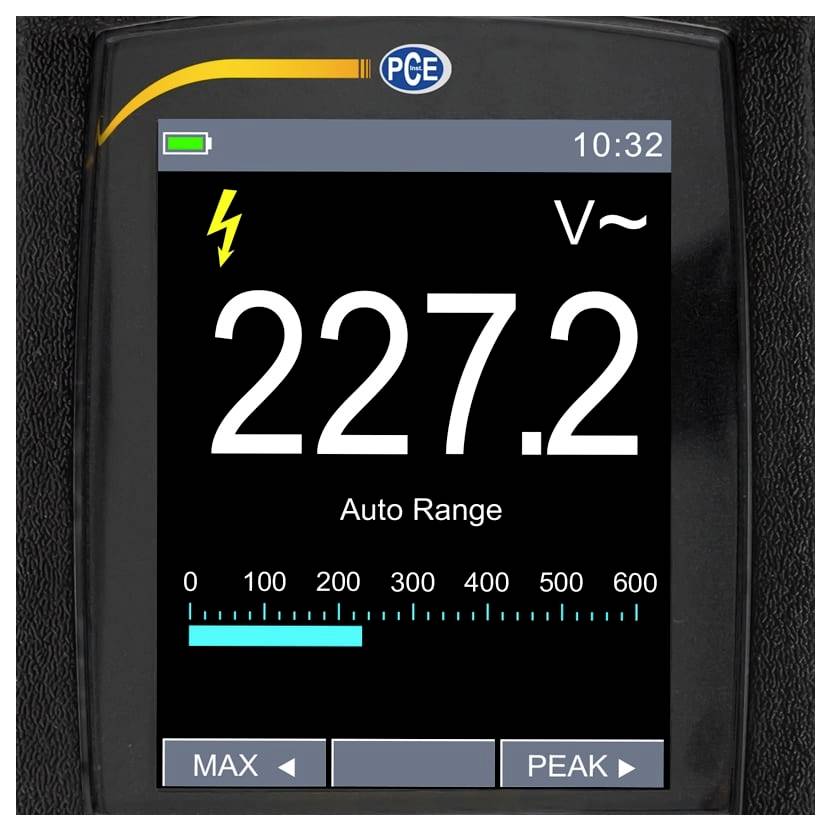

In addition, the clamp-on ammeter has a Bluetooth 4.0 interface. Using this clip-on ammeter interface, you can connect to an Android or iOS device. The free "Meterbox Pro" APP shows the values measured by the clamp-on ammeter and stores them for later analysis.

With the data logging function, the clamp-on ammeter can store all measured values in any set interval. After a measurement, the values can be displayed graphically using the current probe. Each individual measuring point can also be read individually on the clamp-on ammeter. The storage space of the clamp meter is 16 groups and a total storage space of 100,000 measured values. In the clamp meter, the measured value is saved with date and time.

Extended the clamp-on ammeter can be fitted with an optional clamp-on ammeter. The additional clamp-on ammeter to the clamp-on ammeter is flexible and can be adapted to the measurement task at hand. With the extended clip-on ammeter to the clamp-on ammeter, a current measurement of up to 3000 A AC can be carried out. The flexible current probe is connected to the voltage input of the current probe. The current probe converts the voltage value into a usable current value and displays it on the display.

Because of its many different functions and the high measurement range, the clamp-on ammeter can be used for testing photovoltaic systems, water and wind power plants or for the installation of non-stationary electrical machines. Optionally, the current probe can be equipped with an ISO calibration certificate.

This text is machine translated.
