Name: PCE Instruments PCE-DC 50-ICA Clamp meter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V, CAT II 10
Brand: PCE Instruments
SKU: 3812491

Highlights & Details

PCE instruments clip-on ammeter PCE-DC 50-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-DC 50-ica
Sampling rate 2 Hz
Cover on the measuring sockets
AC A and AC V measurement
Wireless interface
Cable diameter max. 48 mm

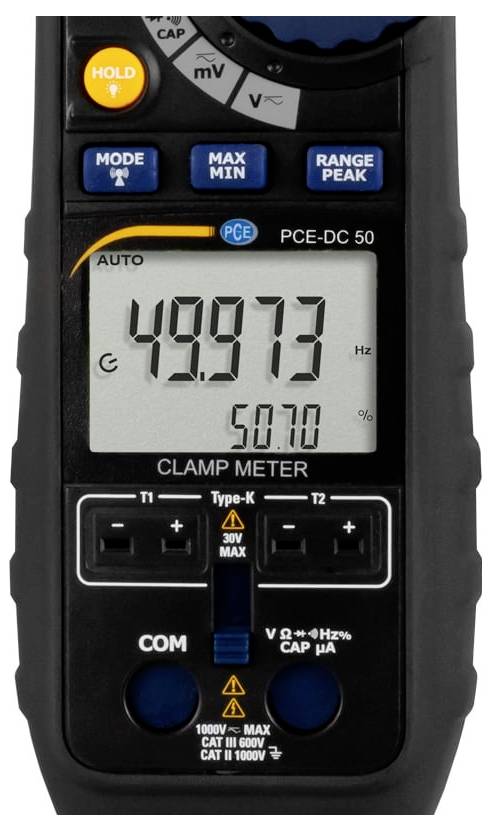

Temperature measurement over 2 thermo elements
Automatic power off

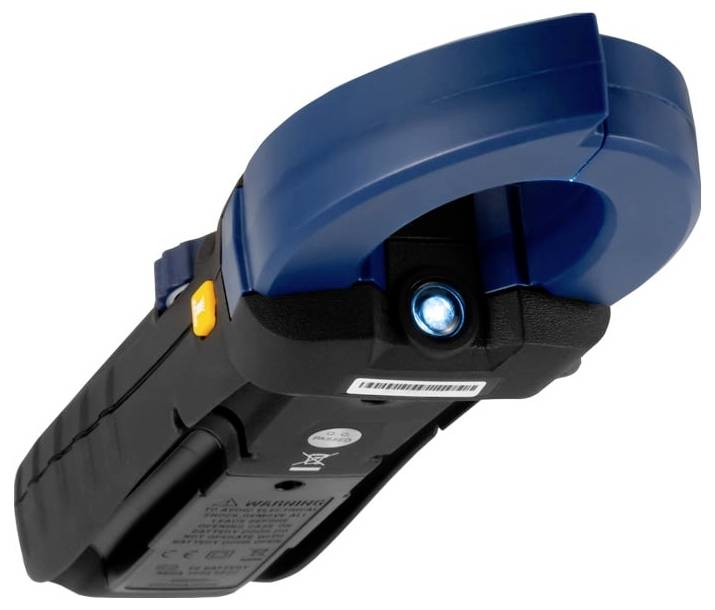

Contact-free voltage detection

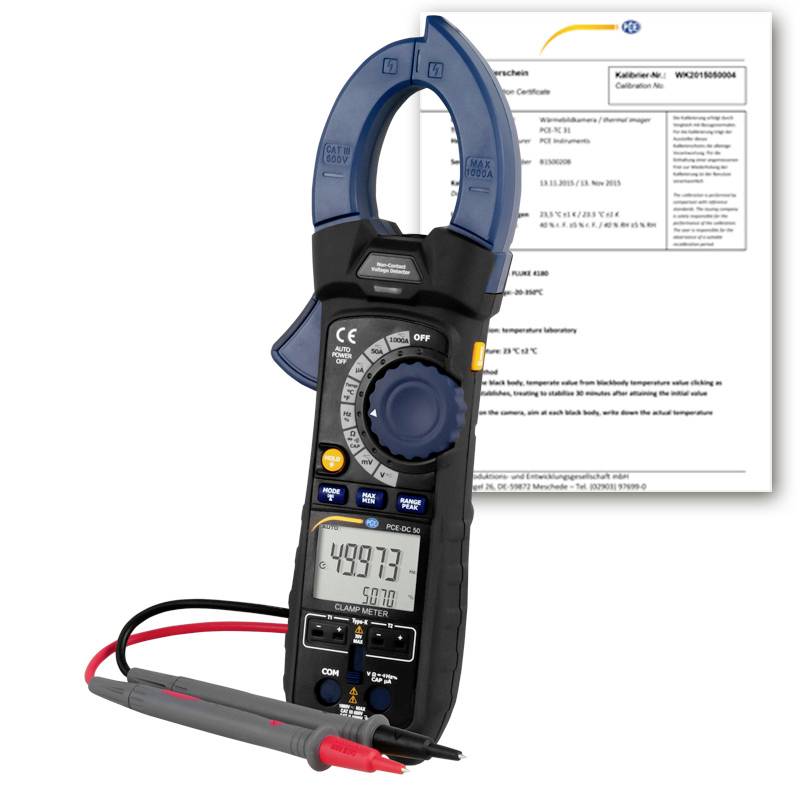

Incl. ISO calibration certificate

Technical specifications

DC voltage
Measuring range 0 ... 500 mV
Resolution 0.01 mV
Accuracy ±(0.1 % from MW. 8 digits)
DC voltage
Measuring range 0 ... 5 V
Resolution 0.0001 V
Accuracy ±( 0.1 % of mw. 40 – +4 digits)
DC voltage
Measuring range 0 ... 50 V
Resolution 0.001 V
Accuracy ±( 0.1 % of mw. 40 – +4 digits)
DC voltage
Measuring range 0 ... 500 V
Resolution 0.01 V
Accuracy ±( 0.1 % of mw. 40 – +4 digits)
DC voltage
Measuring range 0 ... 600 V
Resolution 0.1 V
Accuracy ±( 0.5 % of mw. 40 – +4 digits)
Direct current DC
Measuring range 0 ... 500 µA
Resolution 0.01 µA
Accuracy ±(1 % from MW. +6 digits)
Direct current DC
Measuring range 0 ... 5000 µA
Resolution 0.1 µA
Accuracy ±(1 % from MW. +6 digits)
Direct current DC
Measuring range 0 ... 50 A
Resolution: 0.01 A
Accuracy ±(2.5 % from MW. +5 digits)
Direct current DC
Measuring range 0 ... 1000 A
Resolution: 0.1 A
Accuracy ±(2.5% +30 digits)
Capacitance
Measuring range 0 ... 500 nF
Resolution 0.01 nF
Accuracy ±(3.5 % from MW. 40 digits)
Capacitance
Measuring range 0 ... 5000 nF
Resolution 0.1 nF
Accuracy ±(3.5 % from MW. 10 digits)
Capacitance
Measuring range 0 ... 50 µF
Resolution 0.001 µF
Accuracy ±(3.5 % from MW. 10 digits)
Capacitance
Measuring range 0 ... 500 µF
Resolution 0.01 µF
Accuracy ±(3.5 % from MW. 10 digits)
Capacitance
Measuring range 0 ... 5 mF
Resolution 0.0001 mF
Accuracy ±(5 % from MW. 10 digits)
Alternating voltage AC
Measuring range 0 ... 500 mV
Resolution 0.01 mV
Accuracy ±( 0.8% + 9 digits)
Frequency range 50 ... 1000 Hz
Alternating voltage AC
Measuring range 0 ... 5 V
Resolution 0.0001 V
Accuracy ±(1 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating voltage AC
Measuring range 0 ... 50 V
Resolution 0.001 V
Accuracy ±(1 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating voltage AC
Measuring range 0 ... 500 V
Resolution 0.01 V
Accuracy ±(1 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating voltage AC
Measuring range 0 ... 600 V
Resolution 0.1 V
Accuracy ±(1 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating current (AC)
Measuring range 0 ... 500 µA
Resolution 0.01 µA
Accuracy ±(1.5 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating current (AC)
Measuring range 0 ... 5000 µA
Resolution 0.1 µA
Accuracy ±(1.5 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating current (AC)
Measuring range 0 ... 50 A
Resolution: 0.01 A
Accuracy ±(2.5 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Alternating current (AC)
Measuring range 0 ... 1000 A
Resolution: 0.1 A
Accuracy ±(2.8 % from MW. 30 digits)
Frequency range 50 ... 1000 Hz
Resistor
Measuring range 0 ... 500 Ω
Resolution 0.01 Ω
Accuracy ±(1 % from MW. 40 – +9 digits)
Resistor
Measuring range 0 ... 5 kΩ
Resolution 0.0001 kΩ
Accuracy ±(1 % from MW. +5 digits)
Resistor
Measuring range 0 ... 50 kΩ
Resolution 0.001 kΩ
Accuracy ±(1 % from MW. +5 digits)
Resistor
Measuring range 0 ... 500 kΩ
Resolution 0.01 kΩ
Accuracy ±(1 % from MW. +5 digits)
Resistor
Measuring range 0 ... 5 MΩ
Resolution 0.0001 MΩ
Accuracy ±(2 % from MW. 10 digits)
Resistor
Measuring range 0 ... 50 MΩ
Resolution 0.001 MΩ
Accuracy ±(3 % from MW. 10 digits)
Frequency
Measuring range 0 ... 50 Hz
Resolution 0.001 Hz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 500 Hz
Resolution 0.01 Hz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 5 kHz
Resolution 0.0001 kHz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 50 kHz
Resolution 0.001 kHz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 500 kHz
Resolution 0.01 kHz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 5 MHz
Resolution 0.0001 MHz
Accuracy ±(0.3 % from MW. + 2 digits)
Frequency
Measuring range 0 ... 10 MHz
Resolution 0.001 kHz
Accuracy ±(0.3 % from MW. + 2 digits)
Temperature
Measuring range -100 ... +1000 °C
Resolution 0.1 °C
Accuracy ±(1 % from MW. +2.5 °C)
Temperature
Measuring range -148 ... +1832 °F
Resolution 0.18 °F
Accuracy ±(1 % from measurement value + 4.5 °F)
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Frequency 10 ... 10000 Hz
Display type LCD with lighting
Display size 1.8 inches
Measurement rate 2 Hz
Interface wireless
Standard(s) IEC 1010-1, EN 61010-1
Maximum cable diameter 48 mm
Automatically switches off approx. 30 min.
Bandwidth 50 ... 400 kHz
Safety standard CAT III 600 V
Fuse(s) 500 mA ceramic quick-blow
Diode test 0.3 mA / 2.8 V DC
Menu language English (US), English (GB)
Protection class (device) IP20
Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
Capacity 640 mAh
Operating conditions 5 ... 40 °C , 0 ... 80 % r.F.
Storage conditions -20 ... 60 °C , 0 ... 80 % r.F.
Dimensions ( L x W x H ) 230 x 76 x 40 mm
Weighs 315 g.

Voltage reading range DC (min.): 500 mV

Product type: Clamp meter

Voltage DC reading range (max.): 600 V

V AC reading range (min.): 500 mV

V AC reading range (max.): 600 V

Amperage reading range DC (min.): 500 µA

A DC reading range (max.): 1000 A

A AC reading range (min.): 500 µA

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 0 MΩ

Reading range - capacity: 0 - 5 mF

Frequency reading range: 0 MHz

Temperature: -100 °C - 1000 °C

Basic accuracy: 1 %

Measurement type (details): True RMS

Frequency range: 10 kHz

Interfaces: Bluetooth®

Power supply (details): 9 V

Height: 76 mm

Width: 40 mm

Length: 230 mm

Weight: 315 g

: ISO standards

Reading category: CAT III 600 V
CAT II 1000 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: PCE-DC 50-ICA

Display: Digital

Dim: (L x W x H) 230 x 40 x 76 mm

Calibration service: Incl. ISO calibration certificate

Temperature reading range (max.): 1000 °C

Temperature reading range (min.): 0 °C

Reading frequency: 10 kHz

Features: ISO calibration

Interfaces: Bluetooth®

: IP20

Opening range of current clamps: 48 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812491 PCE Instruments PCE-DC 50-ICA Clamp meter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V, CAT II 10

User & Safety Instructions

User & Safety Instructions 3812491 PCE Instruments PCE-DC 50-ICA Clamp meter Calibrated to (ISO standards) Digital ISO calibration CAT III 600 V, CAT II 10

Description

The clamp-on ammeter is a measurement device for measuring currents of up to 1000 A AC/DC. In addition to current measurement, the clamp meter can also measure voltage, frequency, duty cycle, resistance, continuity test, Measure and check capacitors and diodes. The wrap diameter of the clamp meter is 48 mm. This also enables measurements on cables with a large cross-section.

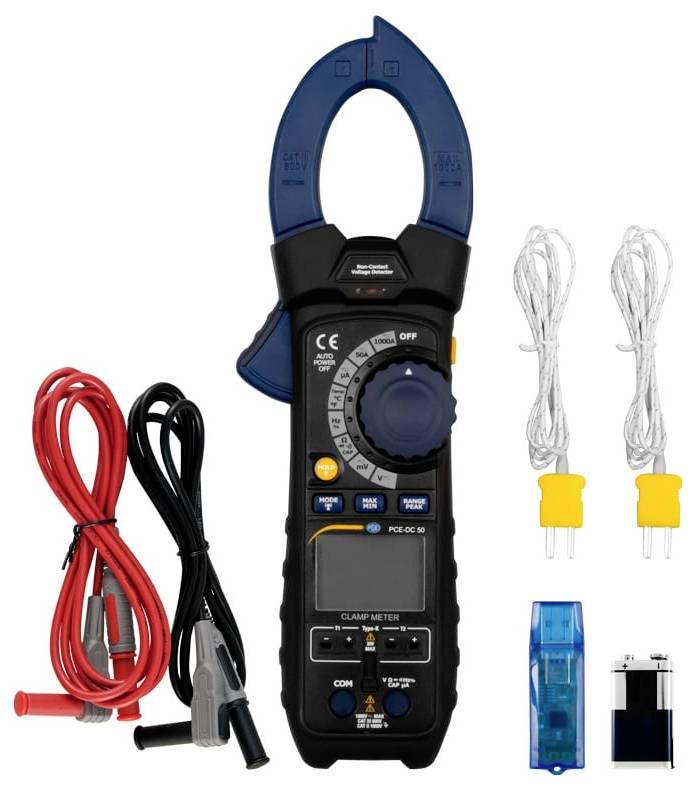

The NCVD function allows the clamp meter to be used to test whether a voltage is pending on a line. This clamp meter has an integrated wireless interface This wireless interface can be used to connect the clamp meter to your PC or smartphone. Thus the measured data of the clip-on ammeter can be saved and analyzed. If the PC does not have a wireless interface to connect the clamp meter, a suitable wireless adapter is already included in the delivery. A further special feature of the clamp-on ammeter is the measurement of temperatures.

The clamp meter can be connected to any two type K thermocouples and read out at the same time. Here temperatures of up to 1000 °C can be measured. The casing of the clip-on ammeter is made of a robust plastic, which is additionally covered with a rubber coating. Thanks to the additional rubber coating, the clamp meter can also withstand impacts without any problems.
