Name: PCE Instruments PCE-EMD 5 PCE-EMD 5 Panel meter 0 up to 50 °C 0 up to 99.9 RH
Brand: PCE Instruments
SKU: 2583862
Availability: BackOrder

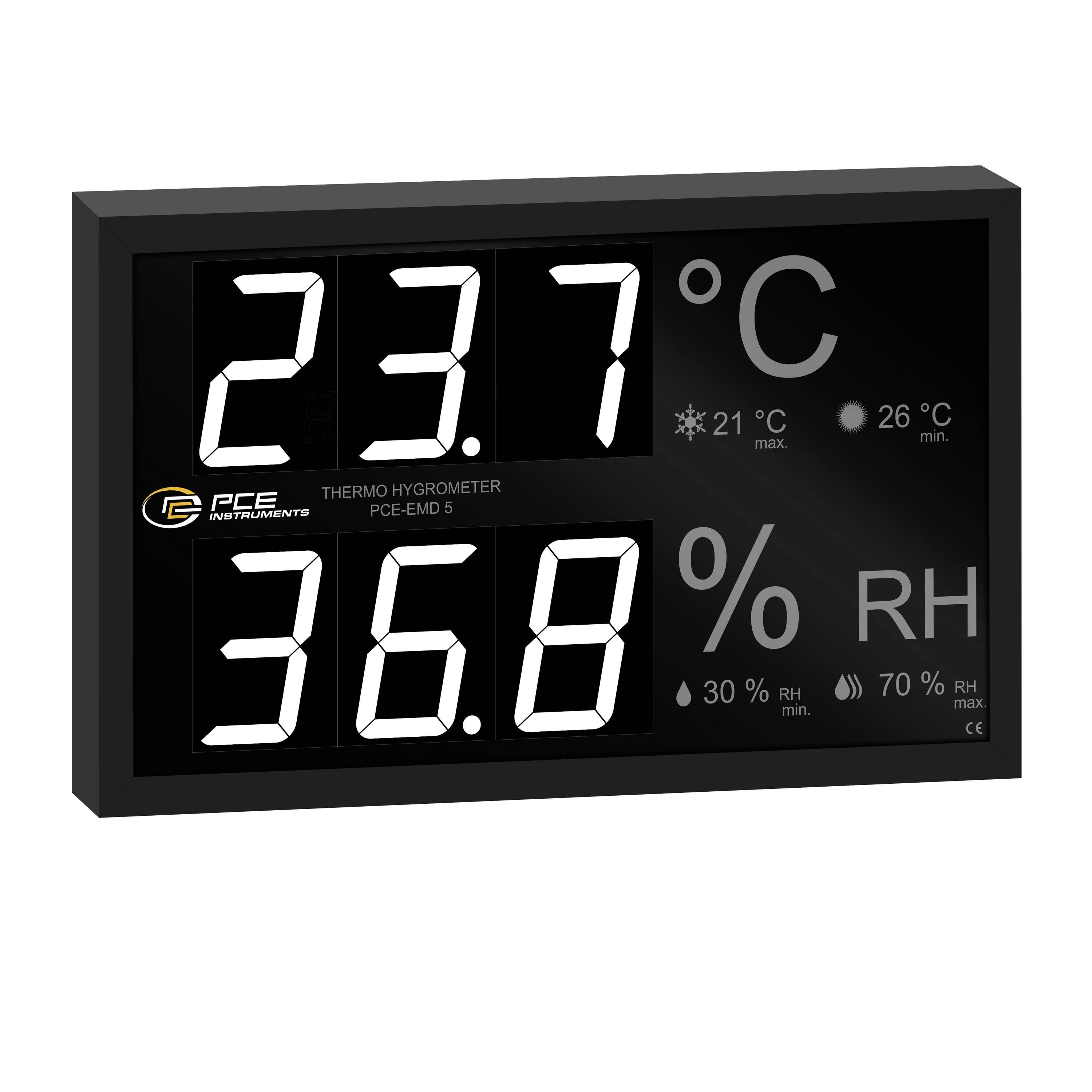

Digital thermo-hygrometer display showing 23.7°C temperature and 36.8% relative humidity, with min/max indicators.<br>

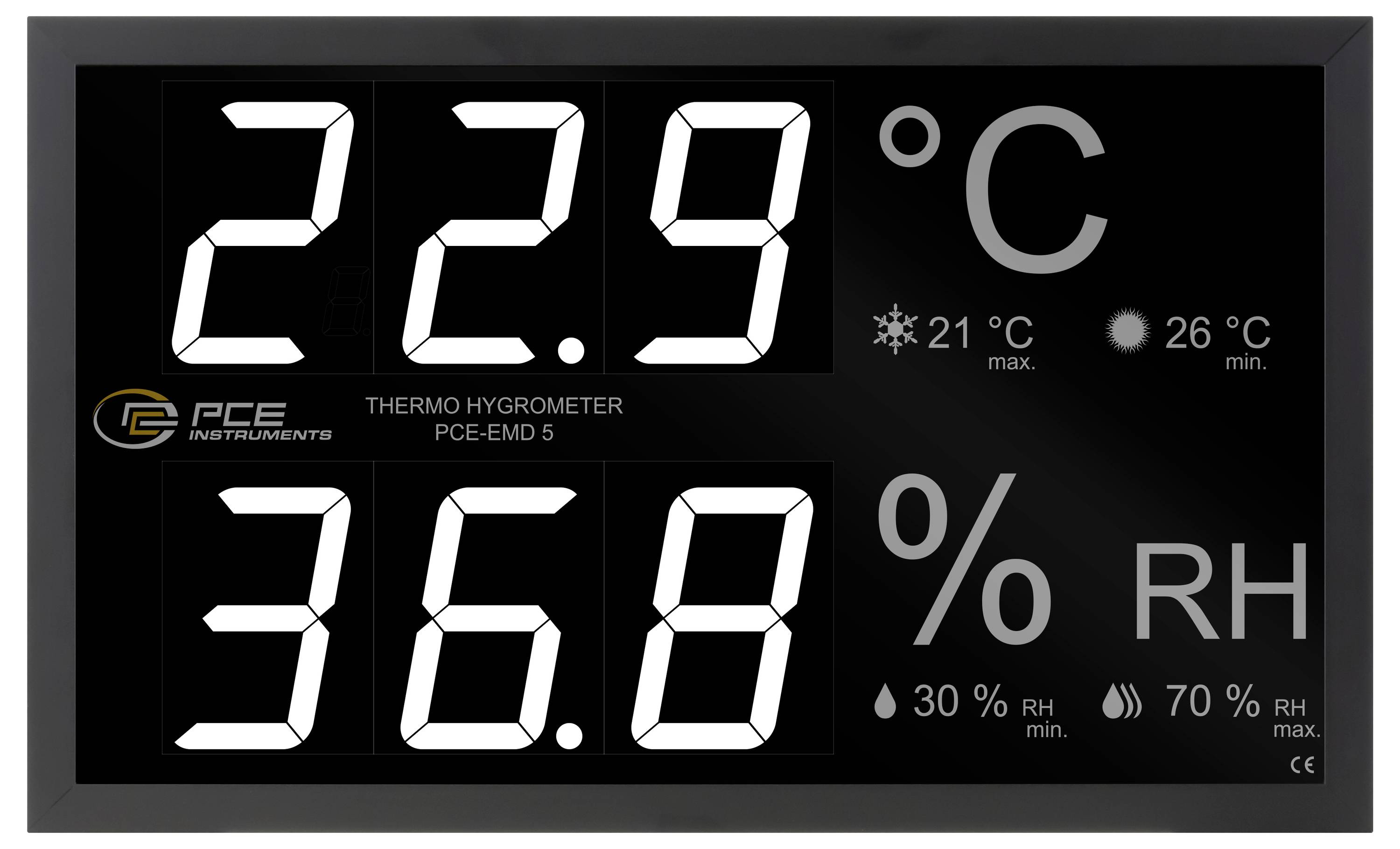

Digital thermo-hygrometer display showing 22.9°C and 36.8% RH, with max 26°C, min 21°C, and humidity range notes.

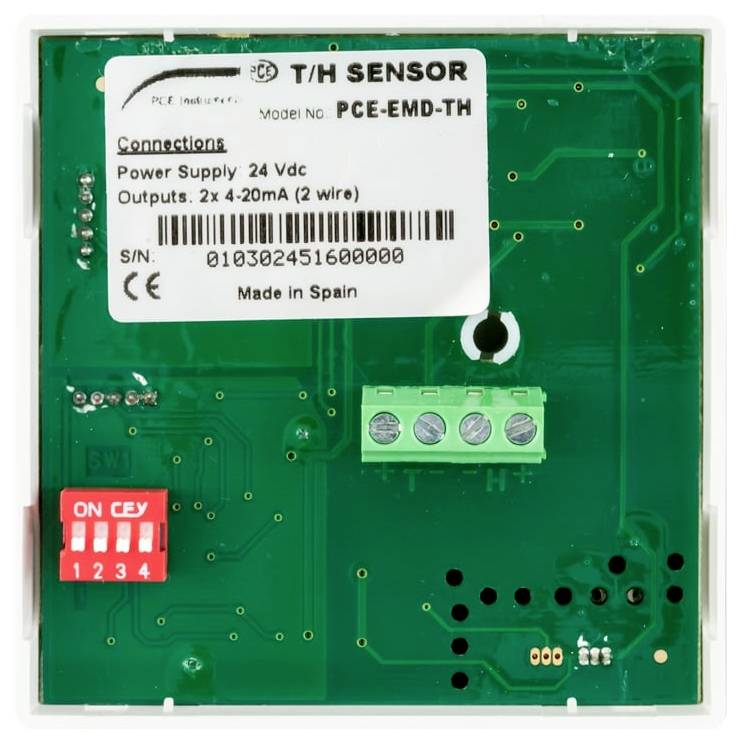

Green T/H sensor circuit board labeled 'PCE-EMD-TH' with 24 Vdc power and 4-20 mA outputs, plus terminal block and red DIP switch.

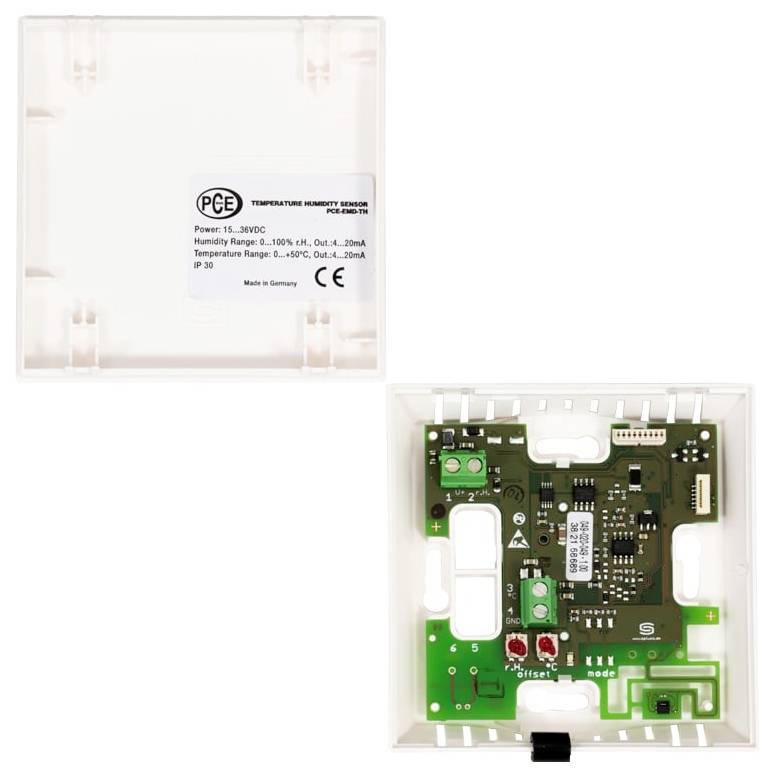

Two views of a humidity/temperature sensor module: front cover with label and open rear showing circuit board and terminals.

1/5

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 855.00 / piece)

€ 855.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Panel-mounted measuring instrument PCE-EMD 5

Digit height of 100 mmMeasuring ranges: 0.0 - 50.0 °C.Wall mounting Connection of up to four external sensorsAnalogueue 4 - 20 mA input signal

Technical specifications

Weight of sensor 66 gDimensions of sensor: 80x80x35 mmDisplay interval : 1 HzNumber of sensors that can be used: 4Digit height: 100 mmNumber color: WhiteSensor supply voltage 12 and 24 VDCSensor supply current max. 100 mAImpedance current input <: 200 ΩHousing material: Black painted aluminum housingDisplay protection: Non-reflective methacrylateHousing material Sensor: ABSProtection class Display: IP20Protection class Sensor: IP30Power supply display 110 - 220 V AC 50 / 60 HzPower consumption 18 W max.

Product type: Panel meter

Temperature reading range (min.): 0 °C

Temperature reading range (max.): 50 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 80 x 35 x 80 mm

Weight: 4579 g

Weight, information: without accessories

Calibration range: Humidity
Temperature

Humidity reading range (max.): 99.9 RH

Humidity reading range (min.): 0 RH

Temperature reading range: 0 up to 50 °C

Humidity reading accuracy: 3 RH

Width: 35 mm

Height: 80 mm

Length: 80 mm

Interfaces: 2x analogue IN (4-20mA/0-10V)
Analogue amperage
Analogue

Power supply: 12/24/230 V
110 - 240 V

Type: PCE-EMD 5

Basic accuracy: 0.1 %

Accuracy ± °C: 0.5 °C

Max. temperature: 50 °C

Min. temperature: 0 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2583862 PCE Instruments PCE-EMD 5 PCE-EMD 5 Panel meter 0 up to 50 °C 0 up to 99.9 RH

Description

The built-in measuring instrument can be connected to up to four external temperature and humidity modules. The temperature measuring range for the sensors of the measuring instrument is 0.0 - 50.0 °C and the humidity measuring range is 0.0 - 99.9 % r. h.. The power is supplied by the built-in measuring instrument itself via a mains connection of 110 - 220 V AC. The integrated sensor supply can supply the connected sensors with 12 or 24 V DC in the built-in measuring instrument. As soon as the sensors are connected, they are detected automatically by the measuring instrument. The communication between the sensor modules and the measuring instrument takes place via an analogueue 4 - 20 mA signal. If several sensors are connected, the average measurement value of all sensors is displayed on the measuring instrument. This means that the built-in measuring instrument is used, for example, in event halls, restaurants or in public buildings to monitor the ambient conditions. ; The installation of the measuring instrument as well as the sensor module is done on a wall. If required, the measuring instrument can be mounted on a monitor holder with the mounting dimensions 75 x 75 mm. This allows ideal alignment of the measuring instrument. Optionally, the built-in measuring instrument can be equipped with an ISO calibration certificate.
