Buy PCE Instruments PCE-VT 1100 Vibration tester

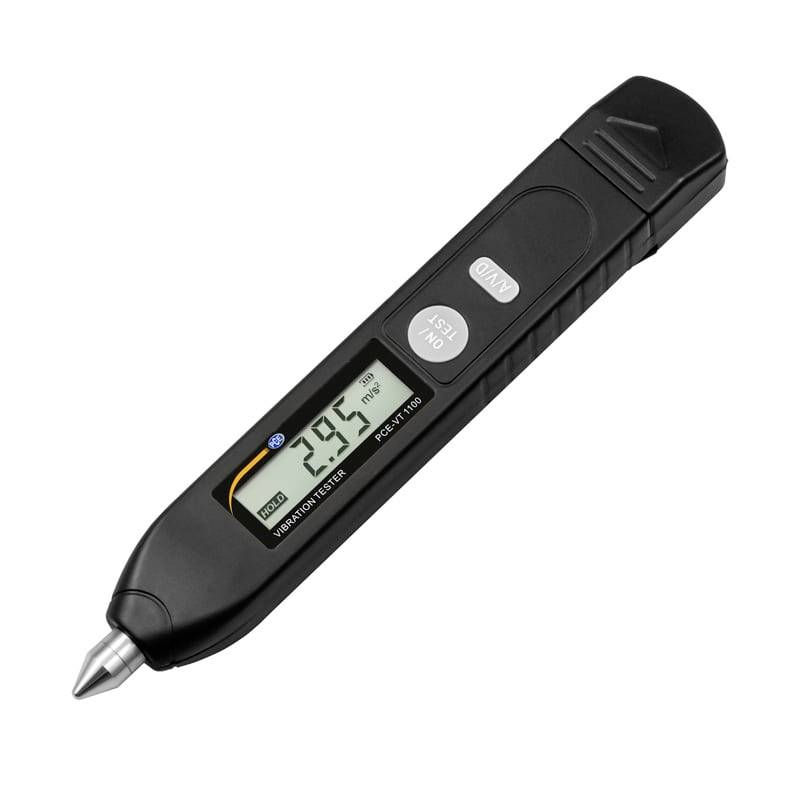

Black pen-style digital vibration tester with LCD display and two buttons, shown diagonally on a white background.

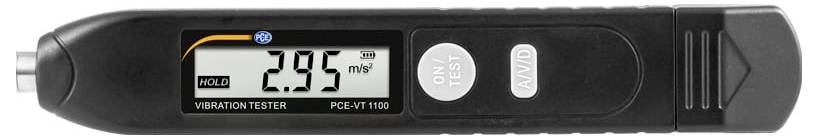

Handheld vibration tester display reading 2.95 m/s², with HOLD and ON/TEST buttons visible.

Hand holding a digital infrared thermometer near a metal machine part, measuring the surface temperature.<br>

Hand holding a digital pen-style vibration tester displaying a reading of 29.5 on its screen.

Digital sound level meter in a silver carrying case with foam padding and a strap, shown open on a white background.

A hand is holding a digital tyre pressure gauge displaying 2.95 psi.

A hand is holding a portable device against a metal surface, with the device displaying '9.75' on the screen.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 273.11 / piece)

€ 273.11

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Vibration tester PCE-VT 1100

Measures speed, path, acceleration
Holds the measured value after each measurement
handy and battery-operated
Wide frequency range
Automatic switch-off after 20 seconds
Battery level indicator

Technical specifications

Parameter Reading range Frequency range Acceleration 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz Vibration speed 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz Shift 0.001 ... 1.999 mm p-p 10 ... 500 Hz Accuracy Acceleration: ≤ 3% Vibration speed: ±5%, ±2 digits Offset: +10/-20 % (10...20 Hz) ±5 % (20...1000 HZ) General specifications LCD display, Response time approx. 1 second Power supply 2 x 6 V CR2032 button cells Battery life approx. 5 hours (in continuous operation) Ambient conditions 0 ... +40 °C, 0 ... 84 % r.F. Dimensions 155 x 24 x 18.7 mm Weight approx. 40 g including batteries.

Weight: 40

: Manufacturer's standards (no certificate)

Display: LCD

Type: PCE-VT 1100

Product type: Vibration tester

Documents & Downloads

Datasheet

Datasheet 2452725 PCE Instruments PCE-VT 1100 Vibration tester

User & Safety Instructions

User & Safety Instructions 2452725 PCE Instruments PCE-VT 1100 Vibration tester

Description

Vibration measuring device for vibration measurement / measured value memory for previous measurement / measurement of acceleration, vibration speed and displacement / large frequency range / battery-operated hand-held measuring device / automatic shutdown The vibration measuring device is used as a hand-held measuring device for the individual evaluation of vibration at machines and systems. With the help of this vibration measuring device, the actual condition can be easily determined on site. This means that appropriate changes can be made directly on site after the measurement. The new state can also be assessed after this. This makes the vibration meter a gauge for relative measurement on various machines. The vibration measuring device is essential for preventive and preventive maintenance of production machines. This vibration measuring device is used for a quick measurement of the imbalance as well as for checking bearing and gear states. Very often the vibration measuring device is also used for the condition assessment of smaller electric motors.

This text is machine translated.

Scope of delivery

1 x PPCE-VT 1100 Vibration Tester
1 x PCE-VT-NF-10 standard sensor (length 10mm)
2 x batteries
1 x carrying case
1 x storage box
1x user manual
