Buy Extech VB400 Vibration tester ±5 %

A portable vibration measurement device with a digital display is showing the reading '1999'. The device has operational buttons.

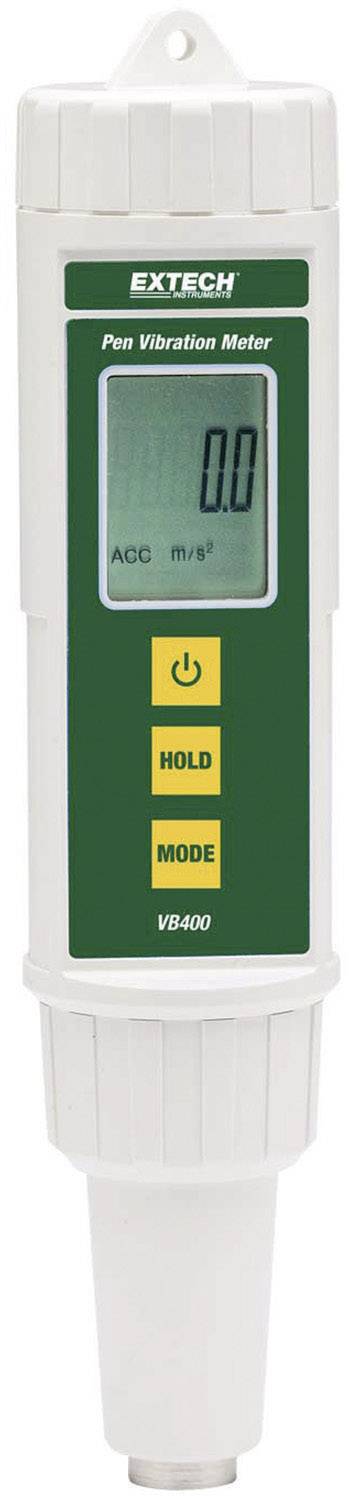

A handheld vibration measurement device with a display showing '0.0'. It has buttons for 'Hold' and 'Mode'.

A portable pen vibration metre with a digital display showing '0.0'. 'EXTECH' is printed at the top, with 'VB400' underneath. Buttons include 'POWER', 'HOLD', 'FUNCTION'.

1/3

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 536.97 / piece)

€ 536.97

plus VAT.

Only 1 Piece(s) available

14 days return policy included

Report legal concerns

Highlights & Details

Vibration measuring stick VB 400

For oscillation frequency of 10 Hz - 1 kHz
Water- and dustproof (IP65)
With magnetic attachment

Technical specifications

Measuring range: 0.5 - 199 m/s²; 0.05 - 20.39 G; 2 - 656 ft/s²
Measuring range speed: 0.5 - 199.9 m/s; 0.05 - 19.99 cm/s; 0.02 - 7.87inch/s
Measuring head-Ø: 9 mm

Basic accuracy: ±5 %

Product type: Vibration tester

Reading type: Acceleration
Speed

Display: LCD

Operating voltage: 4x AAA battery

Dim: (L x W x H) 175 x 40 x 32 mm

Weight: 240 g

Width: 40 mm

Height: 32 mm

Length: 175 mm

Type: VB400

Documents & Downloads

Datasheet

Datasheet 103851 Extech VB400 Vibration tester ±5 %

User & Safety Instructions

User & Safety Instructions 103851 Extech VB400 Vibration tester ±5 %

Description

The measuring stick VB400 enables the quick and easy measurement of acceleration forces of machines, engines and on the cases with internal moving parts. The vibration measurement indicates the status, the alignment and the synchronous operation of machines with rotating parts. The small and handy device is an ideal aid for the maintenance and repair of machines and systems.

This text is machine translated.
