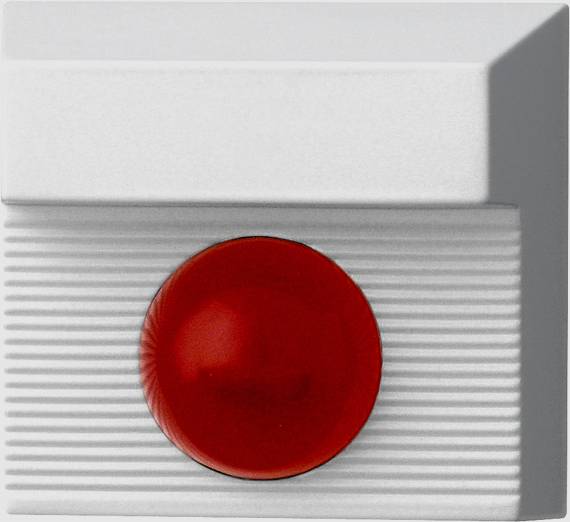

PENTATECH 33166 LED display + buzzer 70 dB Indoors
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Highlights & Details
Universal display with LED and buzzer for 12 or 24 V DC
- Usable display for additional optical and acoustic signal
- Can be controlled via 12 V or 24 V DC
- Red LED and 70 dB buzzer can be controlled separately
- Easy installation indoors
Technical specifications
- Current consumption at 12 V DC: LED: 12 mA (continuous), 6 mA (pulsating); buzzer: 20 mA (continuous), 10 mA (pulsating)
- Pulsating function: 0.5 sec. on, 0.5 sec. off (1 Hz)
- LED: Ø 20 mm
- Product type
LED display + buzzer
- Max. sound pressure
70 dB
IP40
- Used at
Indoors
- Temperature range
-20 - +60 °C
- Width
50 mm
- Height
45 mm
- Depth
24 mm
- Dim
(W x H x D) 50 x 45 x 24 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2267020 PENTATECH 33166 LED display + buzzer 70 dB Indoors
User & Safety Instructions
User & Safety Instructions 2267020 PENTATECH 33166 LED display + buzzer 70 dB Indoors
Description
Display ANZ01: For an optical and acoustic signal
The universally applicable display ANZ01 ensures that you are informed – and this both visually and acoustically. The highly visible LED display and buzzer are discreet yet conspicuous and thus exactly the right signal for many indoor applications.
LED light with buzzer
When the display is activated, the red LED light lights up and an acoustic signal sounds at a volume of up to 70 dB. Especially practical: LED and buzzer can also be controlled separately. In addition, both signal types can be set to a continuous or pulsating function with short interruptions.
Easy installation indoors
The display in a compact housing is simply attached with screws in the interior and can be controlled via 12 V or 24 V DC.
This text is machine translated.
The universally applicable display ANZ01 ensures that you are informed – and this both visually and acoustically. The highly visible LED display and buzzer are discreet yet conspicuous and thus exactly the right signal for many indoor applications.
LED light with buzzer
When the display is activated, the red LED light lights up and an acoustic signal sounds at a volume of up to 70 dB. Especially practical: LED and buzzer can also be controlled separately. In addition, both signal types can be set to a continuous or pulsating function with short interruptions.
Easy installation indoors
The display in a compact housing is simply attached with screws in the interior and can be controlled via 12 V or 24 V DC.
This text is machine translated.
Features
- Display with Heller LED and buzzer
- for surface mounting in interior
- areas Mounting by screws or provided adhesive pad
- Separate control of LED and buzzer via 12 or 24 V DC
- LED as well as buzzer can be set to continuous or pulsating function.
Scope of delivery
- LED display
- User manual.
Hints
IP 40 (for indoor use only)
