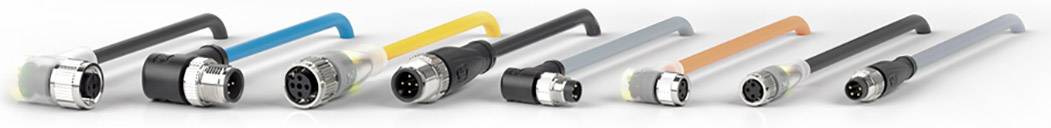

Image similar
Pepperl+Fuchs 195692 Sensor/actuator connector M12 Plug, straight, Socket, right angle 10.00 m No. of pins (RJ): 3 1 pc(
Product type
Sensor/actuator connector
Connector type
Plug, straight
Socket, right angle
Connector standard
Sensor connector
Connection side A
M12 socket, right angle
Connection side B
M12 plug, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact resistance<: 5 mΩ
- Contact elements: Spring-mounted contact sockets
- Pin diameter 1 mm
- Grip body: TPU, green
- Cable material: PVC
- Cable wires: 3 x 0.34 mm²
- Cable sheath diameter: Ø 4.8 mm
- Cable bending radius>: 10 x cable diameter, moving
- Cable
- Packaging type
Piece
- Type
V11-W-10M-PVC-V11-G
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
M12 socket, right angle
- Connection side B
M12 plug, straight
- No. of pins
3
- Cable length
10.00 m
- Jacket material
PVC
- Nominal voltage
300 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
4.8 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Socket
Plug
- Factory colour
Grey
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Grey
- Contact material
CuSn
- Contact surface
Au
IP67
IP68
IP69K
- Features
A-coded
- Min. temperature
-25 °C
- Max. temperature
+100 °C
- Manufacturer part #
195692
- Content
1 pc(s)
- Cable Ø
4.8 mm
- UKCA
yes
