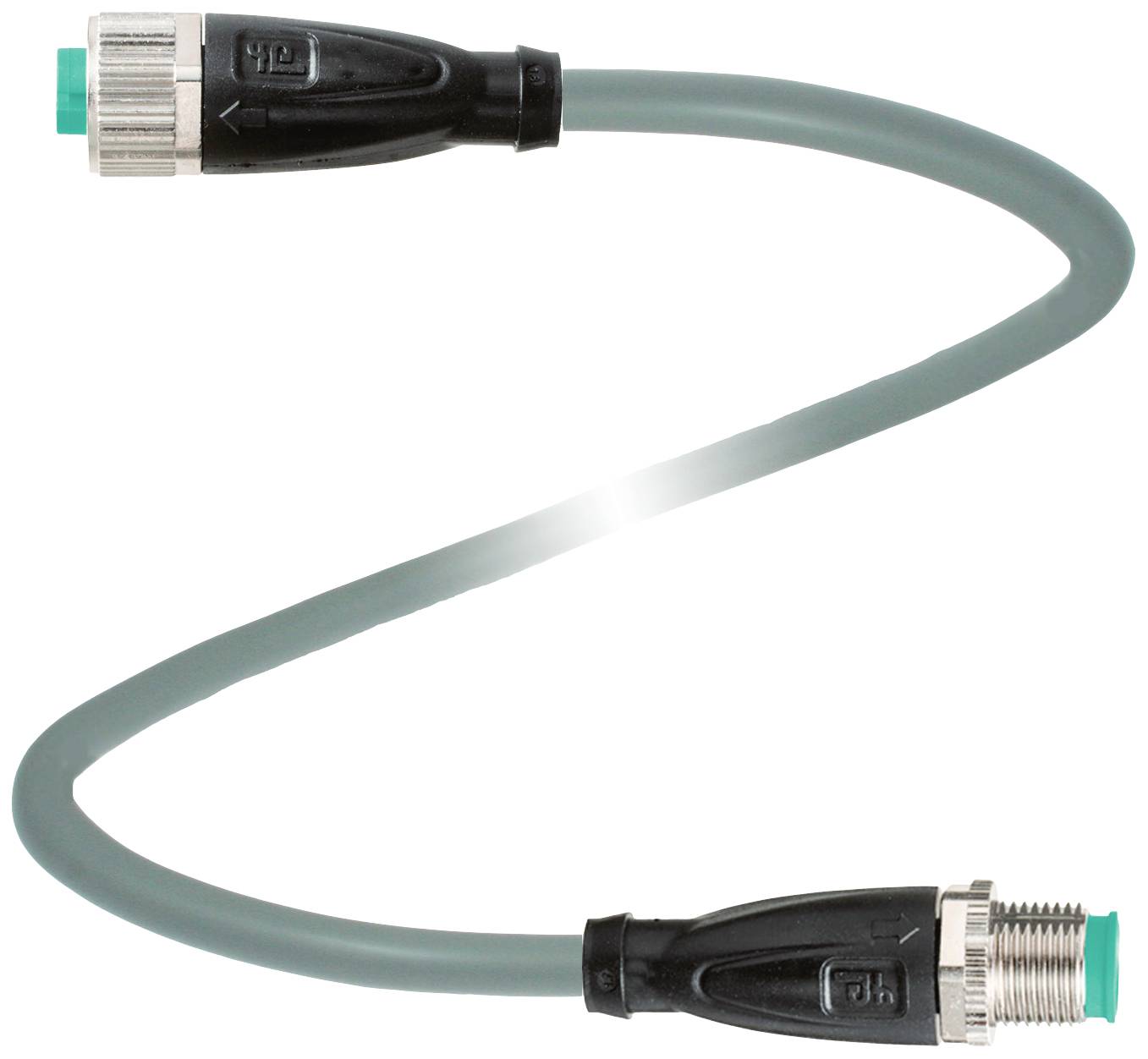

Pepperl+Fuchs 207990 Sensor/actuator connector (pre-fab) M12 x 1 straight 4 m No. of pins (RJ): 3, 3 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connector type
straight
Connection side A
M12 socket, straight
Connection side B
M12 plug, straight
No. of pins
3
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
V11-G-4M-PVC-V11-G
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
straight
- Connection side A
M12 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
3
3
- Cable length
4 m
- Jacket material
PVC
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
4.8 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
A
- Contact material
Gold
- Contact surface
Au (gold)
- max. cross section
0.34 mm²
IP68
IP69
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
207990
- Content
1 pc(s)
- Cable Ø
4.8 mm
- Cable Ø (max.)
4.8 mm
- Cable Ø range
4.8 mm (max)
- Wireless charging
No
- UKCA
not relevant
