Pepperl+Fuchs 214959 RaDec-M Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC

Black, rounded plastic cover with a smooth surface.

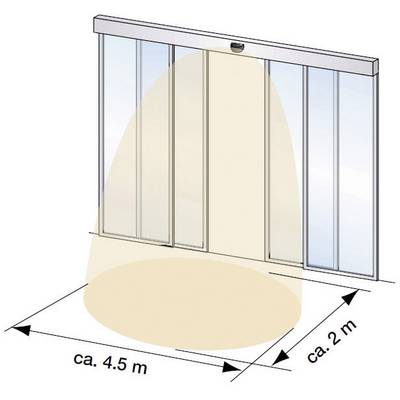

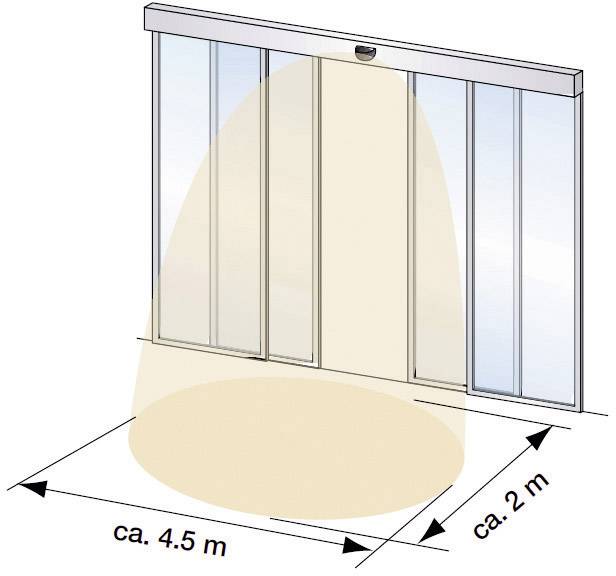

Sliding door with automatic sensor. Sensor range extends approximately 4.5 m in width and approximately 2 m in depth in front of the door.

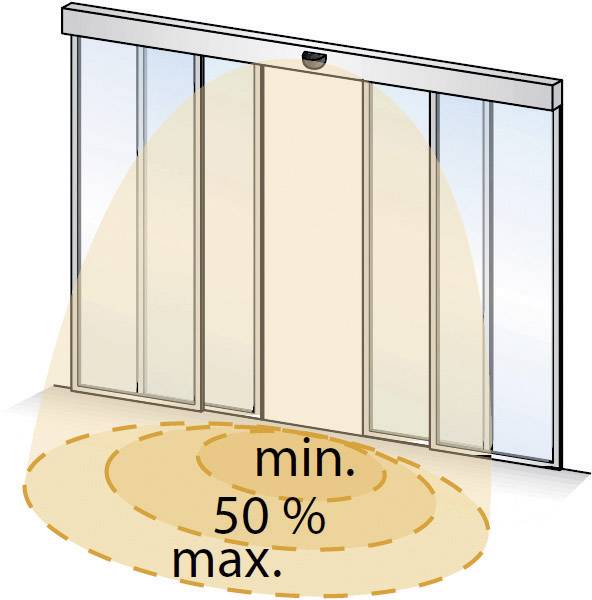

Automatic Sliding Door Representation with Sensor Area: The safety zone extends to at least 50% in front of the door.
Technical drawing of a semi-circular structure with dimensions: Width 100.7, Height 67.6, deep bowl with recess at top, Width 60.7.

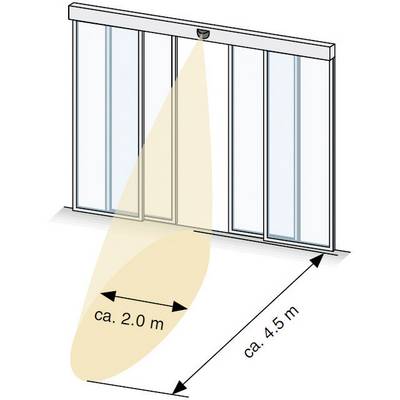

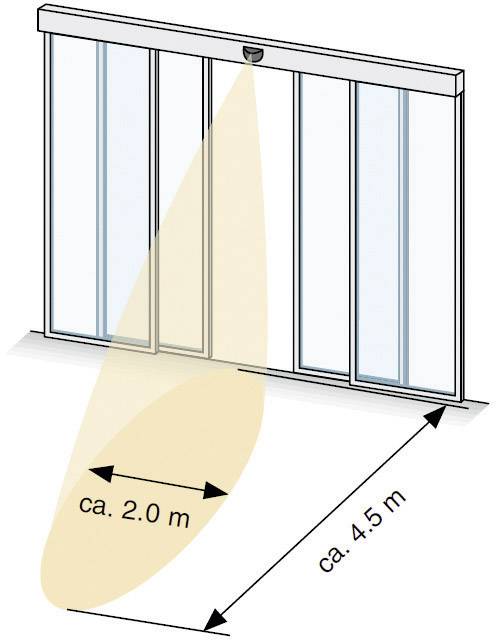

Automatic sliding door with motion sensor. Sensor range extends approximately 2 metres forward and 4.5 metres to the side.
1/5
Product type
Radar motion detector
Min. operating voltage
12 V DC
12 V AC
Max. operating voltage
36 V DC
28 V AC
Type
RaDec-M
Operating voltage
12, 12 - 36, 28 V DC, V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
25 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 154.99 / piece)
€ 154.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Installation height: 4 m
  • Field size: (W x D, at 2.2 m height) 4.5 x 2 m wide, narrow, 2 x 4.5 m
  • Switching output relay
  • Anschluss: Festkabel 2 m
  • Protection class: IP54
Product type

Radar motion detector

Type

RaDec-M

Min. operating voltage

12 V DC

12 V AC

Max. operating voltage

36 V DC

28 V AC

Operating voltage

12, 12 - 36, 28 V DC, V AC

Switching voltage (max.)

48 V DC

48 V AC

Switching current (max.)

1 A

Content

1 pc(s)

Cable length

2.00 m

IP54

Min. temperature

-20 °C

Max. temperature

+60 °C

Length

57.6 mm

Width

100.7 mm

Height

60.7 mm

Dim

(L x W x H) 57.6 x 100.7 x 60.7 mm

Switching voltage


48 V DC/AC

Switching current


(AC) 0.5 A/(DC) 1 A

Type

RaDec-M

Temperature range

-20 - +60 °C

Operating voltage

12 - 36 V/DC/12 - 28 V AC

Documents & Downloads

Datasheet

Datasheet 156451 Pepperl+Fuchs 214959 RaDec-M Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC

User & Safety Instructions

User & Safety Instructions 156451 Pepperl+Fuchs 214959 RaDec-M Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC

Description

The motion sensor Radec-M based on the latest 24-GHz technology with microprocessor control ensures high reliability under difficult operating conditions in all the automatic doors. If there are people or objects in the monitored area , then solve this problem by a motion detection. By rotating the sensor circuit board, a wide or narrow detection field can be set. The detection field can also be adjusted in 5 ° increments of 00-90 °. Via a potentiometer , the size of the sensing field can be changed additionally Switching mode can be possible as active or passive

Scope of delivery

  • Connection cable 2 m.
