Pepperl+Fuchs RMS-D Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC
Product type
Radar motion detector
Min. operating voltage
12 V DC
12 V AC
Max. operating voltage
36 V DC
28 V AC
Type
RMS-D
Operating voltage
12, 12 - 36, 28 V DC, V AC
EAN:
Part number:
Item no:
Number
Total (€ 419.00 / piece)
€ 419.00
incl. VAT
14-day return policy included
Highlights & Details
Pepperl+Fuchs RMS-D Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC
- Radar motion sensors for doors
- Cross-traffic fade-out
- Direction sensor
Technical specifications
- Installation height: 4 m

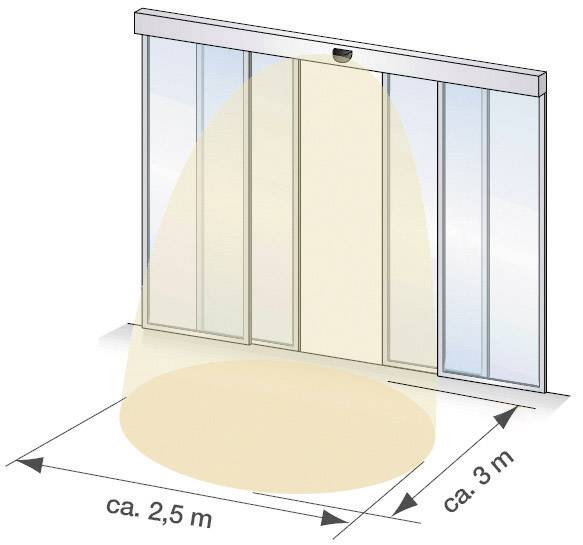

- Field size: 0.2 x 0.2 m/ 2.5 x 3 m (height 2.2 m)
- Switch output: 1 x programmable make/break relay
- Connection: fixed cable 5 m with plug-in screw terminal
- Product type
Radar motion detector
- Type
RMS-D
- Min. operating voltage
12 V DC
12 V AC
- Max. operating voltage
36 V DC
28 V AC
- Operating voltage
12, 12 - 36, 28 V DC, V AC
- Switching voltage (max.)
48 V DC
48 V AC
- Switching current (max.)
1 A
- Content
1 pc(s)
- Cable length
5.00 m
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Temperature range
-20 - +60 °C
- Operating voltage
12 - 36 V/DC/12 - 28 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 156190 Pepperl+Fuchs RMS-D Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC
Information
Information 156190 Pepperl+Fuchs RMS-D Radar Motion Detector Operating voltage 12 - 36 V/DC/12 - 28 V AC
Description
Radar motion detector for doors, with cross-traffic fade-out, direction sensor and "Turtle" mode. All parameters are programmable.
