Image similar

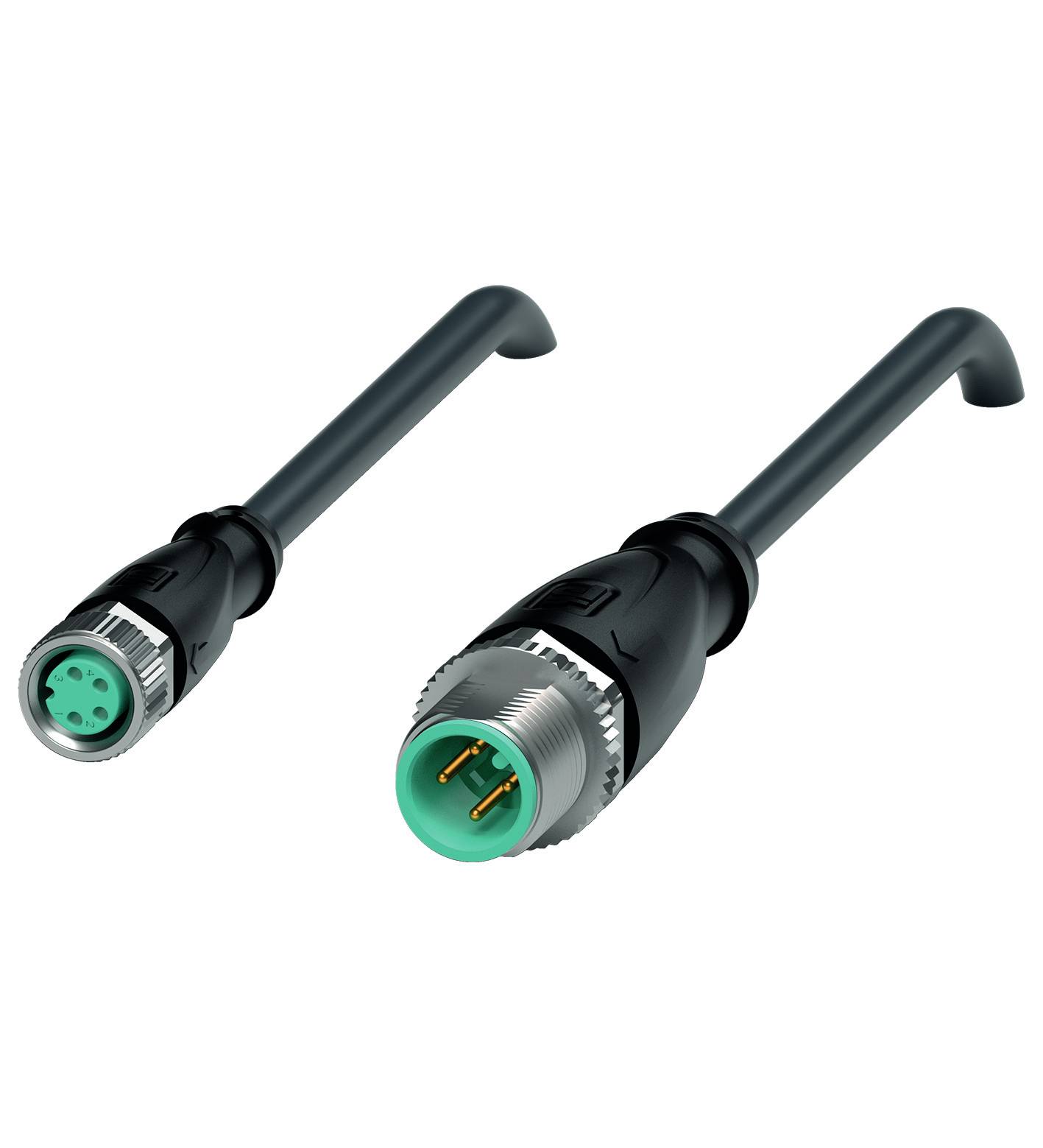

Pepperl+Fuchs 219125 Sensor/actuator connector (pre-fab) M8 x 1, M12 x 1 1.5 m No. of pins (RJ): 4, 4 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connection side A
M8 socket, straight
Connection side B
M12 plug, straight
No. of pins
4
4
Cable length
1.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
V31-GM-BK1,5M-PUR-U-V1-G
- Product type
Sensor/actuator connector (pre-fab)
- Connection side A
M8 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
4
4
- Cable length
1.5 m
- Jacket material
PUR
- Nominal voltage
30 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
4.3 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Socket
Plug
- Thread type connection side
M8 x 1
M12 x 1
- Coding
A
- Contact material
Au
- Contact surface
Au
IP67
IP68
IP69
- Features
Halogen-free
Hydrolysis-resistant
Suitable for drag chains
UV-resistant
Oil-resistant
Twistable
PUR jacket
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
219125
- Content
1 pc(s)
- Cable Ø
4.3 mm
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630594 Pepperl+Fuchs 219125 Sensor/actuator connector (pre-fab) M8 x 1, M12 x 1 1.5 m No. of pins (RJ): 4, 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630594 Pepperl+Fuchs 219125 Sensor/actuator connector (pre-fab) M8 x 1, M12 x 1 1.5 m No. of pins (RJ): 4, 4 1 pc(s)
