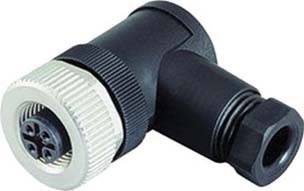

Pepperl+Fuchs 224884 Junction box M12 Socket, right angle No. of pins (RJ): 4 1 pc(s) Piece
Product type
Junction box
Connector type
Socket, right angle
Connection side A
M12 socket, right angle
No. of pins
4
Nominal voltage
250 V DC/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Constant resistance < 8 mΩ
- Grip body:PBT, black
- Cable jacket diameter 4 mm - 6 mm
- Cap nut: CuZn, nickel-plated
- Mating cycles 50
- Packaging type
Piece
- Type
V1-W-BK
- Product type
Junction box
- Connector type
Socket, right angle
- Connection side A
M12 socket, right angle
- No. of pins
4
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Socket
Screw terminal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
CuSn
- max. cross section
0.75 mm²
IP67
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
224884
- Content
1 pc(s)
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 6 mm
- UKCA
not relevant
