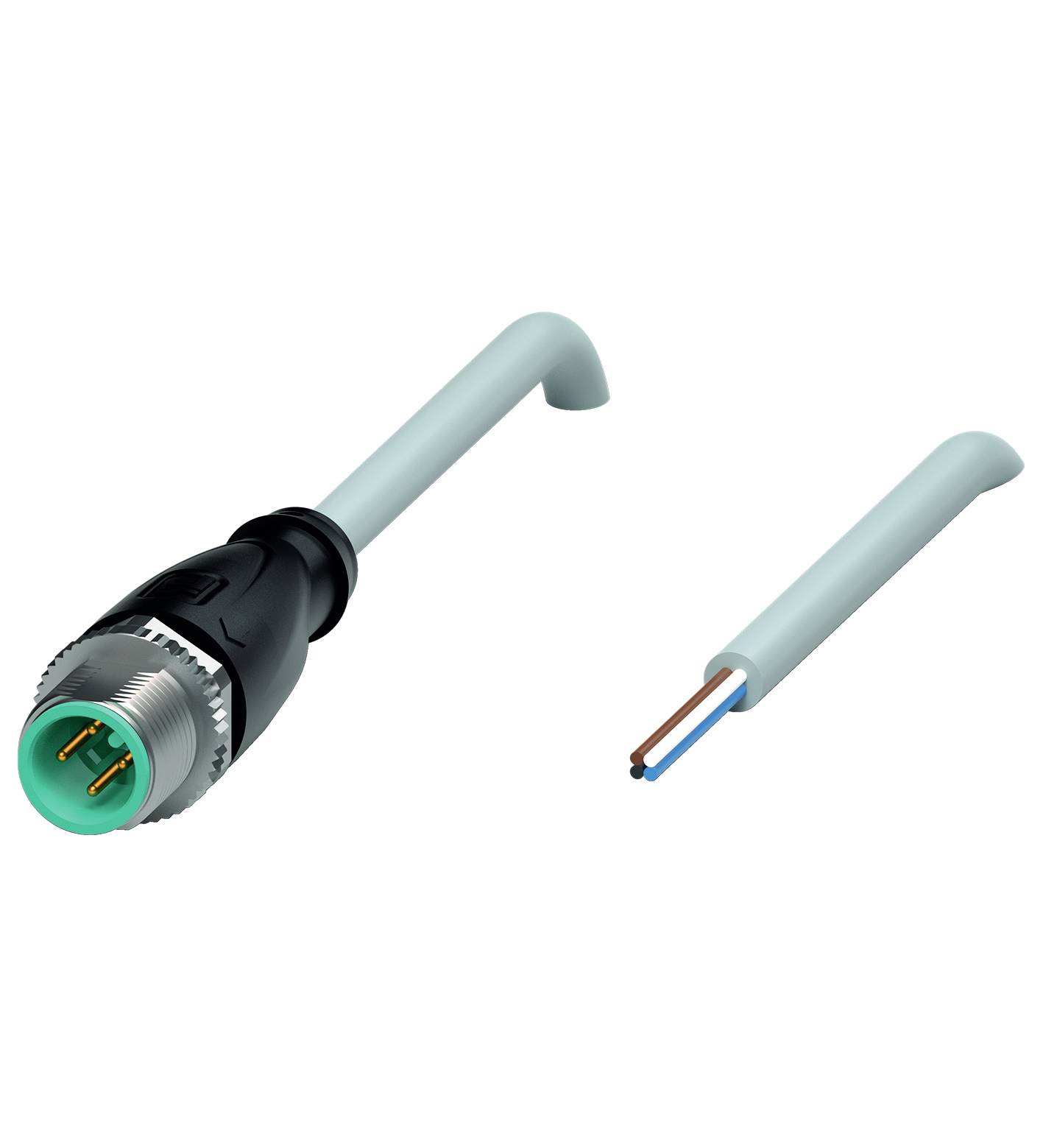

Image similar
Pepperl+Fuchs 240771-0024 Sensor/actuator connector (pre-fab) M12 x 1 0.5 m No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connection side A
M12 plug, straight
Connection side B
Cable, open end
No. of pins
4
Cable length
0.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
V1S-G-0,5M-PVC
- Product type
Sensor/actuator connector (pre-fab)
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
0.5 m
- Jacket material
PVC
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
4.8 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Plug
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
A
- Contact material
Au (gold)
- Contact surface
Au (gold)
IP68
IP69
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
240771-0024
- Content
1 pc(s)
- Cable Ø
4.8 mm
- Wireless charging
No
- Cable diameter (details)
0.34 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2630745 Pepperl+Fuchs 240771-0024 Sensor/actuator connector (pre-fab) M12 x 1 0.5 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2630745 Pepperl+Fuchs 240771-0024 Sensor/actuator connector (pre-fab) M12 x 1 0.5 m No. of pins (RJ): 4 1 pc(s)
Description
Cable connector, M12, length 0.5 m.
This text is machine translated.
This text is machine translated.
Features
- General dataConnector 1 Connection: Connector Design: M12 Design: Straight Locking: Screw connection Number of pins: 4 Coding: A-codedConnector 2 Connection: Free cable endElectrical DataOperating voltage max. 250 V AC/DCOperating current: Max. 4 AComplianceProtection class EN 60529Plug connector M12 x 1 : IEC 61076-2-101Flammability: IEC 60332-2-2Ambient conditionsAmbient temperature Connector -40 ... 90 °C (-40 ... 194 °F) Cable, fixed: -25 ... 70 °C (-13 ... 158 °F) Cable, movable: -5 ... 70 °C (23 ... 158 °F)Pollution level 3Mechanical data:Connectors Tightening torque: 0.6 Nm Release vibration protection: Available Tool assembly: Longitudinal knurled and hexagonal nut SW = 14 mm Mating cycles: Min. 100Protection class IP68/IP69Cable: According to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter 4.8 mm Bending radius > : 10 x cable diameter, moved Sheath adhesive seat: Max. 80 N / 300 mm Sheath color: Gray (similar to RAL 7001) Core number: 4 Wire cross-section 0.34 mm2 Wire color: Wire 1: brown | Wire 2: White | Wire 3: Blue | Wire 4: Black Core structure: 19 x 0.15 mm Ø Length 0.5 m Cable short code: Li Y YM 4 x 0.34MaterialsConnectors Screw connection: Die-cast zinc, nickel-plated Grip body: TPU, black Contact surface: AU V-2 combustibilityCable Sheath: PVC Wire insulation: PVC Flammability: Flame-resistant
