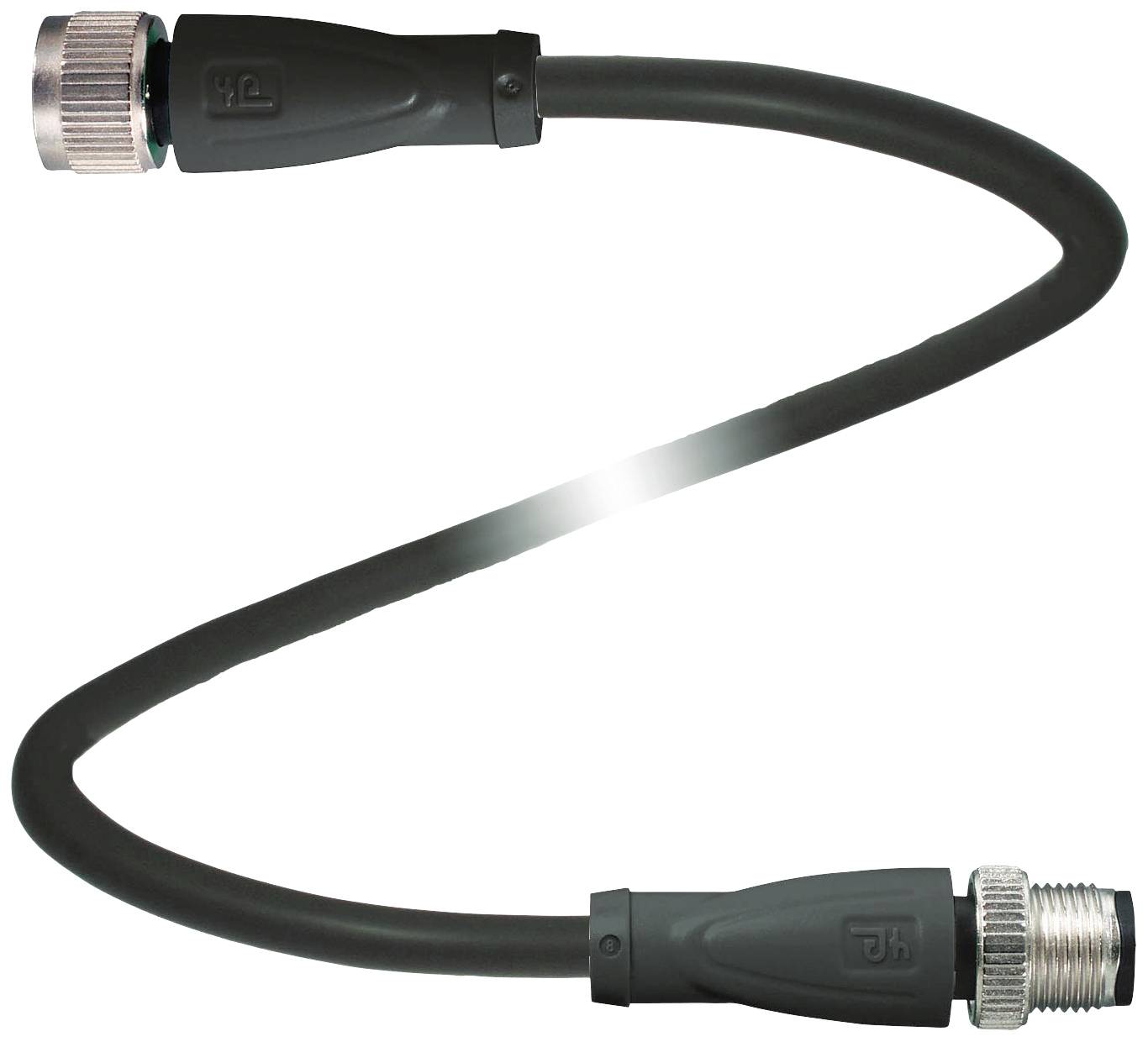

Image similar
Pepperl+Fuchs 240775-100086 Sensor/actuator connector (pre-fab) M12 x 1 Plug (straight) to connector (straight) 5 m No.
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug (straight) to connector (straight)
Connector standard
I/O connector
Connection side A
M12 socket, straight
Connection side B
M12 plug, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
V19-G-BK5M-PVC-U-V19-G
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug (straight) to connector (straight)
- Connector standard
I/O connector
- Connection side A
M12 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
8
8
- Cable length
5 m
- Jacket material
PVC
- Nominal voltage
30 V DC/AC
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Outside Ø
6.3 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Jack connector
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
A
- Contact surface
Au (gold)
IP67
IP68
IP69
- Features
Oil-resistant
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
240775-100086
- Content
1 pc(s)
- Cable Ø
6.3 mm
- Wireless charging
No
- UKCA
not relevant
