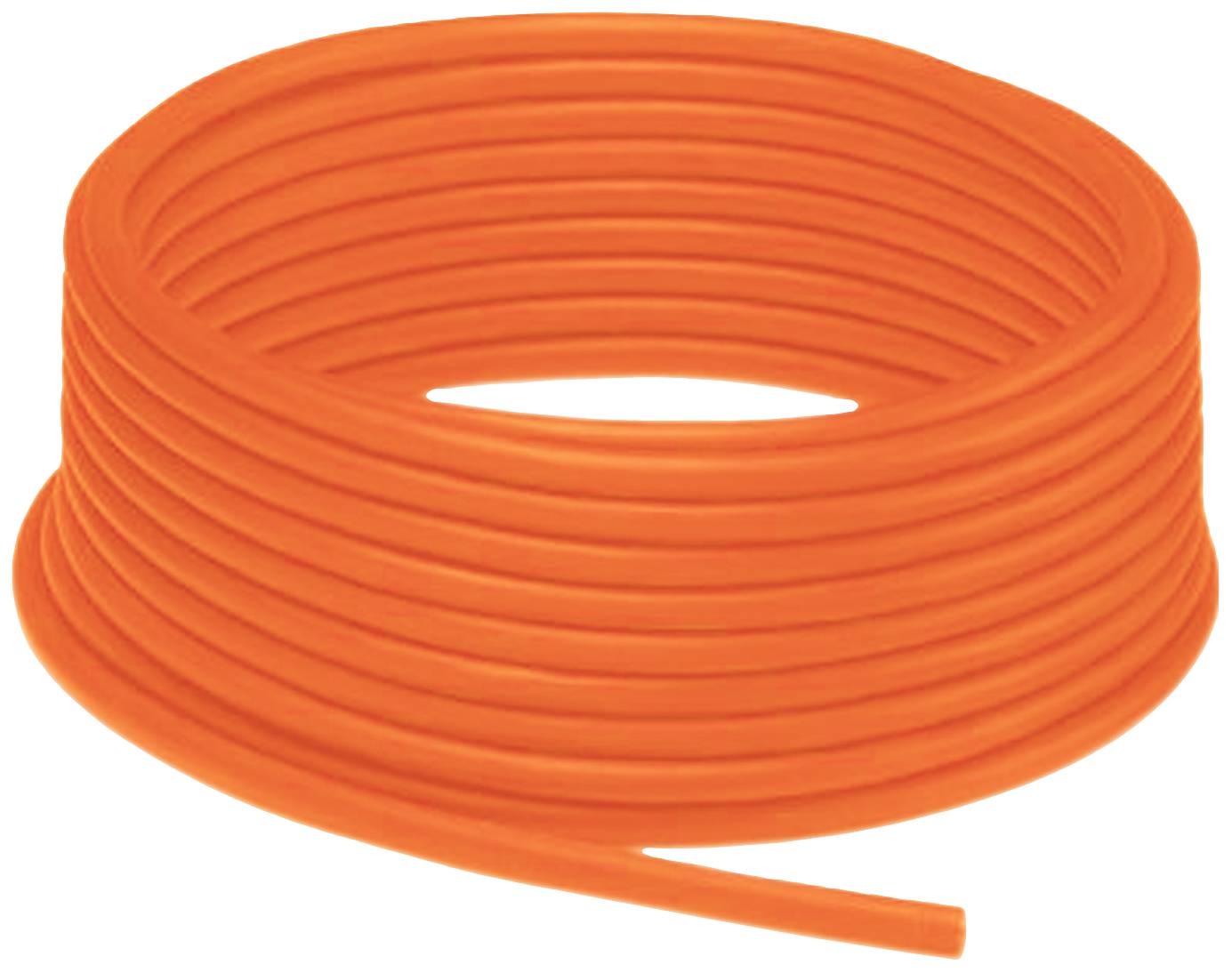

Name: Pepperl+Fuchs 297403 Sensor lead LiF9Y11Y 4 x 0.34 mm² Orange 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2630221

A coiled, bright orange plastic pipe, stacked in an even circle.

Image similar

Product type

Sensor lead

No. of leads

4 x

Cross section (each core)

0.34 mm²

Cable type

LiF9Y11Y

Cross section

4 x 0.34 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Sensor lead

Cable type: LiF9Y11Y

No. of leads: 4 x

Cross section (each core): 0.34 mm²

Cross section: 4 x 0.34 mm²

Outside Ø: 4.3 mm

Factory colour: Orange

Content: 1 pc(s)

Nominal voltage (details): 300 V DC/AC

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 297403

Insulation material: PP

Core layout: 42 x 0.1 mm

Min. temperature range (flexible installation): -25 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Type: CBL-PUR-A-OR-04x034-100M

Wireless charging: No

Documents & Downloads

Datasheet

Datasheet 2630221 Pepperl+Fuchs 297403 Sensor lead LiF9Y11Y 4 x 0.34 mm² Orange 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2630221 Pepperl+Fuchs 297403 Sensor lead LiF9Y11Y 4 x 0.34 mm² Orange 1 pc(s)

Description

Cable, PUR/PP, 4-wire welding resistant orange,; UL-approved, suitable for tow chains, Suitable for torsion; length 100 m.

This text is machine translated.

Features

Electrical DataOperating voltage max. 300 V AC/DCComplianceFLAMMABILITY UL 1581; DIN EN 60332-2-2HALOGEN-FREE: DIN VDE 0472-815 | IEC 60754-1RESISTANCE TO MICROBE: DIN EN 50525-2-21 / DIN VDE 0282-10Resistance to hydrolysis: DIN EN 50525-2-21Approvals and certificatesUL RECOGNIZED AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2Ambient conditionsAmbient temperature Cable, fixed: -40 ... 80 °C (-40 ... 176 °F) Cable, movable: -25 ... 80 °C (-13 ... 176 °F)Pollution level 3Mechanical data:Cable: According to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter 4.3 mm ± 0.1 mm Bending radius: > 10 x cable diameter, moving | > 5 x cable diameter, fixed laid Sheath adhesive seat: Max. 50 N / 300 mm Sheath color: orange (similar to RAL 2003) Core number: 4 Wire cross-section 0.34 mm2 Wire color: Wire 1: brown | Wire 2: White | Wire 3: Blue | Wire 4: Black Core construction: 42 x 0.1 mm Ø Length: 100 m Cable short code: Li F 9Y 11Y 4 x 0.34Drag chain capability Trailing chain cycles: Min. 5000000 Travel speed: Max. 3.3 m/s Travel distance: Max. 5 m Acceleration: Max. 5 m/s2 Torsion cycles: Min. 1000000 Torsion load: ± 180°/m.MaterialsLABS Freedom: YesHalogen-free: YesCable Sheath: PURE on polyether basis Wire insulation: PP Welding spatter resistance: Yes Chemical resistance: Good Oil resistance: Yes Coolant resistance: Yes Microbe resistance: Yes Resistance to hydrolysis: Yes FT2 combustibility
