Name: Pepperl+Fuchs 70114055 ICRL-U-4RJ45/SFP-G-DIN Industrial Ethernet switch 1 GBit/s
Brand: Pepperl+Fuchs
SKU: 2627155

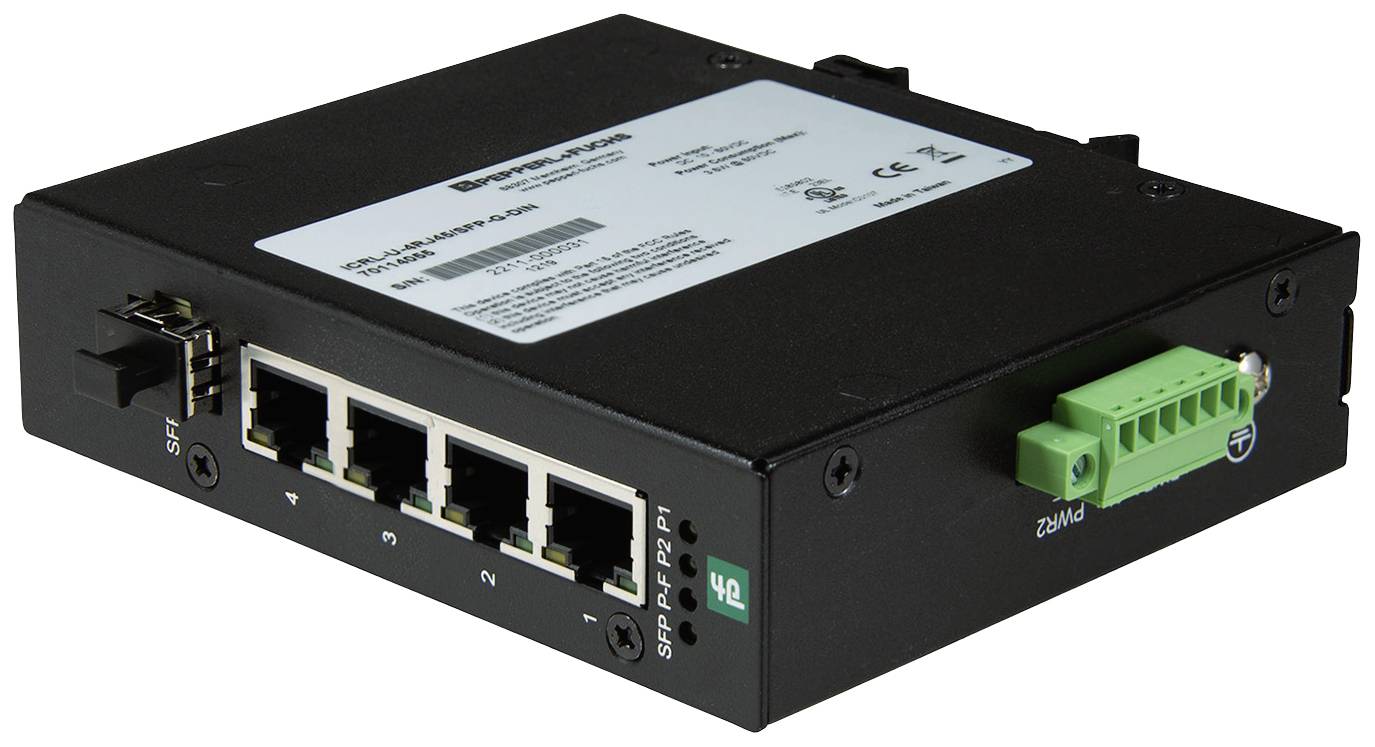

A compact industrial network switch with five ports and green connection terminal for data transmission in a robust housing.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Industrial Ethernet switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1 GBit/s

Working principle: Unmanaged switch

Ethernet ports: 4

SFP ports: 1 x

No. of 100 Mbps/1Gbps/10Gbps ports: 4 x

10/100/1000 Mbps ports: 4 x

Fibre-optic ports: 1

Auto-uplink at each port: Yes

Power supply (LOV): via terminal

Weight: 650 g

Type: ICRL-U-4RJ45/SFP-G-DIN

Interfaces: RJ45

Max. ambient temperature: 70 °C

Min. ambient temperature: -25 °C

Wireless charging: No

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2627155 Pepperl+Fuchs 70114055 ICRL-U-4RJ45/SFP-G-DIN Industrial Ethernet switch 1 GBit/s

User & Safety Instructions

User & Safety Instructions 2627155 Pepperl+Fuchs 70114055 ICRL-U-4RJ45/SFP-G-DIN Industrial Ethernet switch 1 GBit/s

Description

Unmanaged Ethernet switch with 4 RJ45 Gigabit ports, one Gigabit SFP slot and error alarm, interface type: Industrial Ethernet, transfer rate: 10/100/1000 Mbps, number/type: 4 x RJ45, 1 x SFP, ambient temperature: -25 ... 70 °C (-13 ... 158 °F), protection class: IP20, connection: Power supply terminal block fieldbus 5 x RJ45, mounting: DIN-rail or direct panel mounting

This text is machine translated.

Features

General dataUL file number E185778Functional safety characteristicsMTBF: 45.3 yearsEthernet interface.Auto MDI(-X): YesAuto negotiation: YesEthernet interface: Industrial EthernetTRANSFER RATE 10BASE-T, 100BASE-TX, 1000BASE-T.Cable type: Category 5e or betterStandards IEEE 802.3 10BASE-T: YES IEEE 802.3u 100BASE-TX: Yes IEEE 802.3x flow control and back pressure: Yes IEEE 802.3ab 1000BASE-T: YesDisplays/controlsLED display: See manualElectrical DataRated operating voltage: 10 ... 60 V DCPower consumption 3.6 WGeneral information: Redundant power supply, power failure alarm, relay output of 1 A max at 24 V DCNominal voltage: 24 V/DCInterface 1Physical: RJ45Transmission rate 10/100/1000 Mbit/s.Inputs/OutputsNumber/type 4 x RJ45 , 1 x SFPComplianceElectromagnetic compatibility DIRECTIVE 2014/30/EU: EN61000-6-2, EN55024 , EN61000-6-4, EN55022Compliance with standardsInterference emission: EN 55032, FCC Section 15 Subpart B, ICES-003, AS/NZS CISPR 32IEC 55024, EN61000-6-2Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Relative humidity: Max 95%Operating height: 0 ... 3048 m.Mechanical data:IP30 protectionConnection: Power supply Terminal block | Ethernet 5 x RJ45 | Materials Housing: Aluminium, blackWeight 650 gDesign: Switching cabinet moduleDIN rail or direct mounting on the control panel
