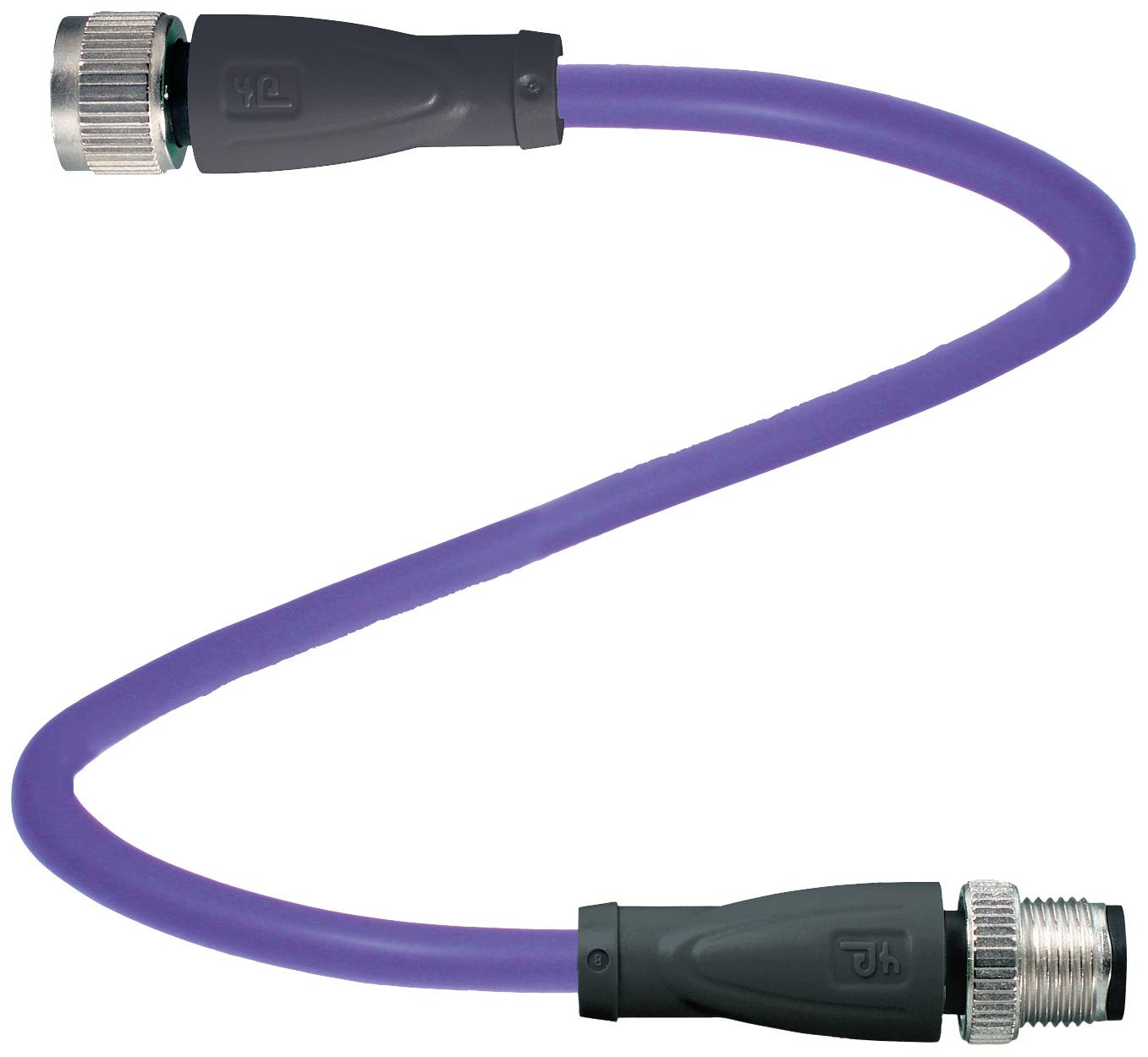

Image similar
Pepperl+Fuchs 70135617 Sensor/actuator connector (pre-fab) M12 x 1 0.5 m No. of pins (RJ): 5, 5 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connection side A
M12 socket, straight
Connection side B
M12 plug, straight
No. of pins
5
5
Cable length
0.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
V15-G-VT0,5M-PUR-U/CAN-V15-G
- Product type
Sensor/actuator connector (pre-fab)
- Connection side A
M12 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
5
5
- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
6.1 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
A
- Contact material
Gold
- Contact surface
Gold
- max. cross section
0.34 mm²
- Min. cross section
0.34 mm²
IP67
IP68
IP69
- Features
Suitable for drag chains
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
70135617
- Content
1 pc(s)
- Cable Ø
6.1 mm
- Cable Ø (max.)
6.1 mm
- Cable Ø range
6.1 mm (max)
- Wireless charging
No
- UKCA
not relevant
