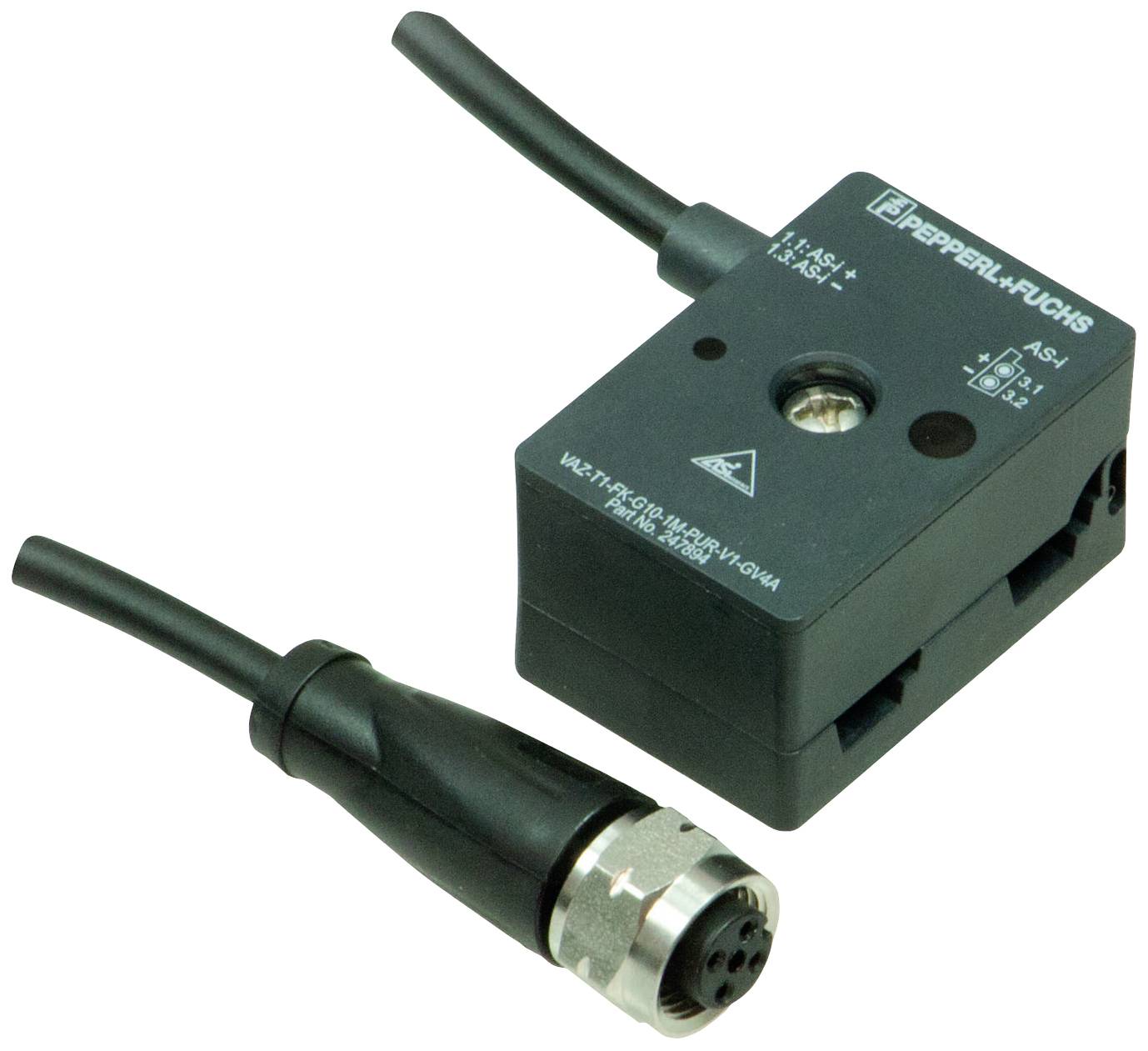

Pepperl+Fuchs VAZ-T1-FK-G10-1M-PUR-V1-GV4A 247894 Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
Packaging type
Single
Product type
Sensor & actuator box (passive)
No. of splitters
1-way
Type
VAZ-T1-FK-G10-1M-PUR-V1-GV4A
Connection
M12 socket
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Single
- Product type
Sensor & actuator box (passive)
- Type
VAZ-T1-FK-G10-1M-PUR-V1-GV4A
- No. of splitters
1-way
- Connection
M12 socket
- Length
1 m
IP67
- Max. temperature
55 °C
- Min. temperature
-25 °C
- Case material
PBT PC
- Weight
75 g
- Manufacturer part #
247894
- Content
1 pc(s)
- Features
Surge protection
- Power rating (total)
4 A
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2631066 Pepperl+Fuchs VAZ-T1-FK-G10-1M-PUR-V1-GV4A 247894 Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2631066 Pepperl+Fuchs VAZ-T1-FK-G10-1M-PUR-V1-GV4A 247894 Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
Description
Passive distributor G10, AS-Interface on 1x M12 round connector with stainless steel supercube nut, protection class: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
This text is machine translated.
This text is machine translated.
Features
- General dataDesign: Socket, straight | Flat cable terminal AS-InterfaceUL File Number: E223772 "for use in NFPA 79 Applications only"Electrical DataRated operating voltage: ≤ 32 V PELV ( AS-Interface )Rated operating current ≤ 4 A.Protection class IIIOvervoltage protection : Overvoltage category III.Compliance with standards and directivesCompliance Protection class EN 60529:2000Approvals and certificatesUL approved: CULus Listed, Type 1 enclosure Maximum permissible operating current: Max. 3 A. Maximum permissible ambient temperature: Max. 55 °C (max. 131 °F)Ambient conditionsAmbient temperature: -25 ... 75 °C (-13 ... 167 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Pollution level 3Mechanical data:Protection class IP67 | IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*Connection: Flat cable AS-Interface: Insulation displacement | Connector: Socket M12 x 1 (V1)Materials Contacts: CuSn / Au Housing: PBT PC Handle body: PURE, black Cable: PUR Cap nut: Stainless steel 1.4404 / AISI 316L (V4A) Fixing screw: Stainless steel 1.4305 / AISI 303 (V2A)Cable Sheath diameter Ø4.3 mm Colour, black Wires 2 x 0.5 mm2 Length: 1 mWeight 75 gTightening torque for fixing screws: 1.65 NmNote: The flat cable connector that is not required is sealed with a seal.
