Name: Pepperl+Fuchs VAZ-T1-FK-G10-V1-V4A 253965 Sensor & actuator box (passive) Multi splitter 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2631069

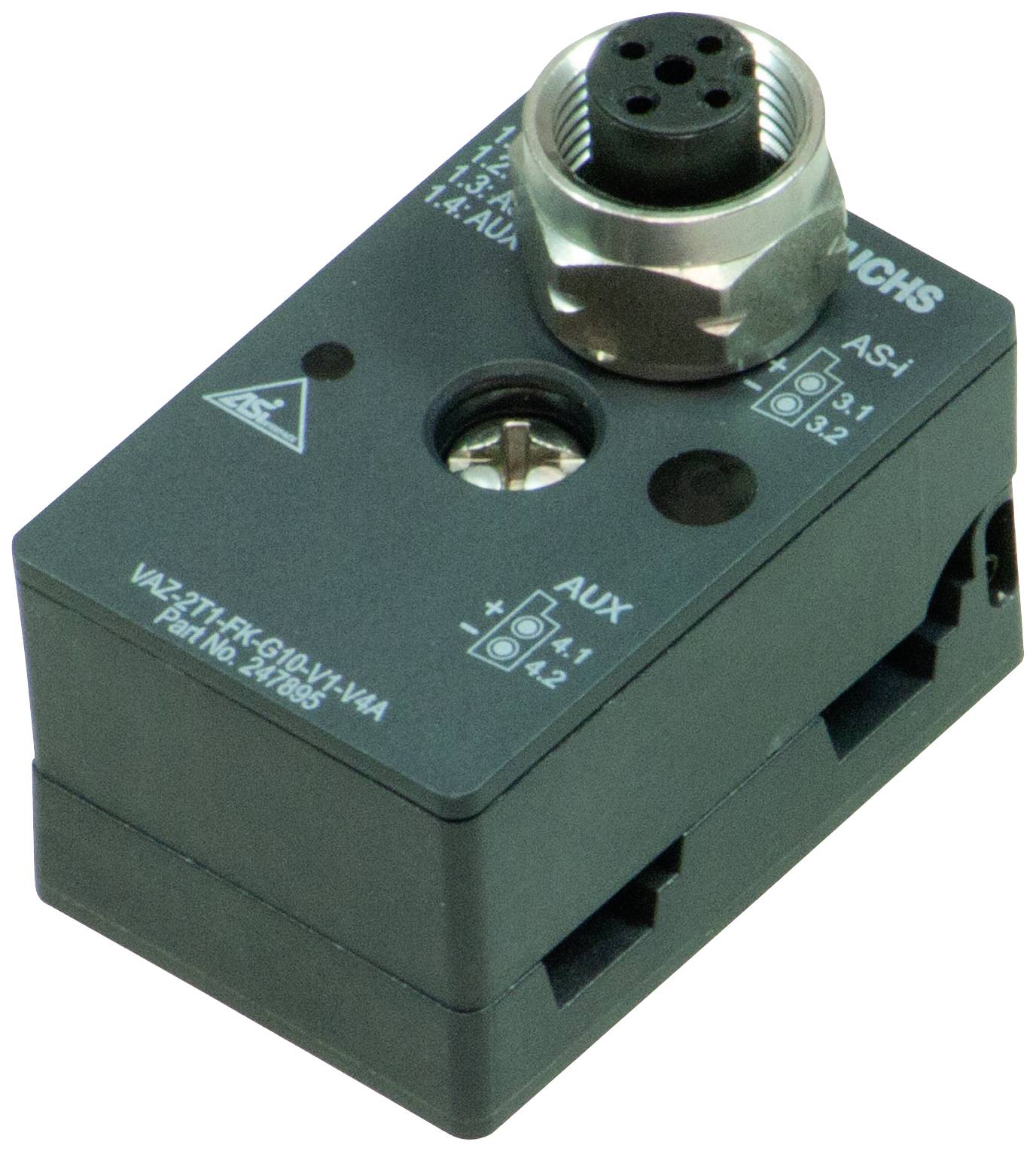

An electrical connector with multiple cable slots, a rotary locking system, and technical markings on the surface.

Image similar

Product type

Sensor & actuator box (passive)

Type

VAZ-T1-FK-G10-V1-V4A

Connection

M12 socket

IP rating

IP67

Total current (direct supply)

4 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Sensor & actuator box (passive)

Type: VAZ-T1-FK-G10-V1-V4A

Connection: M12 socket

: IP67

Total current (direct supply): 4 A

Max. temperature: 55 °C

Min. temperature: -25 °C

Case material: PBT PC

Weight: 45 g

Manufacturer part #: 253965

Content: 1 pc(s)

Features: Surge protection

Series: AS-Interface

Power rating (total): 4 A

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2631069 Pepperl+Fuchs VAZ-T1-FK-G10-V1-V4A 253965 Sensor & actuator box (passive) Multi splitter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2631069 Pepperl+Fuchs VAZ-T1-FK-G10-V1-V4A 253965 Sensor & actuator box (passive) Multi splitter 1 pc(s)

Description

Passive distributor G10, AS-Interface on M12, protection class IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*

This text is machine translated.

Features

General dataDesign: Socket, straight | Flat cable terminal AS-InterfaceUL File Number: E223772 "for use in NFPA 79 Applications only"Electrical DataRated operating voltage: ≤ 32 V PELV ( AS-Interface )Rated operating current: ≤ 4 A AS-InterfaceProtection class IIIOvervoltage protection : Overvoltage category III.Compliance with standards and directivesCompliance Protection class EN 60529:2000Approvals and certificatesUL approved: CULus Listed, Type 1 enclosure Maximum permissible ambient temperature: Max. 55 °C (max. 131 °F)Ambient conditionsAmbient temperature: -25 ... 75 °C (-13 ... 167 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Pollution level 3Mechanical data:Protection class IP67 | IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*Connection: Flat cable AS-Interface: Insulation displacement | Connector: Socket M12 x 1 (V1)Materials Contacts: CuSn / Au Housing: PBT PC Cap nut: Stainless steel 1.4404 / AISI 316L (V4A) Fixing screw: Stainless steel 1.4305 / AISI 303 (V2A)Weight 45 gTightening torque for fixing screws: 1.65 NmNote: The flat cable connector that is not required is sealed with a seal.
