Name: Pepperl+Fuchs VBA-2A-G11-I-F 234993 Sensor & actuator box (active) Multi splitter 1 pc(s) Piece
Brand: Pepperl+Fuchs
SKU: 2630721

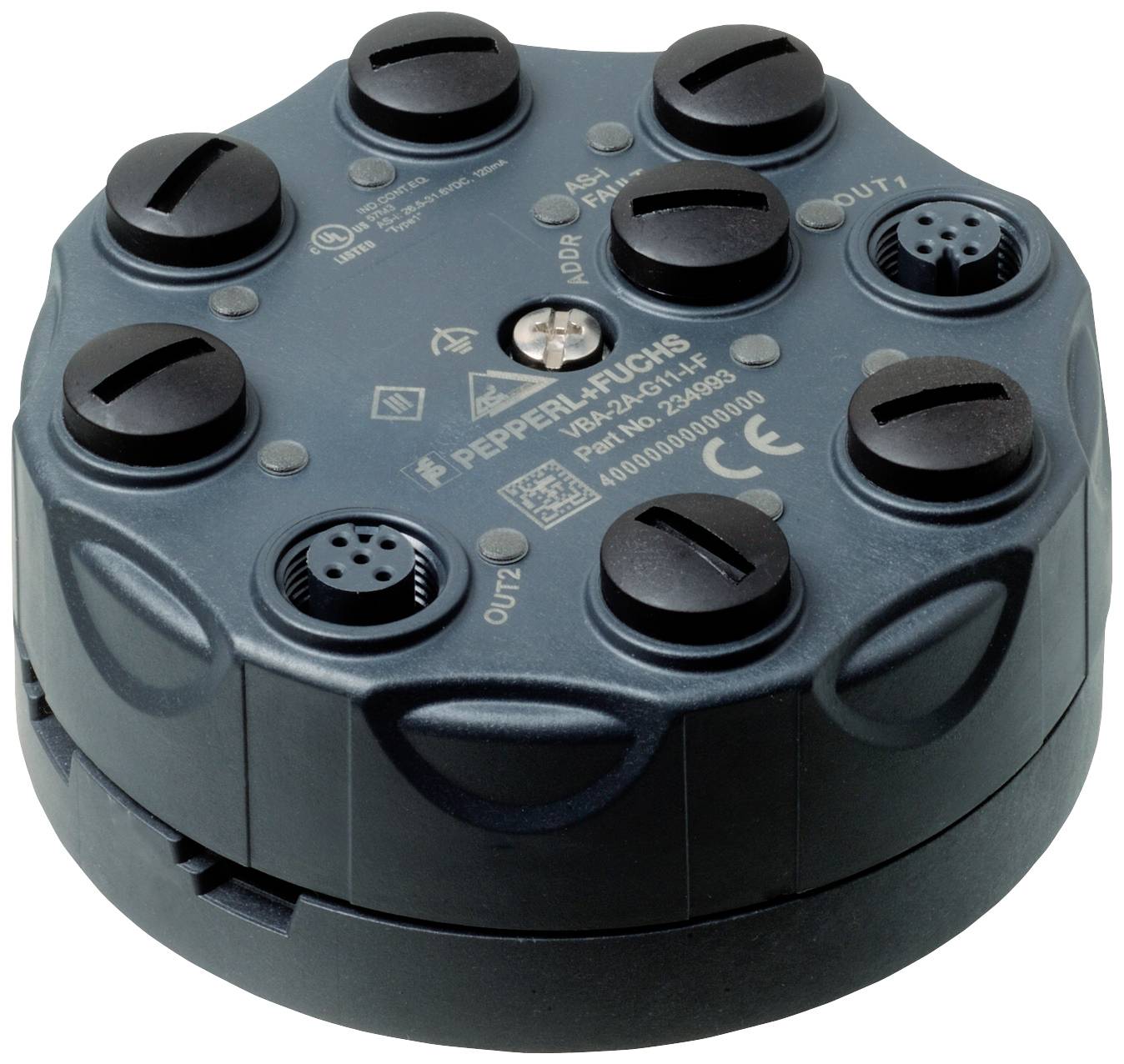

Black round sensor distributor with eight connections and markings on the top surface, by Pepperl+Fuchs, model number V1-G.

Image similar

Packaging type

Piece

Product type

Sensor & actuator box (active)

Type

VBA-2A-G11-I-F

Status indicator

LED

Connection

M12 socket

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Sensor & actuator box (active)

Type: VBA-2A-G11-I-F

Status indicator: LED

Connection: M12 socket

: IP68
IP69K

Max. temperature: 70 °C

Min. temperature: -25 °C

Connector type (distribution boxes): M12 socket

Case material: PBT PC

Weight: 200 g

Manufacturer part #: 234993

Content: 1 pc(s)

Features: Surge protection

Power rating (total): 100 mA

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2630721 Pepperl+Fuchs VBA-2A-G11-I-F 234993 Sensor & actuator box (active) Multi splitter 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2630721 Pepperl+Fuchs VBA-2A-G11-I-F 234993 Sensor & actuator box (active) Multi splitter 1 pc(s) Piece

Description

G11 analogueue module 2 analogueue outputs, AS-Interface specification: V3.0, protection class: IP68 / IP69K, protection class: EN 60529:2000, mounting: Mounting plate

This text is machine translated.

Features

General dataSubscriber type: Standard subscriberAs-Interface specification: V3.0Required gateway specification: ≥ V2.1UL file number: E223772Functional safety characteristicsMTTFd: 370 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsLED AS-i/FAULT: Status display; LED multi-color | green: Normal operation | red: Communication error | flashing yellow/red: Address 0 | flashing green/red: Peripheral errorLED ANALOGUEUE: Status output signal; LED yellow | yellow: 0 mA ≤ I ≤ 23 mA | yellow flashing: Wire break or I > 23 mAElectrical DataRated operating voltage: 26.5 ... 31.6 V from AS-InterfaceRated operating current ≤ 100 mAProtection class IIIOvervoltage protection : Ue: Overvoltage category III, safely separated voltage supplies (PELV)OutputNumber/type: 2 analogue outputs (current), 0 ... 20 mASupply: From AS-InterfaceLoad: Max. 600 ΩResolution: 6 µAAccuracy: 0.15% of the final valueTemperature influence: 1 µA/K.ComplianceElectromagnetic compatibility Directive 2014/30/EU: EN 62026-2:2013ComplianceProtection class EN 60529:2000Fieldbus standard: EN 62026-2:2013Emitted interference: EN 61000-6-4:2007As-Interface: EN 62026-2:2013IMMUNITY: EN 61000-6-2:2005, EN 61326-1:2006, IEC 62026-2:2008Programming notesProfile: S-7.3.5IO code: 7ID code: 3ID1 Code: FID2 code: 5Data bit (function via AS-Interface): The data value is transferred according to AS-Interface profile 7.3.Parameter bit (programmable via AS-i): Function P0: Watchdog: | P0=1 (default), watchdog active | P0=0, watchdog inactive P1: Not used P2: Message of peripheral error: | P2=1 (default), peripheral error is reported | P2=0, peripheral error is not reported P3: Not usedAmbient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Relative humidity: 85 % , non-condensingClimatic conditions: Indoor use onlyOperating height: ≤ 2000 m above sea levelPollution level 3Mechanical data:Protection class IP68/IP69KConnection: Insulation displacement technology, AS-i flat cable | Outputs: M12 round connectorMaterials Housing: PBT PC Fixing screw: Stainless steel 1.4305 / AISI 303 (V2A)Weight 200 gHousing screw tightening torque 1.8 NmTightening torque for cable gland: 0.4 NmMounting: Mounting plate
