Name: Pfannenberg Hooter 23150630007 PRO 10-3G/3D 10-60V DC Multi-tone signal 24 V DC 116 dB
Brand: Pfannenberg
SKU: 3335249
Availability: BackOrder

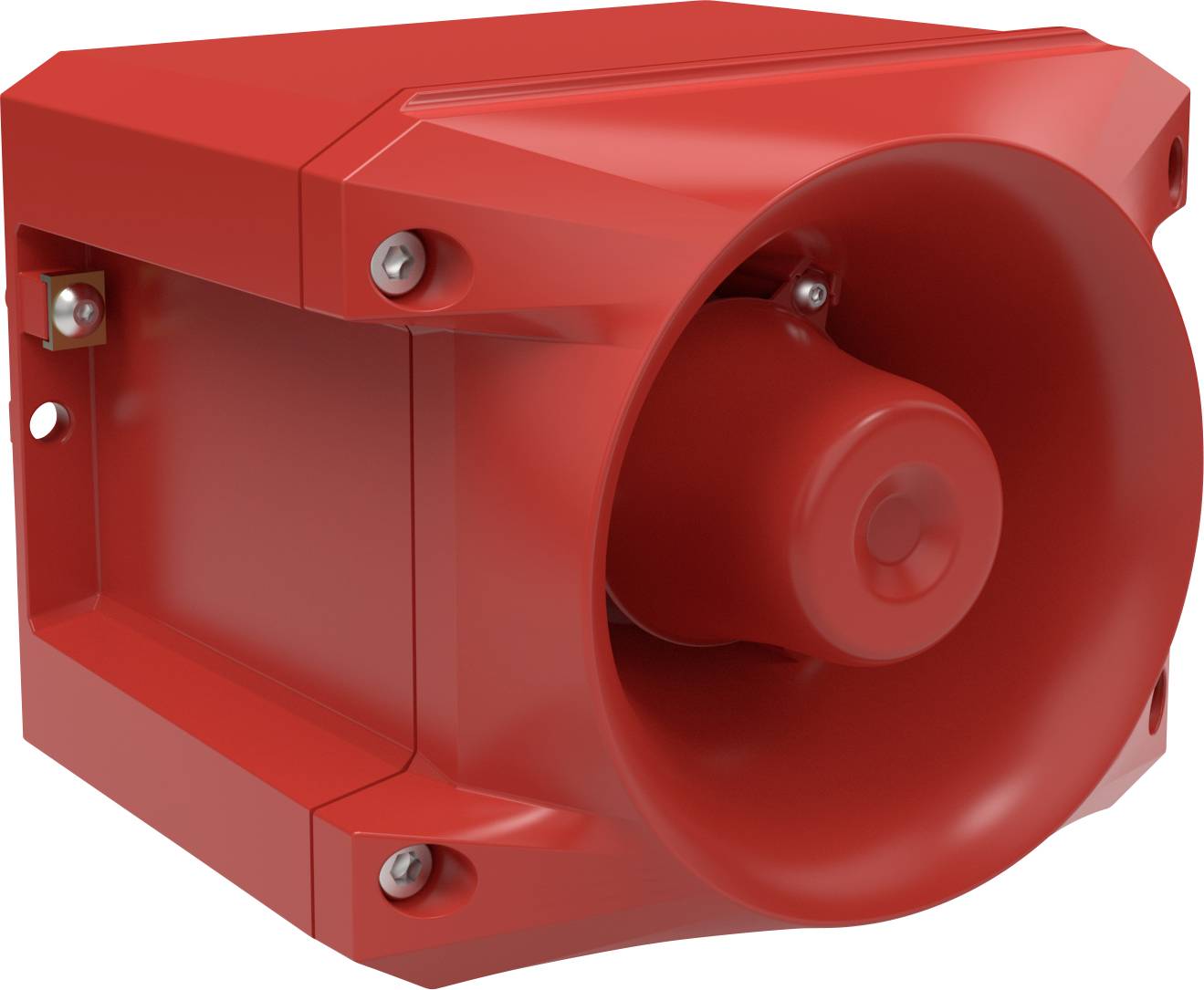

Red signal horn or loudspeaker, typically used for alerting or warning in buildings.

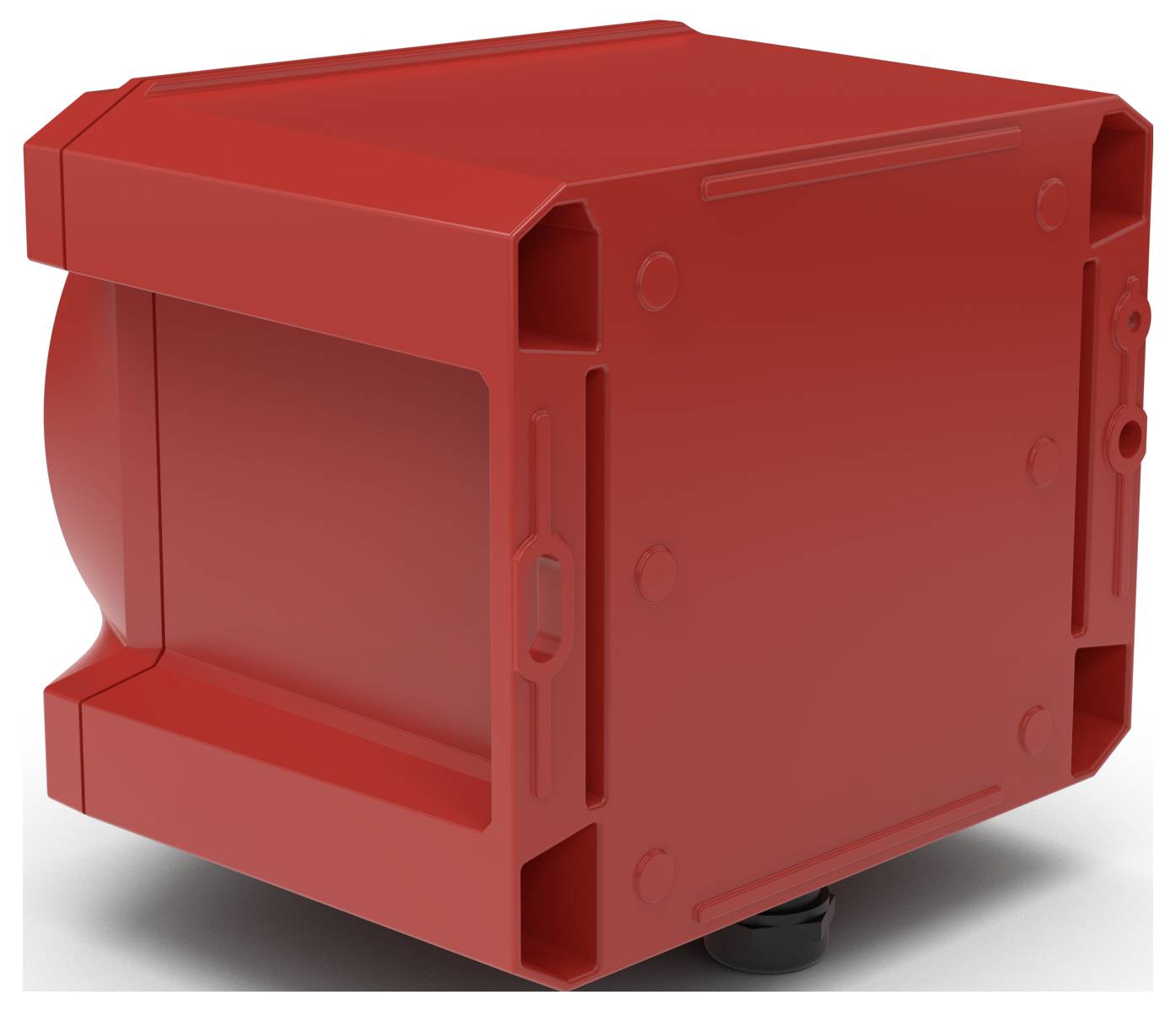

Red, rectangular plastic box with removable covers and mounting points, suitable for industrial applications.

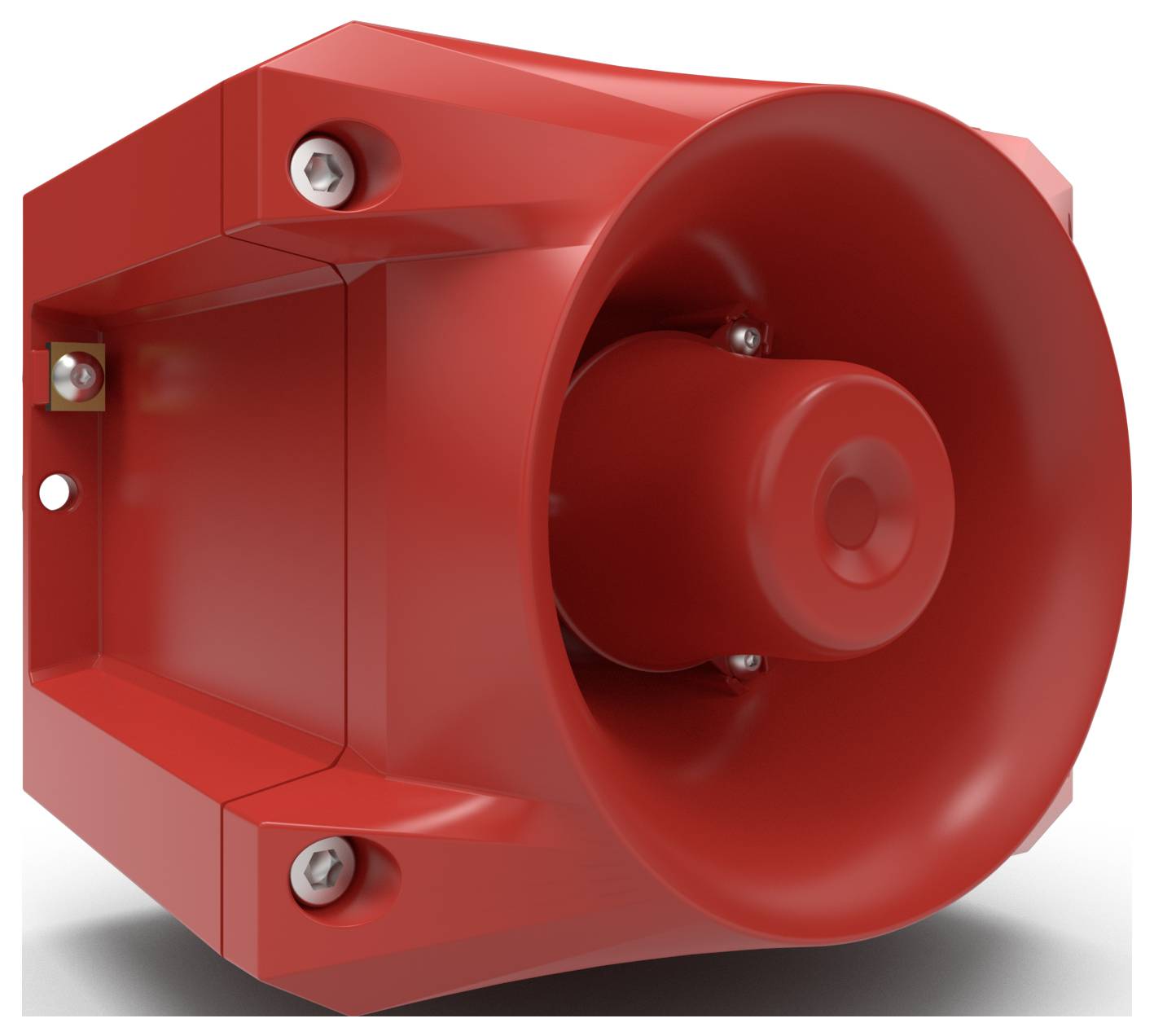

Red siren with circular loudspeaker, mounted on a metallic bracket. Suitable for loud alarms in industrial environments.

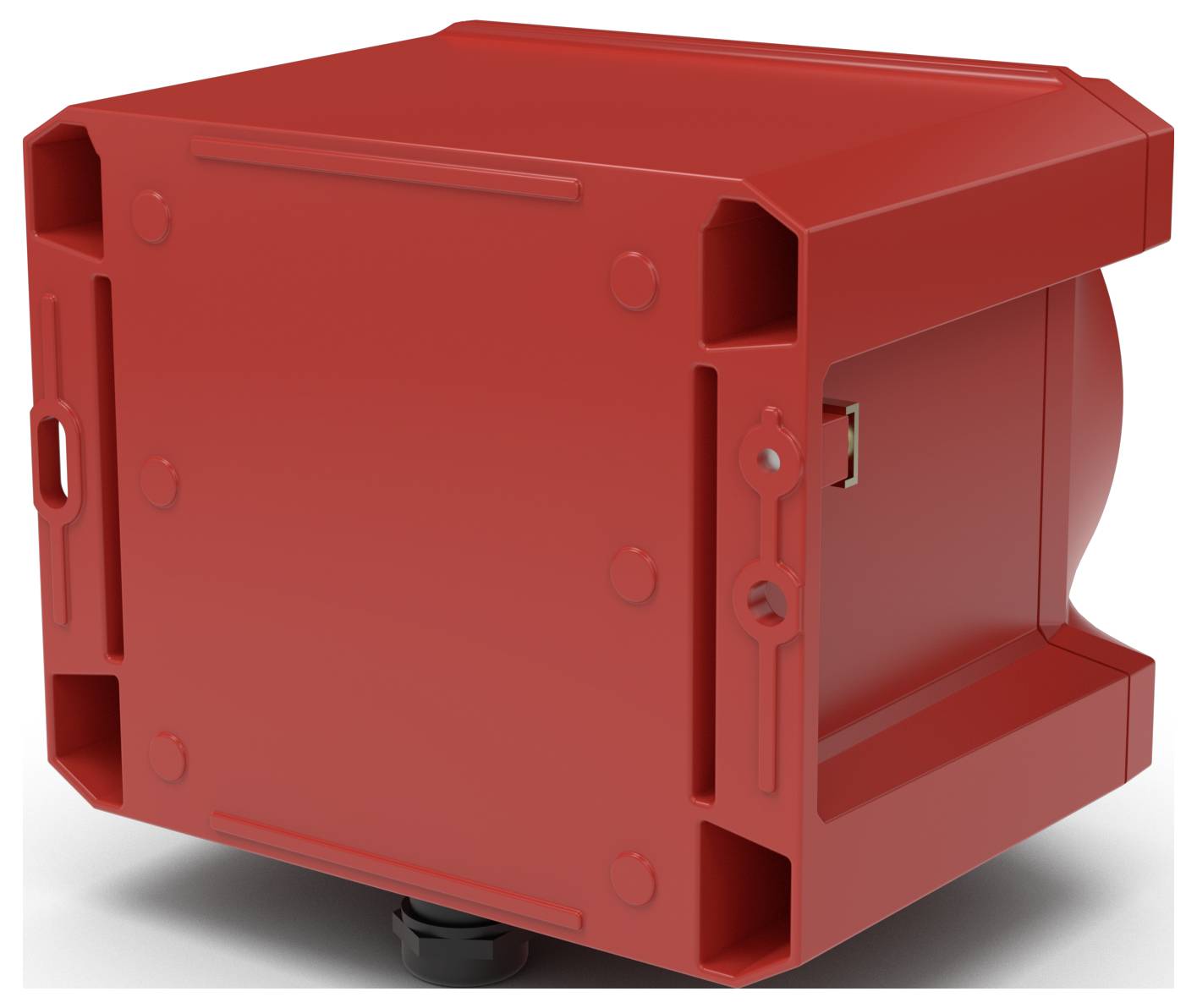

Red plastic housing with rounded corners, looking like a protective frame or cover.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 649.00 / piece)

€ 649.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Hooter

Operating voltage: 24 V DC

Max. current consumption: 0.96 A

Signal type: Multi-tone signal

No. of tones: 80

: IP67

Case colour: Red

Material: Metal

Type: PRO 10-3G/3D 10-60V DC

Noise emission (max.): 116 dB

: 24 V

: Red

: DC

: 116 dB

: 0.96 A

: Metal

: 80

: IP67

: 2

: 22

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3335249 Pfannenberg Hooter 23150630007 PRO 10-3G/3D 10-60V DC Multi-tone signal 24 V DC 116 dB

User & Safety Instructions

User & Safety Instructions 3335249 Pfannenberg Hooter 23150630007 PRO 10-3G/3D 10-60V DC Multi-tone signal 24 V DC 116 dB

Description

Universal sound generator for indoor and outdoor use
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- Explosion-proof - For use in hazardous areas in zone 2 (3G) and zone 22 (3D)
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
- Suitable for safe fire alarm - VdS and EN 54-3 certified
