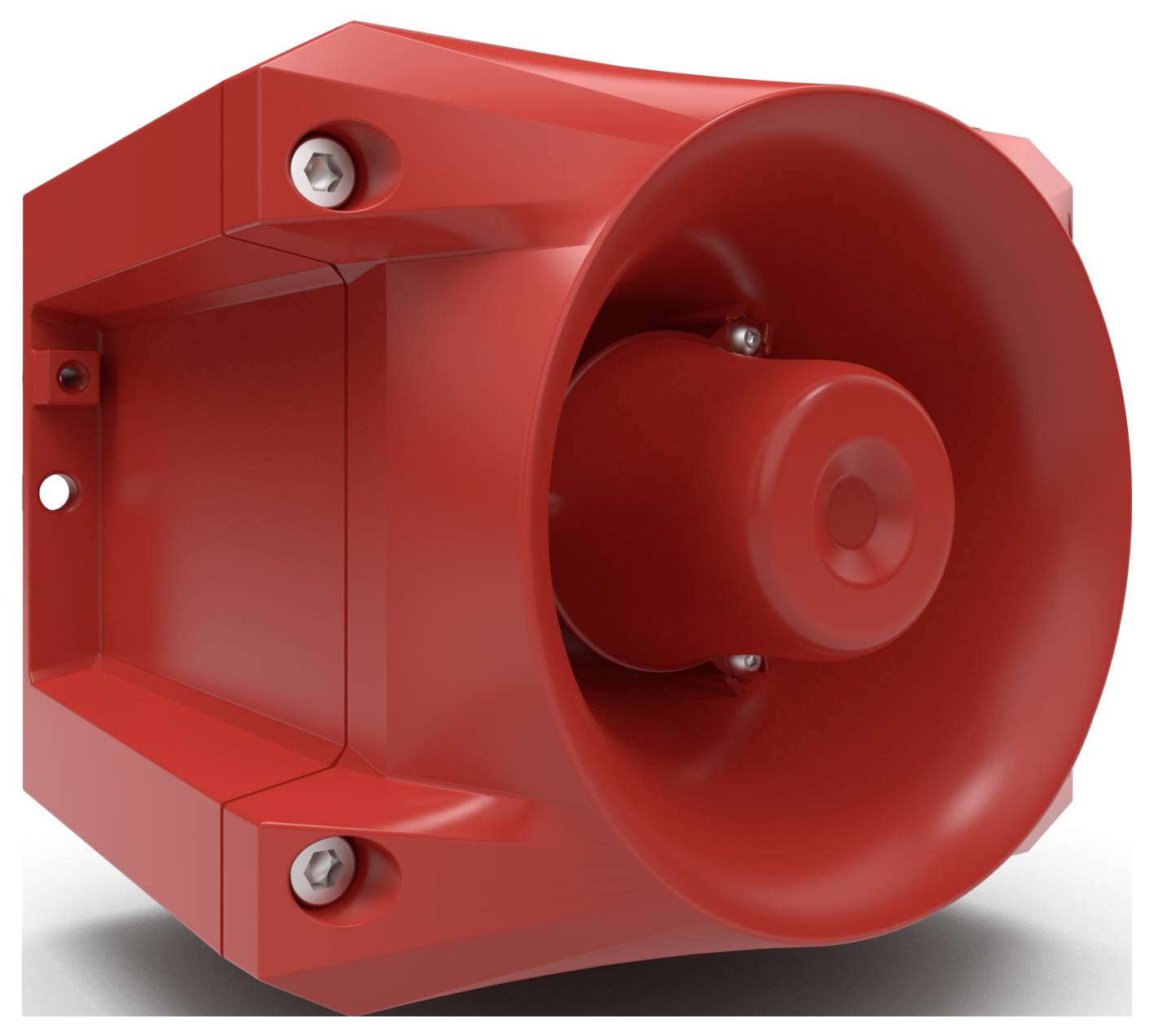

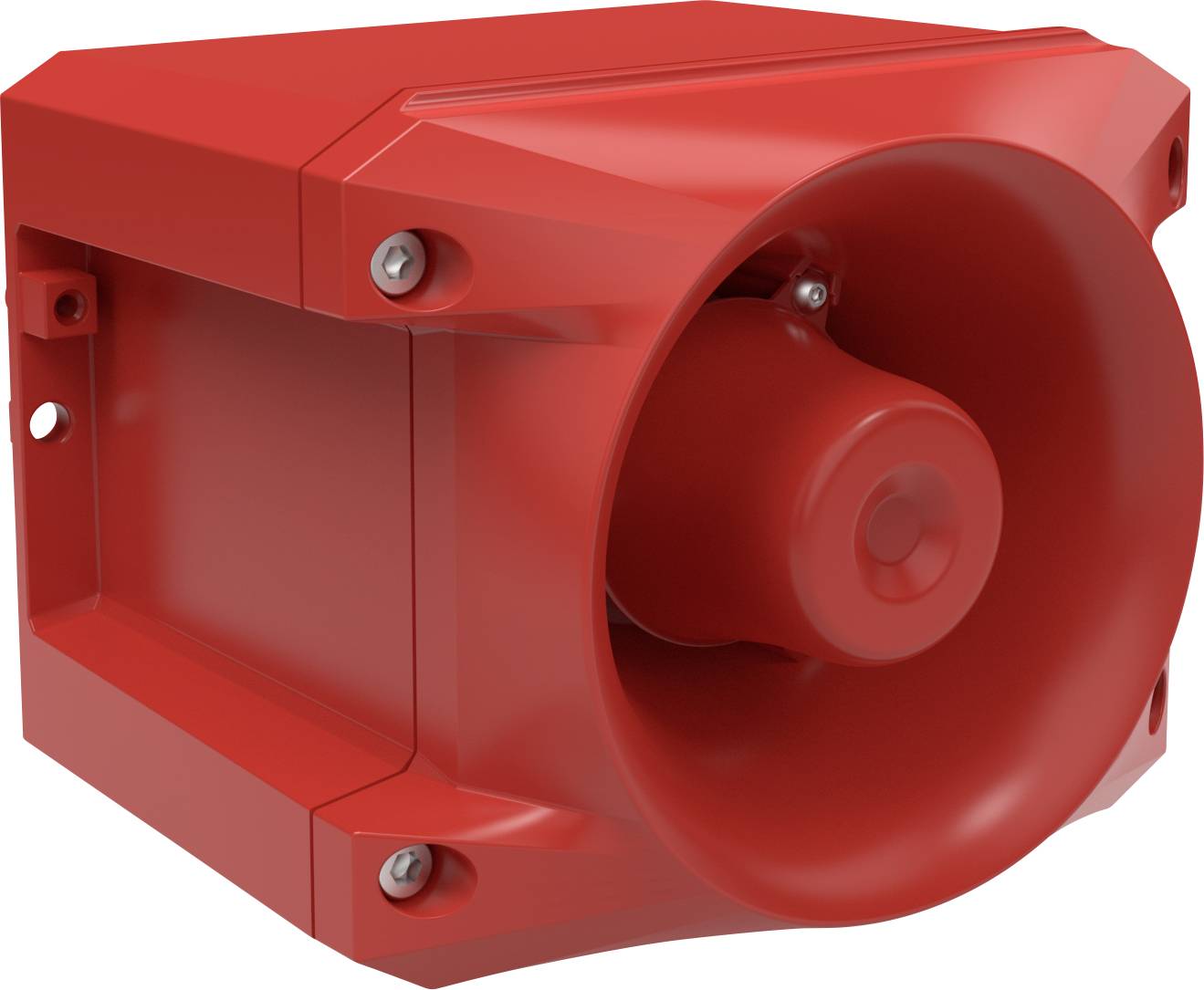

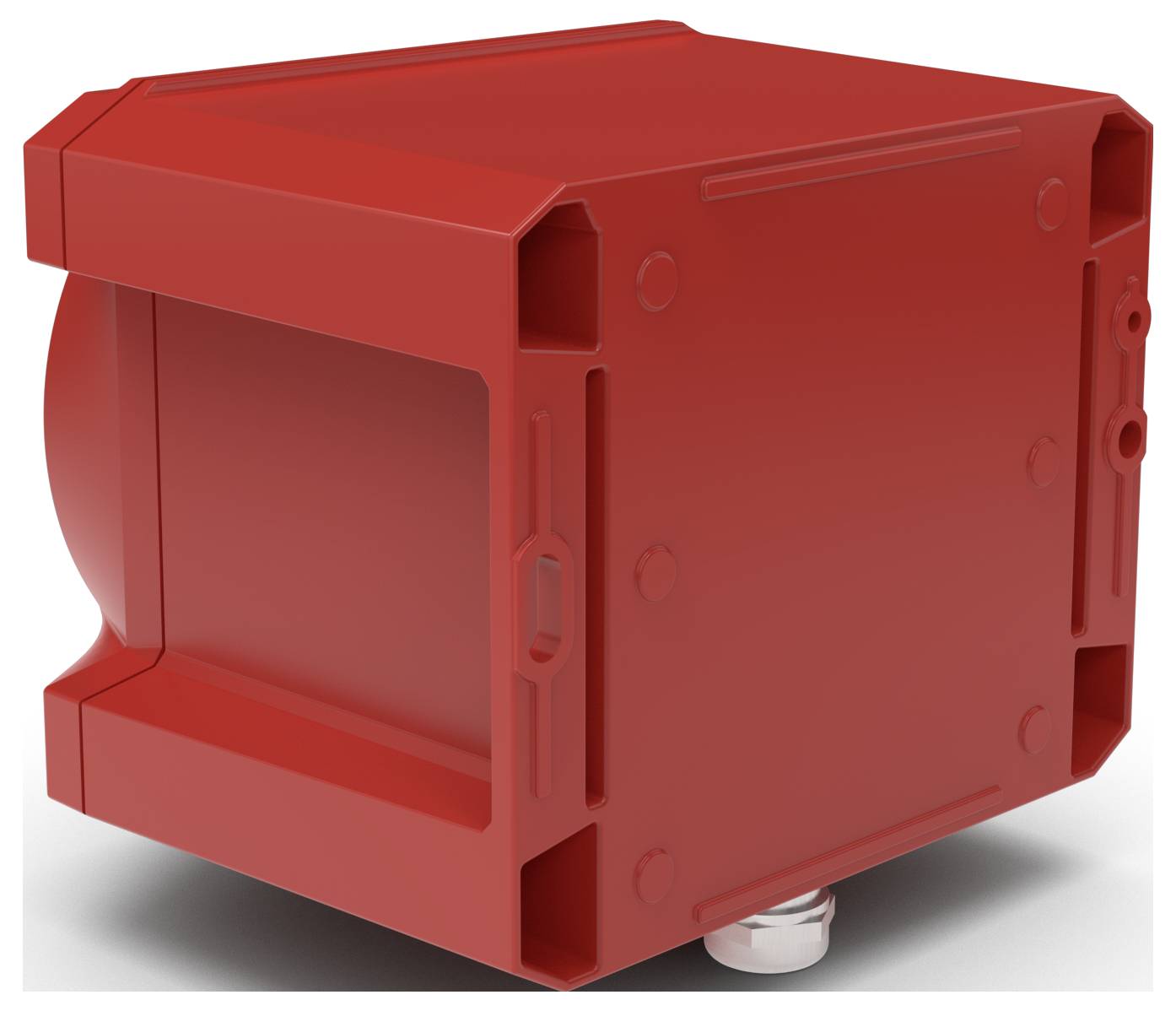

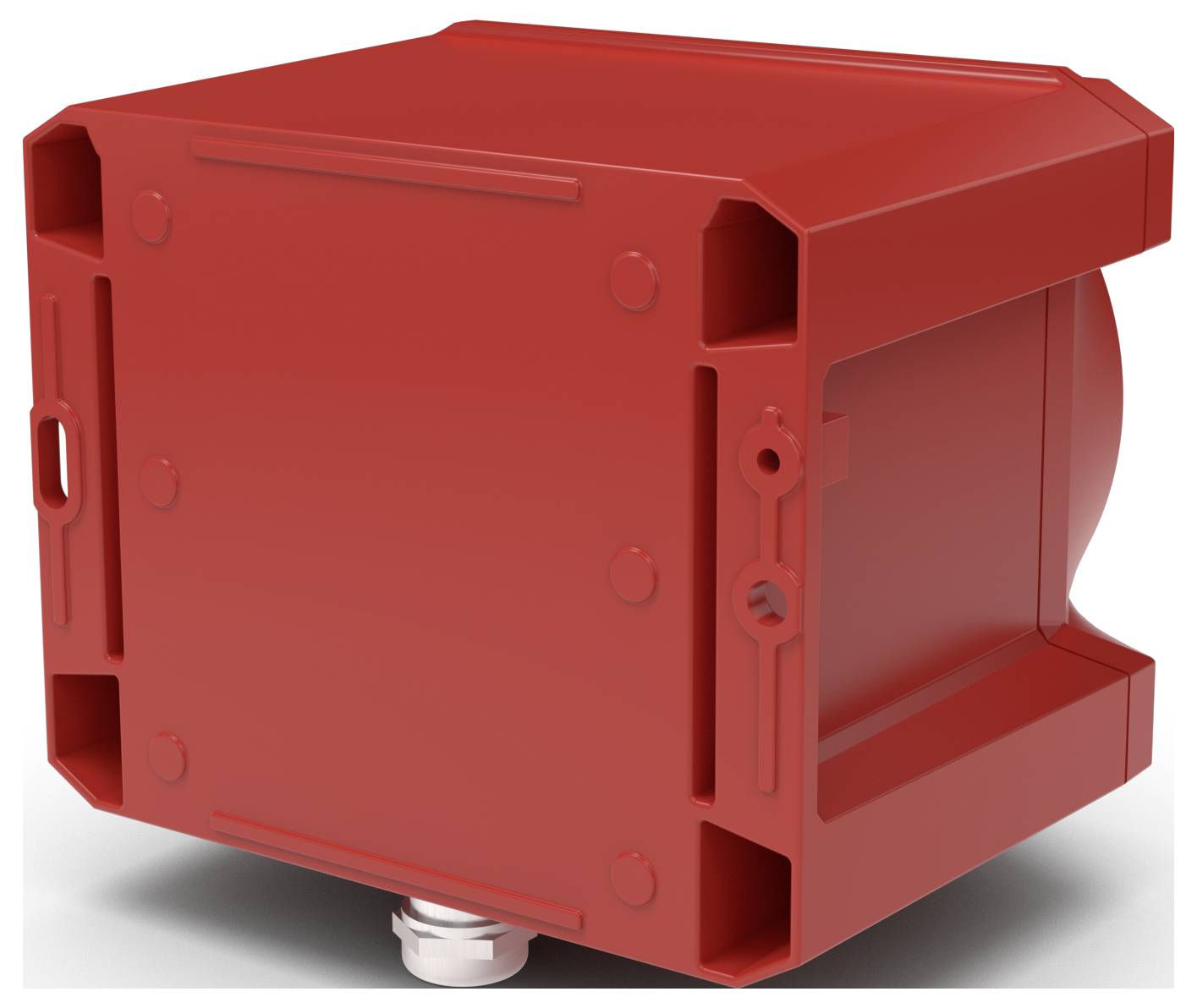

Pfannenberg Hooter 23150630601 PRO 10-SIL 10-60V DC Multi-tone signal 24 V DC 116 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 659.66 / piece)
€ 659.66
plus VAT.
Technical specifications
- Product type
Hooter
- Operating voltage
24 V DC
- Max. current consumption
0.96 A
- Signal type
Multi-tone signal
- No. of tones
80
IP67
- Case colour
Red
- Material
Metal
- Type
PRO 10-SIL 10-60V DC
- Noise emission (max.)
116 dB
24 V
Red
DC
116 dB
0.96 A
Metal
80
TRUE
IP67
4X
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3335251 Pfannenberg Hooter 23150630601 PRO 10-SIL 10-60V DC Multi-tone signal 24 V DC 116 dB
User & Safety Instructions
User & Safety Instructions 3335251 Pfannenberg Hooter 23150630601 PRO 10-SIL 10-60V DC Multi-tone signal 24 V DC 116 dB
Description
Universal sound generator for indoor and outdoor use
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- SIL 2/PL d - Meets the functional safety requirements through safety design and diagnostic channel
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
- Suitable for safe fire alarm - VdS and EN 54-3 certified
