Name: Pfannenberg Hooter 23150640601 PRO 10-SIL 95-265V AC Multi-tone signal 230 V AC 116 dB
Brand: Pfannenberg
SKU: 3335252
Availability: BackOrder

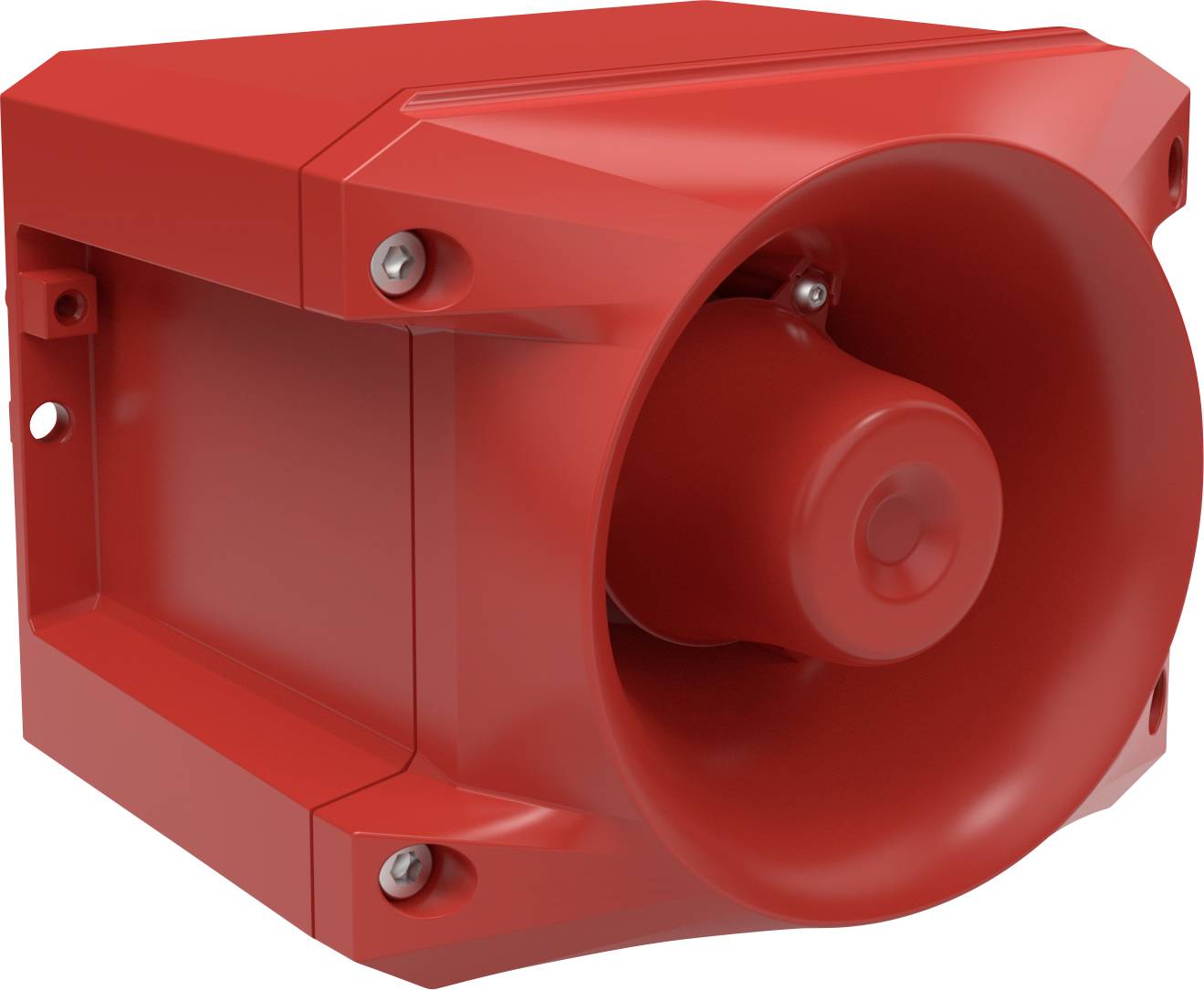

Red, square alarm signalling device with a speaker, commonly used in security systems.

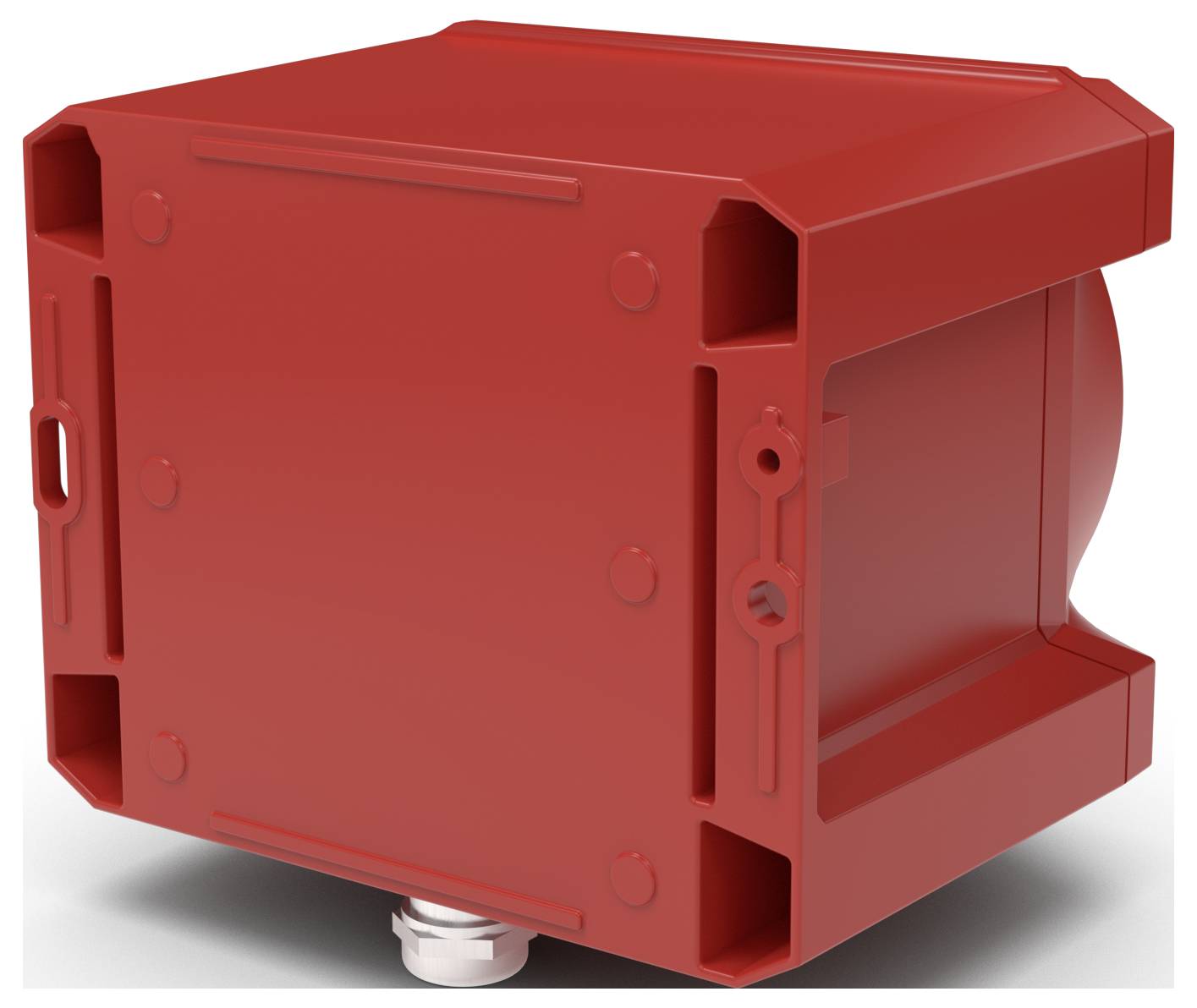

Red, rectangular casing with rounded corners, possibly an electronic device or part of a technical installation.

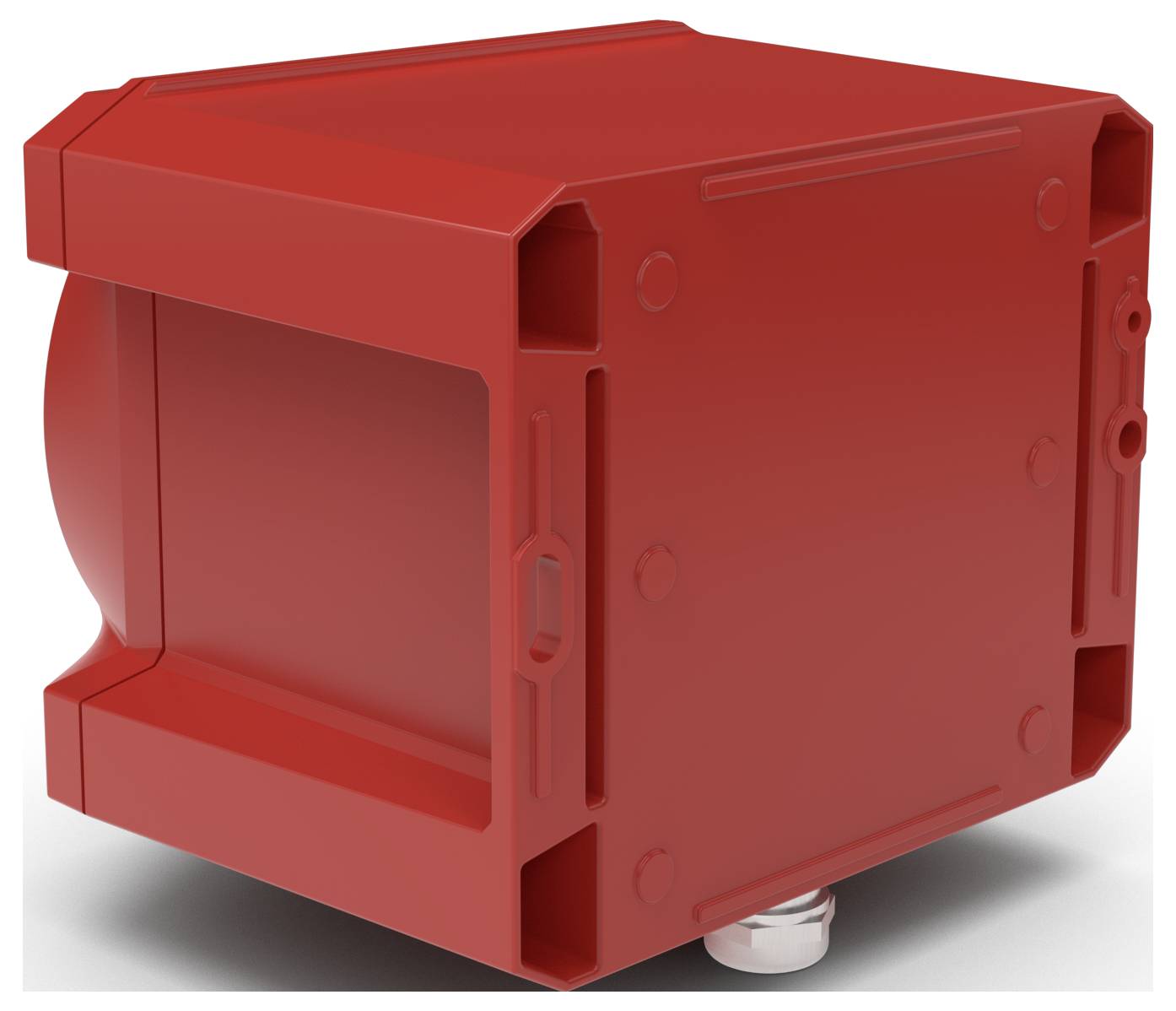

Red, cube-shaped casing with rounded corners and a connection point on the underside.

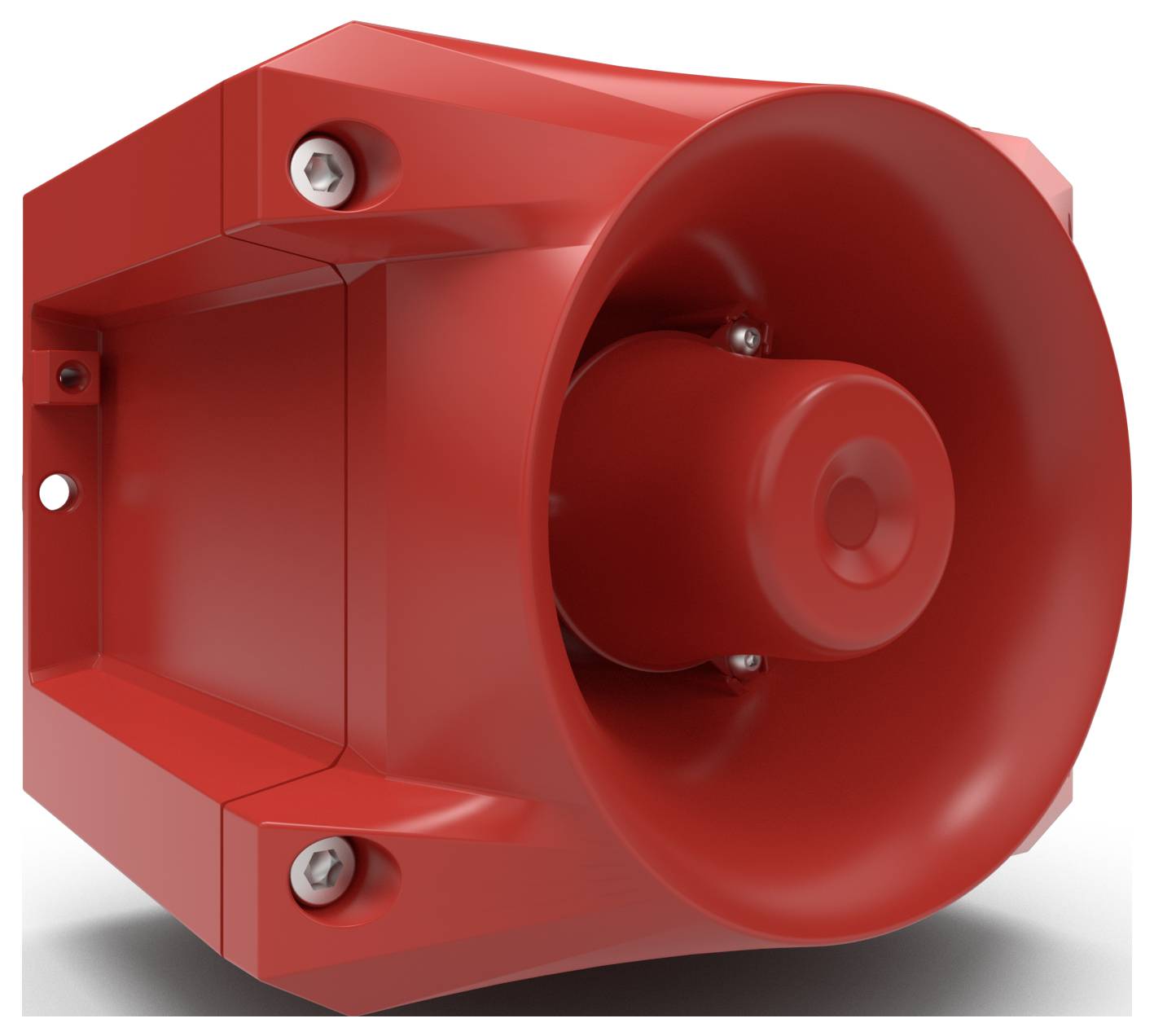

Red industrial siren in close-up, showing details such as bolts and speaker horn. Used for warning in emergencies.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 839.00 / piece)

€ 839.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Hooter

Operating voltage: 230 V AC

Max. current consumption: 0.145 A

Signal type: Multi-tone signal

No. of tones: 80

: IP67

Case colour: Red

Material: Metal

Type: PRO 10-SIL 95-265V AC

Noise emission (max.): 116 dB

: 230 V

: Red

: AC

: 116 dB

: 0.145 A

: Metal

: 80

: TRUE

: IP67

: 4X

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3335252 Pfannenberg Hooter 23150640601 PRO 10-SIL 95-265V AC Multi-tone signal 230 V AC 116 dB

User & Safety Instructions

User & Safety Instructions 3335252 Pfannenberg Hooter 23150640601 PRO 10-SIL 95-265V AC Multi-tone signal 230 V AC 116 dB

Description

Universal sound generator for indoor and outdoor use
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- SIL 2/PL d - Meets the functional safety requirements through safety design and diagnostic channel
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
- Suitable for safe fire alarm - VdS and EN 54-3 certified

This text is machine translated.
