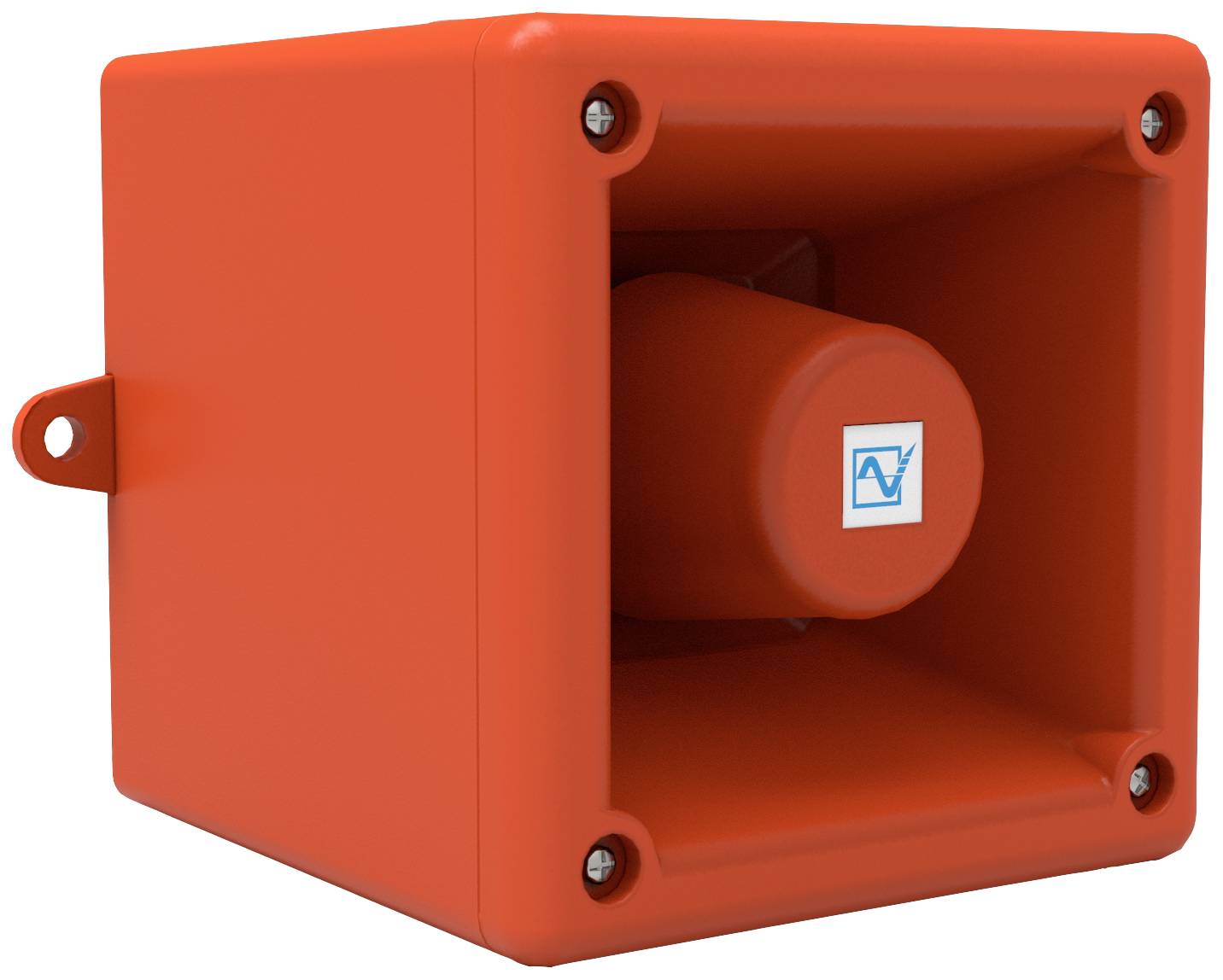

Pfannenberg Hooter 32033800000 IS-A105N 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 755.00 / piece)
€ 755.00
incl. VAT
14-day return policy included
Technical specifications
- Number of tones: 49
- Ex-zone gas: 0, 1, 2
- Housing color: Red
- Volume 103 dB
- Nominal voltage: 24 V/DC
- Protection class (IP) IP66
- Current consumption: 0.25 A
- Housing material: Plastic
- Product type
Hooter
- Operating voltage
24 V DC
- Max. current consumption
0.25 A
- No. of tones
49
IP66
- Case colour
Red
- Material
Plastic
- Type
IS-A105N
- Volume
103 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2890786 Pfannenberg Hooter 32033800000 IS-A105N 24 V DC
User & Safety Instructions
User & Safety Instructions 2890786 Pfannenberg Hooter 32033800000 IS-A105N 24 V DC
Description
Ex ATEX transducer, 103dB, intrinsically safe for zones 0, 1 and 2
These transducers have their application in workplaces where dangerous, explosive atmospheres can be expected
Free choice of 49 different tones, UKOOA/PFEER compliant
High sound pressure level can be reduced by up to 15 dB(A) via a potentiometer
Up to 2 tones can be selected externally to signal different hazard messages
Can be used with direct voltages between 10 and 28 V DC, nominal voltage 24 V DC
An input protection prevents damage if the connection is faulty without Zener barrier or Glavian separation
Can also be used in the open through impact-resistant housing made of self-extinguishing ABS in the protection class IP 66
Categories 1G, 2G and 3G (zones 0, 1 and 2)
This text is machine translated.
These transducers have their application in workplaces where dangerous, explosive atmospheres can be expected
Free choice of 49 different tones, UKOOA/PFEER compliant
High sound pressure level can be reduced by up to 15 dB(A) via a potentiometer
Up to 2 tones can be selected externally to signal different hazard messages
Can be used with direct voltages between 10 and 28 V DC, nominal voltage 24 V DC
An input protection prevents damage if the connection is faulty without Zener barrier or Glavian separation
Can also be used in the open through impact-resistant housing made of self-extinguishing ABS in the protection class IP 66
Categories 1G, 2G and 3G (zones 0, 1 and 2)
This text is machine translated.
