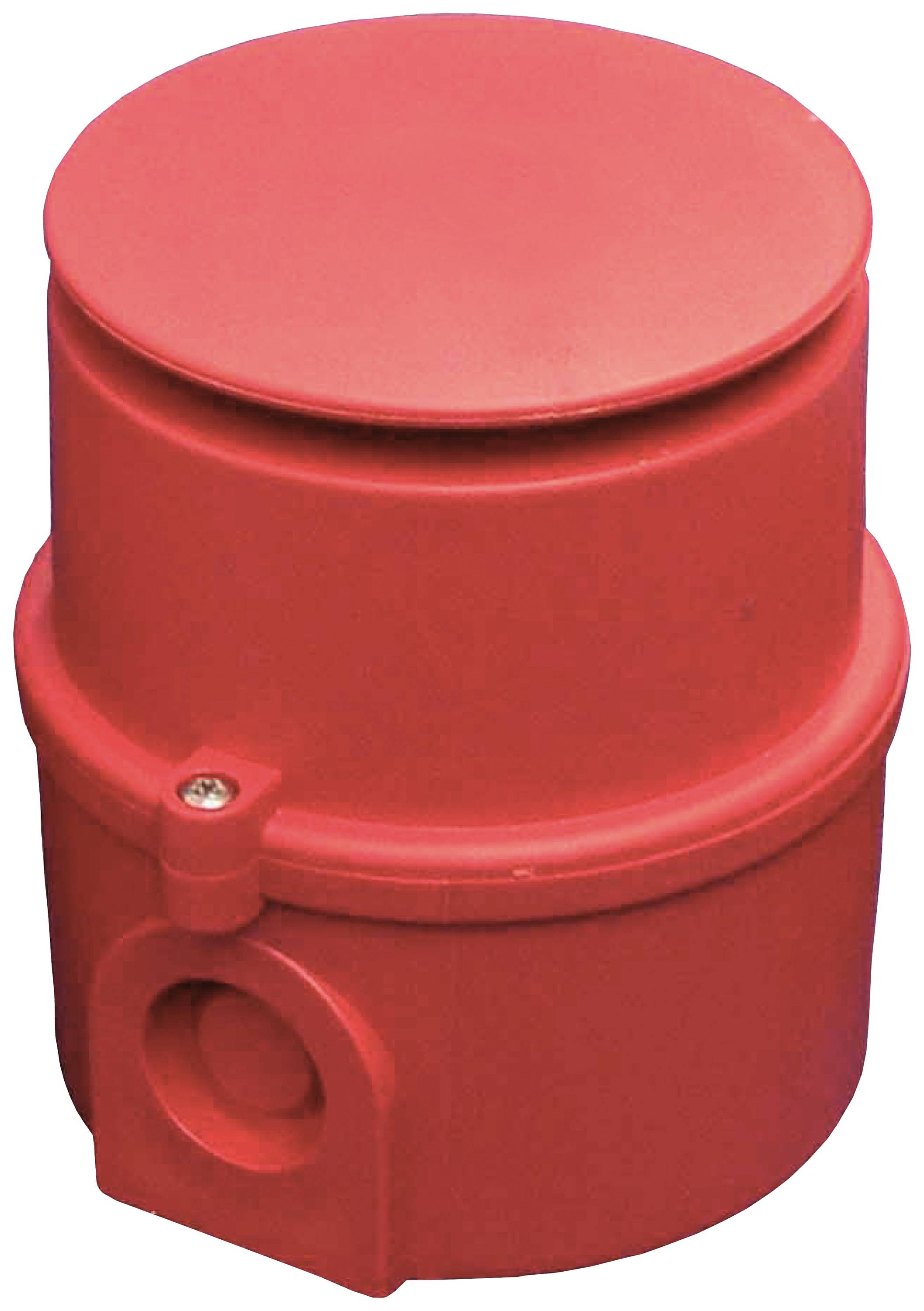

Pfannenberg Hooter 32034800000 IS-mA1 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Technical specifications
- Number of tones: 49
- Ex-zone gas: 0, 1, 2
- Housing color: Red
- Volume 100 dB
- Nominal voltage: 24 V/DC
- Protection class (IP) IP65
- Current consumption: 0.25 A
- Housing material: Plastic
- Product type
Hooter
- Operating voltage
24 V DC
- Max. current consumption
0.25 A
- No. of tones
49
IP65
- Case colour
Red
- Material
Plastic
- Type
IS-mA1
- Volume
100 dB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2890787 Pfannenberg Hooter 32034800000 IS-mA1 24 V DC
User & Safety Instructions
User & Safety Instructions 2890787 Pfannenberg Hooter 32034800000 IS-mA1 24 V DC
Description
Ex ATEX transducer, 102dB, intrinsically safe for zones 0, 1 and 2
Very economical acoustic alarm devices
Compact design with only 8mm diameter
Operation of certified Zener barriers or galvanic isolators
Loud 49 tones in 102 dB(A)
Due to low power consumption very good for fire alarm systems
And direct control
Self-synchronizing sound generator for clear sound perceptibility
2 different tones can be controlled externally
Volume control
This text is machine translated.
Very economical acoustic alarm devices
Compact design with only 8mm diameter
Operation of certified Zener barriers or galvanic isolators
Loud 49 tones in 102 dB(A)
Due to low power consumption very good for fire alarm systems
And direct control
Self-synchronizing sound generator for clear sound perceptibility
2 different tones can be controlled externally
Volume control
This text is machine translated.
