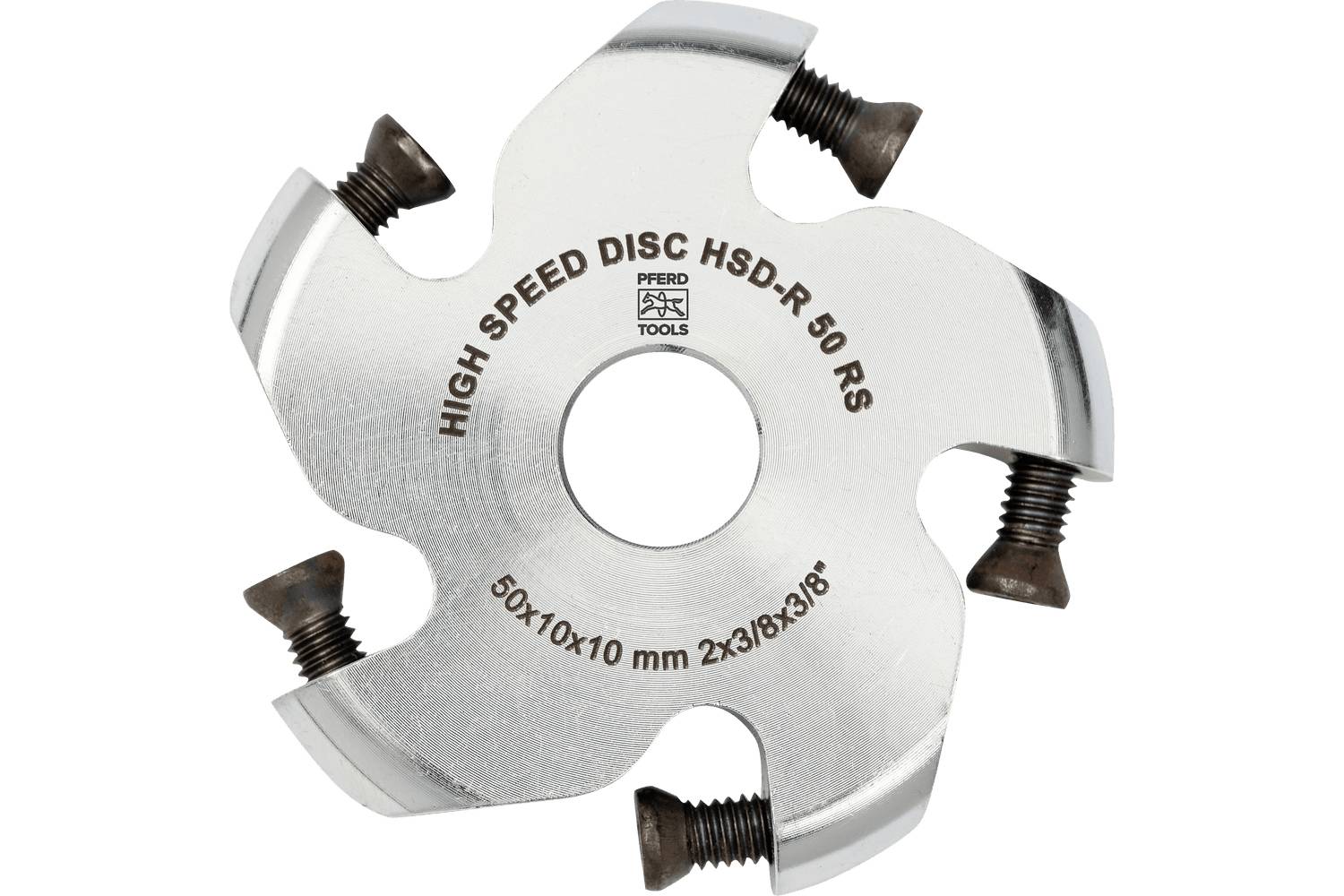

PFERD TOOLS HSD-R 50 RS ALUMASTER 22000032 Cutting disc 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS high-performance milling disc ALUMASTER HSD-R Ø 50mm RS for robot use Aluminium machining HICOAT coated
- Exceptionally high machining capacity
- For use in robots
Technical specifications
- - RPM to, soft non-ferrous metals: 28000 RPM
- - RPM to, thermopl. Synthetic, fiber-optic. (GFK/CFK) fiber share less than 40%: 28000 RPM
- - Metric width: 9 mm
- - ø Outer metric: 50 mm
- Product type
Cutting disc
- Content
1 pc(s)
- (Ø)
50 mm
- Rotational speed (max.)
28000 U/min
- Dim
(Ø) 50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772658 PFERD TOOLS HSD-R 50 RS ALUMASTER 22000032 Cutting disc 50 mm 1 pc(s)
Description
Special tool for machining aluminum alloys in robot-guided applications. Also suitable for circumferential milling and for milling out root seams. Design HSD-R for flat and radial use. High speed disc ALUMASTER RS including mounting screws.
Benefits:
- Exceptionally high machining capacity.
Application recommendations:
- The tool is primarily designed for use on aluminum, aluminum kneading alloys and cast aluminum. Non-ferrous metals of low strength and fiber-reinforced plastics can also be worked on. This must be checked in individual cases in connection with the application.
Editable materials:
- Aluminium
- Brass
- Bronze
- Copper
- Fibre-reinforced thermoplastics (GRP, CFK)
- Fiber reinforced thermoset (GRP, CFK) fiber content ≤ 40%
- Fiber reinforced thermoset (GRP, CFK) fiber content > 40 %
- Hard aluminum alloys
- Non-ferrous metal hard
- Plastics
- Soft aluminum alloys
- Thermoplastic
- Tough aluminum alloys
- Zinc
Processing tasks:
- Milling
- Cut out
- Surface treatment
- Weld seam processing
Drive types:
- robots
- Machining centers
This text is machine translated.
Benefits:
- Exceptionally high machining capacity.
Application recommendations:
- The tool is primarily designed for use on aluminum, aluminum kneading alloys and cast aluminum. Non-ferrous metals of low strength and fiber-reinforced plastics can also be worked on. This must be checked in individual cases in connection with the application.
Editable materials:
- Aluminium
- Brass
- Bronze
- Copper
- Fibre-reinforced thermoplastics (GRP, CFK)
- Fiber reinforced thermoset (GRP, CFK) fiber content ≤ 40%
- Fiber reinforced thermoset (GRP, CFK) fiber content > 40 %
- Hard aluminum alloys
- Non-ferrous metal hard
- Plastics
- Soft aluminum alloys
- Thermoplastic
- Tough aluminum alloys
- Zinc
Processing tasks:
- Milling
- Cut out
- Surface treatment
- Weld seam processing
Drive types:
- robots
- Machining centers
This text is machine translated.
Hints
The RS version is exclusively intended for robot-guided use.
