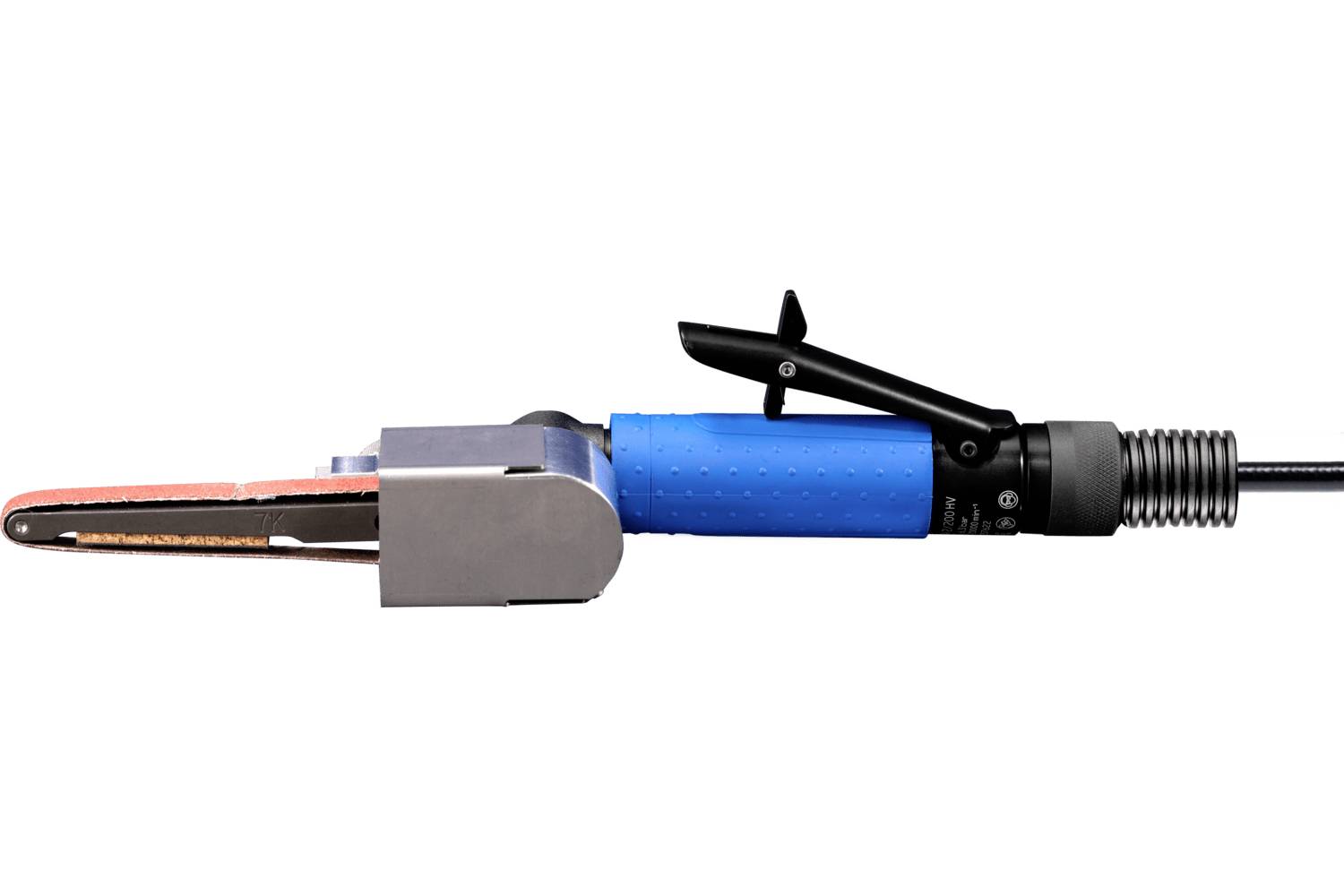

PFERD TOOLS PBA 2/200 HV Pneumatic belt sander
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS compressed air belt sander PBA 2/200 HV tape length: 305 mm x width: 3-16 mm 22 m/s 230 watt
- Power output 230 Watts
- Valve version: Lever
- Design: Incl. belt grinding attachment arm
Technical specifications
- - Operating pressure: 6.3 bar
- - Power output: 230 watts
- - Belt speed of 22 m/s.
- - Valve version: Lever
- - Design: Incl. belt grinding attachment arm
- - Metric width: 30 mm
- - Air consumption, idle: 0.55 m³/min.
- - Air consumption, with load: 0.45 m³/min.
- - Length metric: 290 mm
- - Number of oil drops [min]: 3 drops
- - Net weight: 0,687 kg
- - Inner ø supply hose: 6 mm
- - Exhaust air outlet: Rear
- - Height: 75 mm
- Product type
Pneumatic belt sander
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773020 PFERD TOOLS PBA 2/200 HV Pneumatic belt sander
Description
The air outlet of the compressed air drive is located at the rear. Through the lever valve, the drive has a dead man gear. 1 m and 2.5 m air supply hose with 1/4" thread connection and plug-in socket with thread (STGI) , 1 wrench (1x SKS size 4 mm), protective cover. Belt sander incl. BSVAK 9/9 x 305 belt sander arm attachment.
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- Handy, compact shape.
This text is machine translated.
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- Handy, compact shape.
This text is machine translated.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
