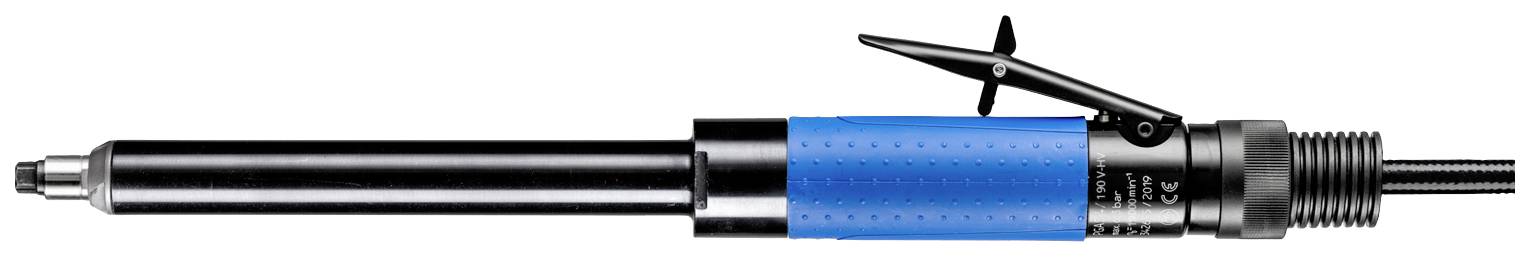

PFERD TOOLS PGAS 4/190 V-HV 80105170 Pneumatic straight grinder 370 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsSafe working by dead man switchingIdeal for use in hard to reach places
Technical specifications
- Exhaust outlet: RearSpeed: 19000 RPMCollet chuck Ø 6 mmHeight: 39 mmInternal Ø Supply air hose 8 mmAir consumption (idle): 0.78 m³/min.Air consumption (at load): 0.72 m³/min.
- Product type
Pneumatic straight grinder
370 W
- Recess diameter
6 mm
- Length
445 mm
- Idle speed
19000 U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632087 PFERD TOOLS PGAS 4/190 V-HV 80105170 Pneumatic straight grinder 370 W
User & Safety Instructions
User & Safety Instructions 2632087 PFERD TOOLS PGAS 4/190 V-HV 80105170 Pneumatic straight grinder 370 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The compressed air drive may only be used with oil. 1 m from and 2.5 m supply air hose with 1/4" external thread connection and plug-in socket with thread (STGI), collet chuck 6 mm, 2 clamping keys. Due to its extended design, the drive is optimally suitable for working in difficult accessible places.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
