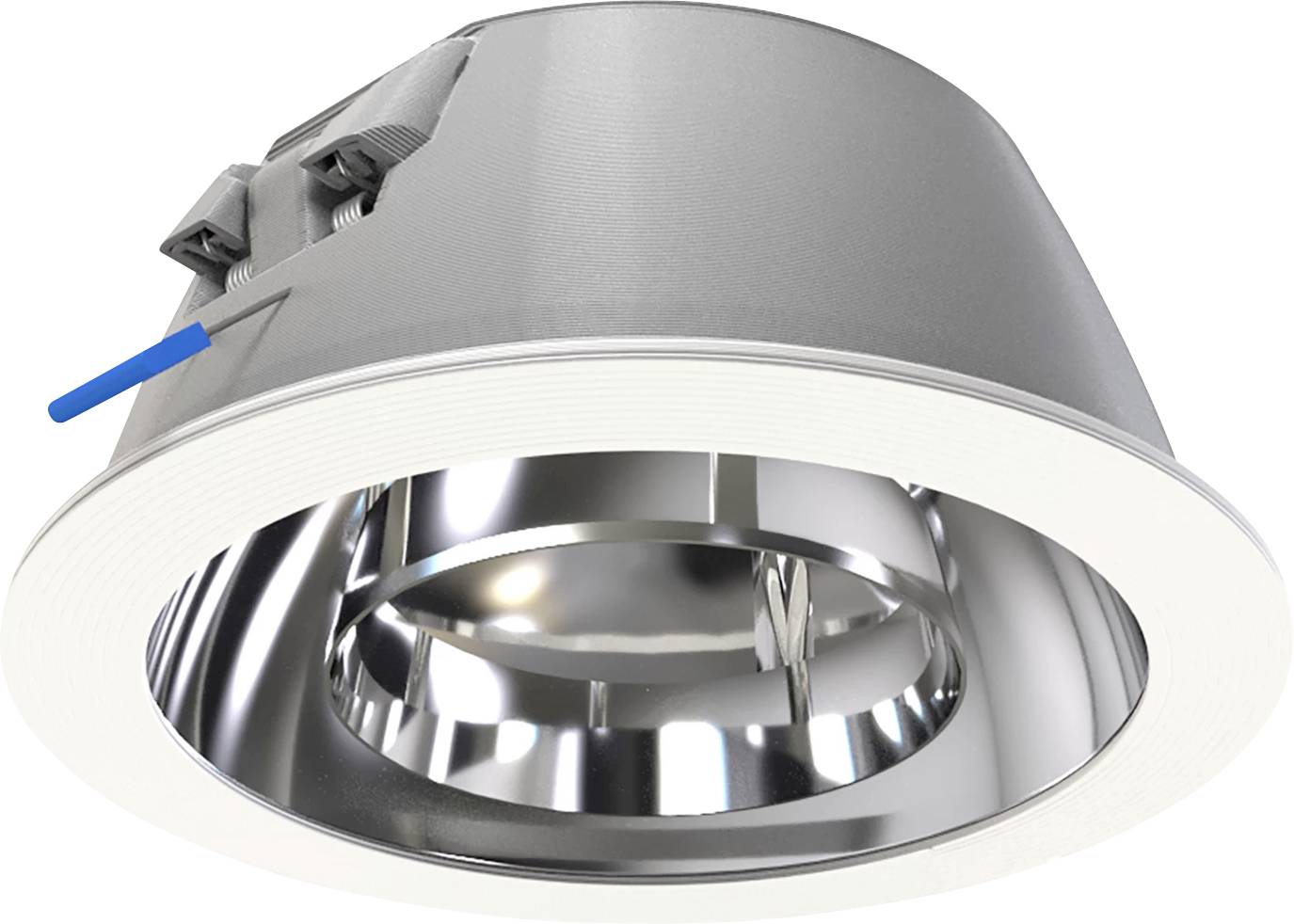

Philips 910505105019 DN510B 30S/840 OC PSU-E WH LED recessed light LED (monochrome) 19.2 W Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 19.2 W Total luminous flux= 3000 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Switch-on time 19.3 ms
- Power surge 15.3 A
- Product type
LED recessed light
- Operating voltage
220 V
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
19.2 W
- Total luminous flux
3000 lm
4000 K
- Colour
Neutral white
- Type
Circular
- Protection screen
Clear
- Radiation angle
60°
- Light features
Ceiling mount option
Recess mount option
Incl. ballast
Direct light emission
IP20
IK02
- Protection class
II
- Factory colour
Grey
- Material
Plastic
Aluminium
Polycarbonate (PC)
- Weight
0.7 kg
n.rel.
- Dim
(Ø x H) 230 mm x 89 mm
No
- Light bulb included
Yes
- Colour temperature range
4000 K
- Height
89 mm
- (Ø)
230 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3805326 Philips 910505105019 DN510B 30S/840 OC PSU-E WH LED recessed light LED (monochrome) 19.2 W Grey
User & Safety Instructions
User & Safety Instructions 3805326 Philips 910505105019 DN510B 30S/840 OC PSU-E WH LED recessed light LED (monochrome) 19.2 W Grey
Description
D200 mm, plastic, gray, recessed and insertion lights, power supply (on/off), 3000 lm, 19.2 W, 156 lm/W, 4000 K, (0.38, 0.38) SDCM <3, UGR19, high-gloss reflector, high-gloss reflector, Clear, IP20 | Keep fingers away, IK02 | 0.2 J Standard, Protection Class II.
