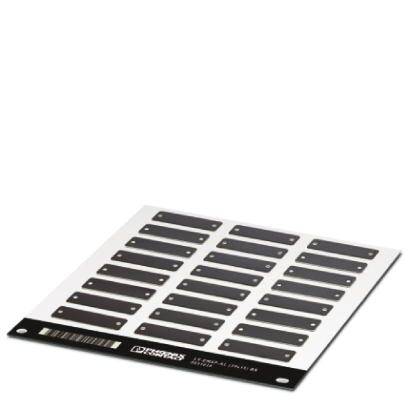

Phoenix Contact 0831626 LS-EMSP-AL (39X15) BK Device markers Fitting type: Screw, Pivet Writing area: 39 x 15 mm Black N
EAN:
Part number:
Item no:
Product type
Device markers
Fitting type
Screw
Pivet
Writing area length
39 mm
Writing area width
15 mm
Type
LS-EMSP-AL (39X15) BK
Datasheet (PDF)
Technical specifications
- Printability: Laser direct labeling
- Device: 1012015 TOPMARK NEO
- Recommended storage conditions: 23 °C / 50 % relative humidity. Dry and dark storage in the original packaging is recommended.
- Type
LS-EMSP-AL (39X15) BK
- Product type
Device markers
- Fitting type
Screw
Pivet
- Writing area length
39 mm
- Writing area width
15 mm
- Writing area
39 x 15 mm
- Material
Aluminium
- Features
Printable
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Factory colour
Black
- No. of markers
120
- Labels per sheet
24
- Dim
(L x W) 14.8 mm x 48.7 mm
- Mounting hole diameter
3.2 mm
- Halogen-free
Yes
- Content
5 pc(s)
- Dimensions
48.7 mm x 14.8 mm
- Suitable for application
Laser printers
- Width
48.7 mm
- Length
14.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2208856 Phoenix Contact 0831626 LS-EMSP-AL (39X15) BK Device markers Fitting type: Screw, Pivet Writing area: 39 x 15 mm Black N
Datasheet 2208856 Phoenix Contact 0831626 LS-EMSP-AL (39X15) BK Device markers Fitting type: Screw, Pivet Writing area: 39 x 15 mm Black N
User & Safety Instructions
User & Safety Instructions 2208856 Phoenix Contact 0831626 LS-EMSP-AL (39X15) BK Device markers Fitting type: Screw, Pivet Writing area: 39 x 15 mm Black N
Description

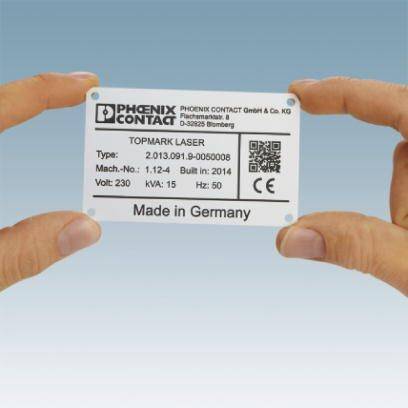

Aluminum device marking for screwing or riveting.
