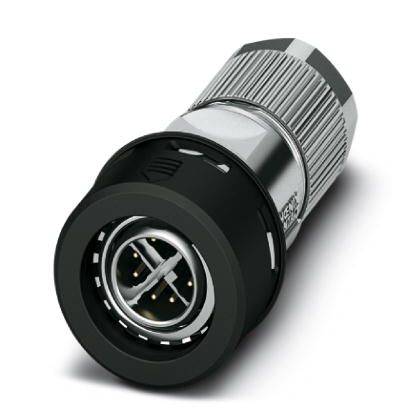

Phoenix Contact 1021783 Sensor/actuator connector Plug, straight No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Profinet
Connection side A
M12 plug, straight

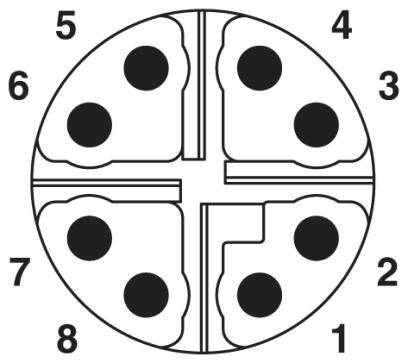

No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Signal type/category: Ethernet / PROFINET CAT6A (IEC 11801), 10 GBit/s.
- Standards/regulations: M12-plug connector IEC 61076-2-109 according to
- Insulation resistance ≥ 100 Ω
- Mating cycles: ≥ 100

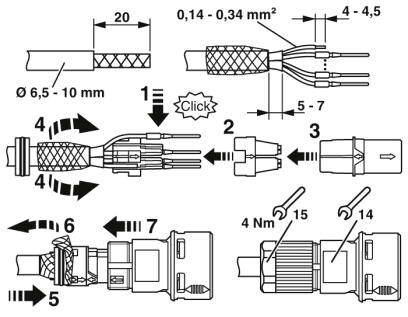

- Tightening torque: 4 Nm (pressure nut with sleeve housing)
- Pollution level 3
- Flammability class according to UL 94: V0
- Overvoltage category II
- Material grip body: Die-cast zinc, nickel-plated
- Material knurl: PA 6.6
- Material seal: NBR
- Type
SACC-P12MSX-8CT-CL SH
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- Connector standard
Profinet
- Connection side A
M12 plug, straight
- No. of pins
8
- Nominal voltage
48 V AC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Connector cross-section (max.)
0.34 mm²

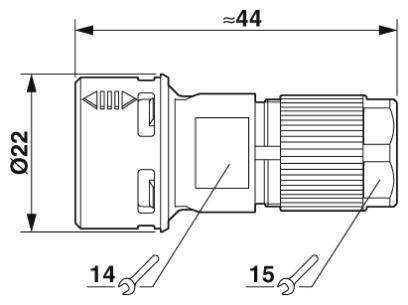

- Outside Ø
22.1 mm
- Connection
Crimp
- Thread type (wiring and installation)
M12
- Coding
X
- max. cross section
0.34 mm²
IP65
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1021783
- Content
1 pc(s)
- Cable Ø (max.)
10 mm
- Cable Ø up to
6.5 mm
- Cable Ø range
6.5 - 10 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2208980 Phoenix Contact 1021783 Sensor/actuator connector Plug, straight No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2208980 Phoenix Contact 1021783 Sensor/actuator connector Plug, straight No. of pins (RJ): 8 1 pc(s)
Description

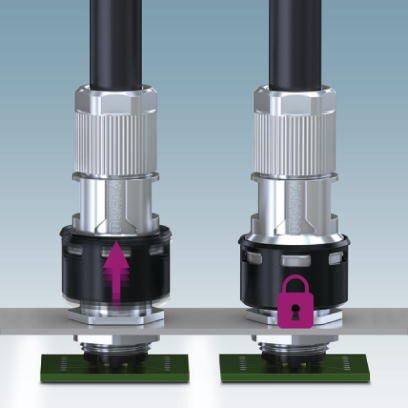

Plug-and-Produce: Convenient and secure insertion through cross-manufacturer locking system. Extremely compact due to small connection space and high contact density. Automated processing possible.
