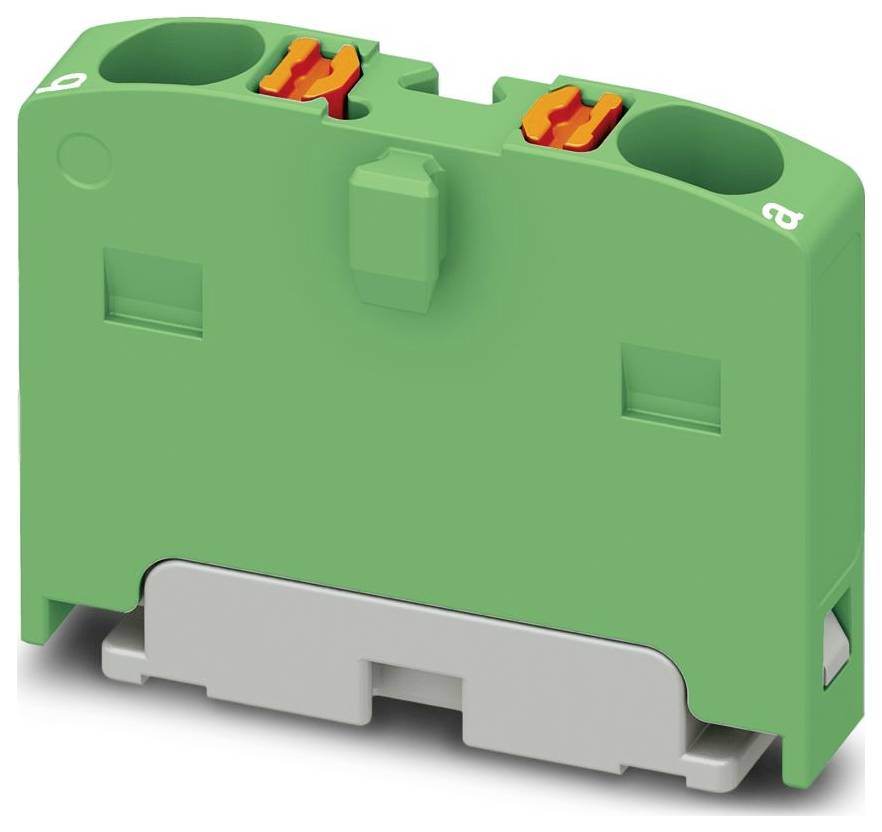

Phoenix Contact 1045932 Base terminal Push-in connector Green 50 pc(s)
Product type
Base terminal
Connection
Push-in connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PTFIX 2X1,5 GN
Technical specifications
- Product type
Base terminal
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Factory colour
Green
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
450 V
- Manufacturer part #
1045932
- Content
50 pc(s)
- Type
PTFIX 2X1,5 GN
- Dim
(W x H x D) 4.2 x 21.6 x 17.7 mm
- Width
4.2 mm
- Height
21.6 mm
- Flammability rating
V0
- Depth
17.7 mm
- UKCA
yes
