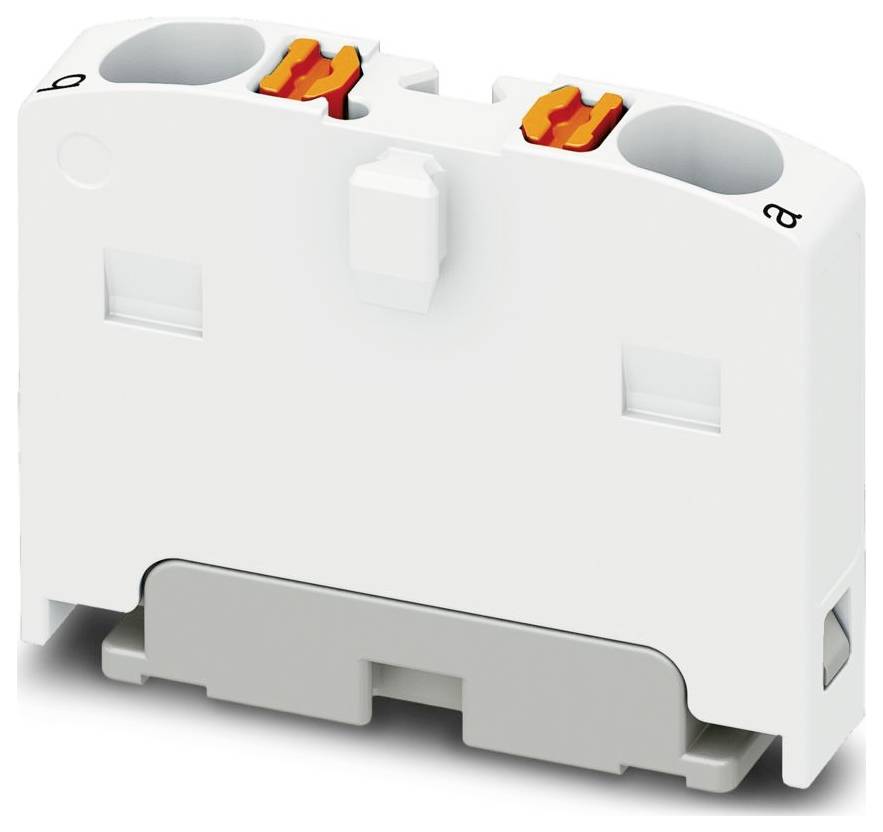

Phoenix Contact 1045936 Base terminal White 50 pc(s) Piece
Packaging type
Piece
Product type
Base terminal
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- PTFIX 2X1,5 WH
Technical specifications
- Packaging type
Piece
- Product type
Base terminal
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
2
- Factory colour
White
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
450 V
- Manufacturer part #
1045936
- Content
50 pc(s)
- Type
PTFIX 2X1,5 WH
- Dim
(W x H x D) 4.2 x 21.6 x 17.7 mm
- Width
4.2 mm
- Height
21.6 mm
- Flammability rating
V0
- Depth
17.7 mm
- UKCA
yes
