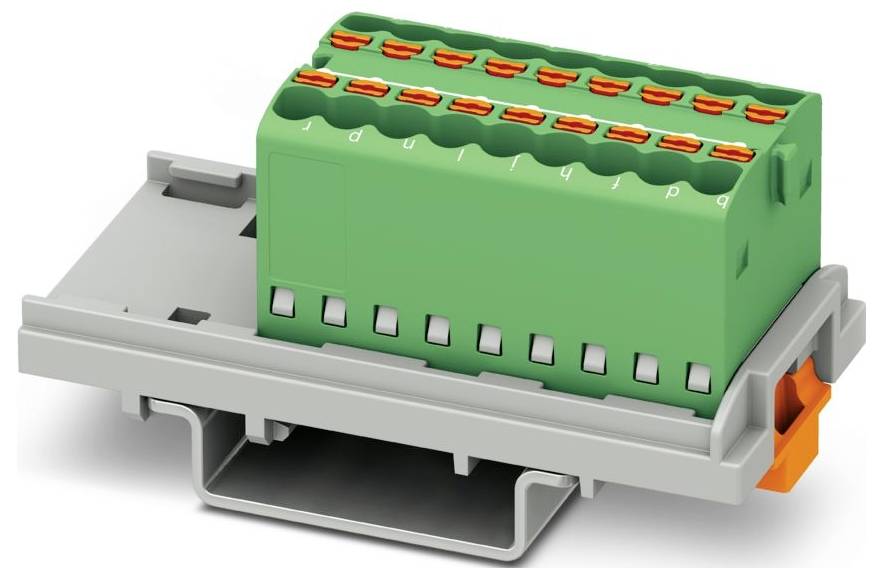

Phoenix Contact 1046953 Distribution block Push-in connector Green 20 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Push-in connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Technical specifications
- Product type
Distribution block
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
18
- Factory colour
Green
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
1046953
- Content
20 pc(s)
- Type
PTFIX 18X1,5-NS35 GN
- Dim
(W x H x D) 21.6 x 58.1 x 26.4 mm
- Width
21.6 mm
- Height
58.1 mm
- Flammability rating
V0
- Depth
26.4 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562233 Phoenix Contact 1046953 Distribution block Push-in connector Green 20 pc(s)
User & Safety Instructions
User & Safety Instructions 3562233 Phoenix Contact 1046953 Distribution block Push-in connector Green 20 pc(s)
