Image similar

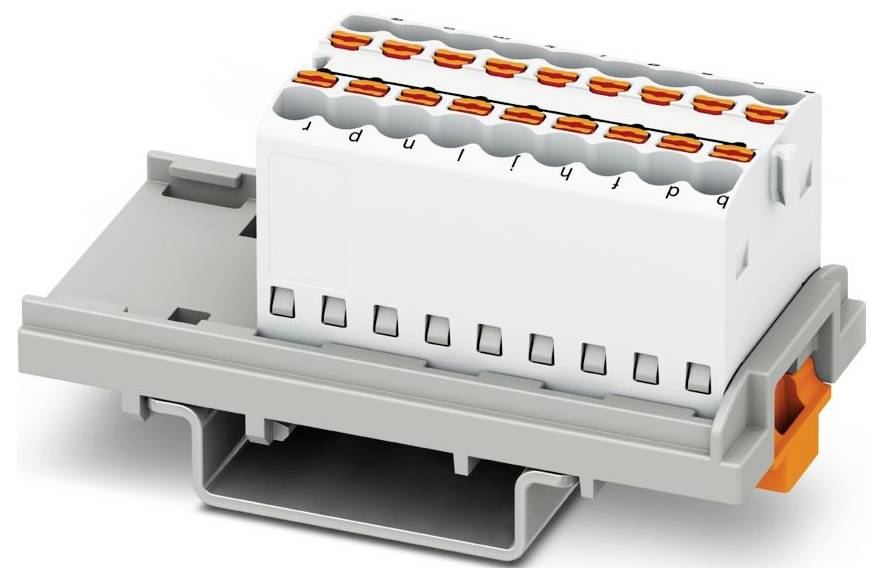

Phoenix Contact 1046956 Distribution block Push-in connector White 20 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Push-in connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Technical specifications
- Cover plate required: No.
- Number of clamping points per level: 18
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:17.5 A.
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Product type
Distribution block
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
18
- Factory colour
White
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
1046956
- Content
20 pc(s)
- Type
PTFIX 18X1,5-NS35 WH
- Dim
(W x H x D) 21.6 x 58.1 x 26.4 mm
- Width
21.6 mm
- Height
58.1 mm
- Flammability rating
V0
- Depth
26.4 mm
- Rated voltage
500 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562249 Phoenix Contact 1046956 Distribution block Push-in connector White 20 pc(s)
User & Safety Instructions
User & Safety Instructions 3562249 Phoenix Contact 1046956 Distribution block Push-in connector White 20 pc(s)
Description
Distributor block, internally bridged, rated voltage: 500 V, rated current: 17.5 A, number of connections: 18, connection type: Push-in connection, cross-section: 0.14 mm² - 2.5 mm², mounting type : NS 35/15, NS 35/7.5, color: White
