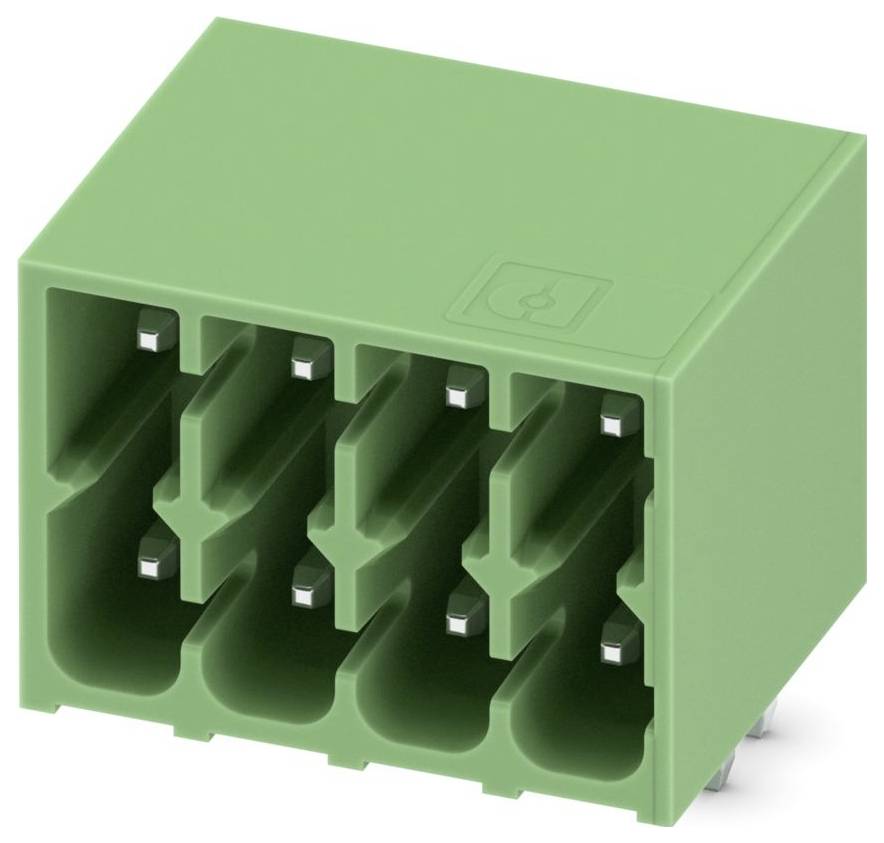

Phoenix Contact 1053810 PCB pin header Total number of pins 8 No. of rows 2 50 pc(s) Carton
Product type
PCB pin header
Total no. of pins
8
CS
3.5 mm
Content
50 pc(s)
Packaging type
Carton
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal strip
- Total number of pins 8
- No. of rows 2
- Content 50 pc(s)
Technical specifications
- Number of plug contact rows: 2
- Tape type: Cardboard (for SMD)
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Operating temperature 40 °C
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.2 mm
- Pin contact type
- Length of the pin 3.5 mm
- Number of pins: 8
- Grid dimension of the connections 3.5 mm
- Contact spacing 3.5 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Packaging type
Carton
- Product type
PCB pin header
- Total no. of pins
8
- Total number of pins
8
- No. of rows
2
- CS
3.5 mm
- Connection
Soldering
- Case material
PA
- Manufacturer part #
1053810
- Content
50 pc(s)
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
DMC 1,5/ 4-G1-3,5 P35
- Board contact surface
Tin
- Connector contact surface
Tin
- Number of pins
8
- Case colour
Green
- Rated voltage
160 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562469 Phoenix Contact 1053810 PCB pin header Total number of pins 8 No. of rows 2 50 pc(s) Carton
User & Safety Instructions
User & Safety Instructions 3562469 Phoenix Contact 1053810 PCB pin header Total number of pins 8 No. of rows 2 50 pc(s) Carton
Description
PCB baseboard, rated cross-section: 1.5 mm², Colour: Green, rated current: 8 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Pen, number of potential: 8, number of rows: 2, number of terminals: 3.5, product family: DMC 1.5/..-G1, grid dimension: 4 mm, mounting: Wave soldering, pin layout: Linear pinning, pin Pin length [P]: 3.5 mm, number of soldering pins per potential: 1, connector system: COMBICON DFMC 1.5, mating face: standard, locking: without, mounting method: without, packing type: packed in a carton
This text is machine translated.
