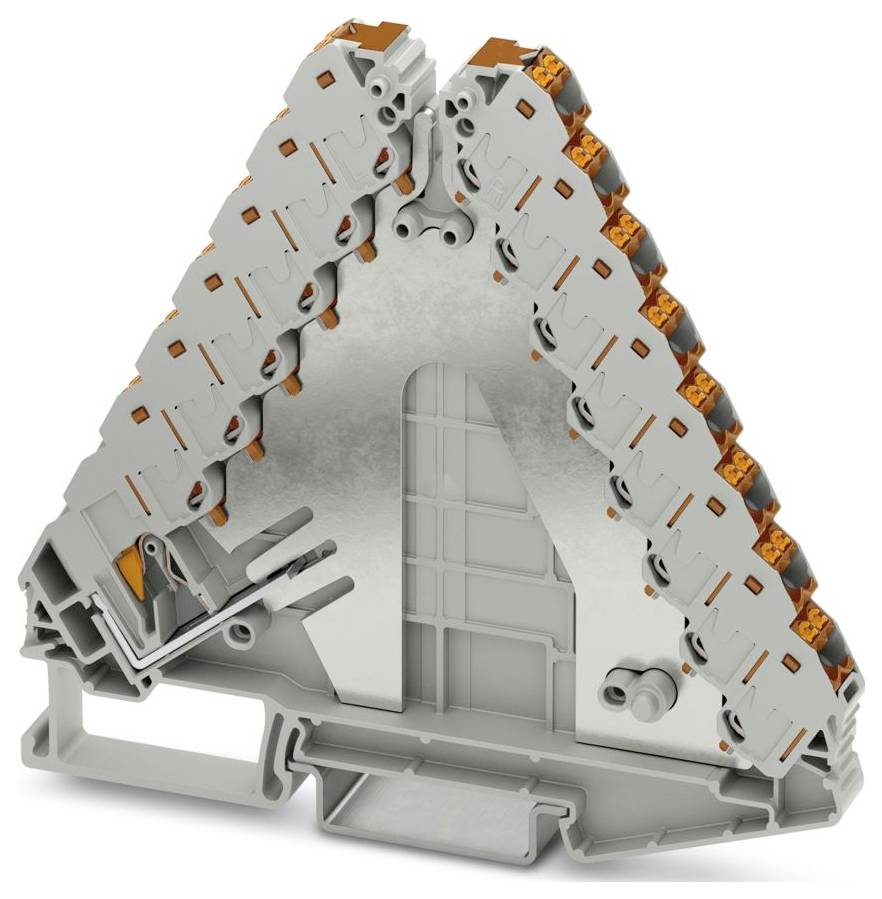

Phoenix Contact 1067596 Potential distributor Push-in connector Grey 10 pc(s)
Product type
Potential distributor
Connection
Push-in connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Cover plate required: Yes
- Wire cross-section with single wire connections: 0.14-2.5 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 1.5 mm²
- Suitable for wire cross-sections of fine wire without wire-end sleeves: 0.14-1.5 mm²
- Number of floors: 8
- Number of clamping points per level: 4
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:17.5 A.
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Product type
Potential distributor
- Features
built-in jumper
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
250 V
- Manufacturer part #
1067596
- Content
10 pc(s)
- Type
PTRVB 8-FI /BN
- Dim
(W x H x D) 8.3 x 100 x 87.5 mm
- Width
8.3 mm
- Height
100 mm
- Flammability rating
V0
- Connector colour
Brown
- Depth
87.5 mm
- Rated voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562445 Phoenix Contact 1067596 Potential distributor Push-in connector Grey 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3562445 Phoenix Contact 1067596 Potential distributor Push-in connector Grey 10 pc(s)
Description
Potential distributor, with possibility of feeding up to 6 mm² , nominal voltage: 250 V, rated current : 17.5 A, connection type: Push-in connection, rated cross-section: 1.5 mm², Cross-section: 0.14 mm² - 2.5 mm², infeed floor , rated cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting: NS 35/7.5, NS 35/15, Colour: gray, color of connecting elements: brown
