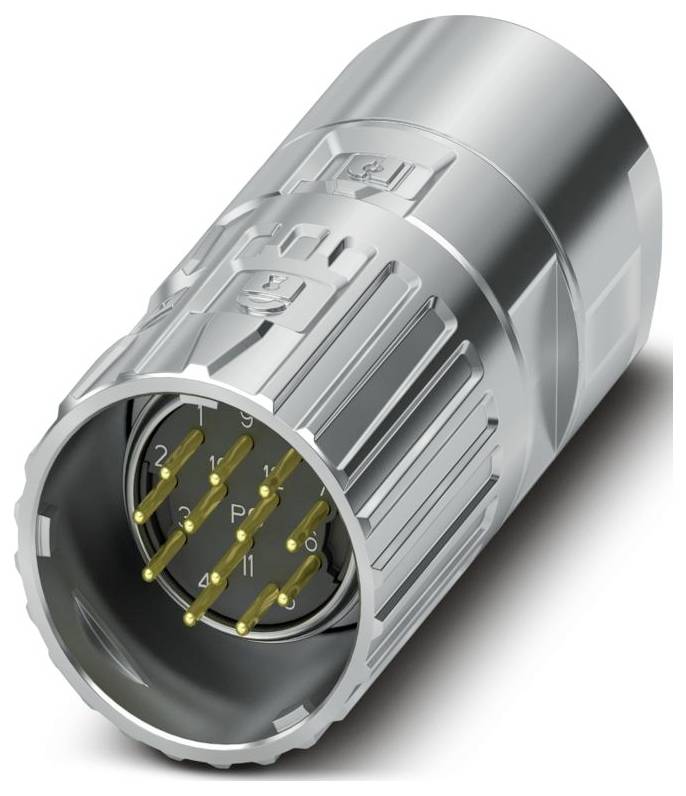

Image similar
Phoenix Contact 1069326 Connector straight Total number of pins: 12 Single 1 pc(s)
Product type
Connector
Connector type
straight
Total no. of pins
12
Content
1 pc(s)
Type
M23-12P2N8A80DUS
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of data contacts: 0
- Number of power contacts: 0
- Number of control contacts: 12
- Type of locking: Other
- Construction of the casing: Straight
- For cable outside diameter 3-15 mm
- Contact version: Other
- Min Number of mating cycles: 100
- With ground wire: No.
- With status display: No.
- Ambient temperature -40-105 °C.
- Type
M23-12P2N8A80DUS
- Product type
Connector
- Connector type
straight
- Total no. of pins
12
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Leading contact (PE)
No
- Cable Ø (max.)
15 mm
- Cable Ø up to
3 mm
- Manufacturer part #
1069326
- Cable Ø range
3 - 15 mm
- Number of pins
12
- Feature
shielded
- Packaging type
Single
- Shielded
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562802 Phoenix Contact 1069326 Connector straight Total number of pins: 12 Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562802 Phoenix Contact 1069326 Connector straight Total number of pins: 12 Single 1 pc(s)
Description
M23, cable connector, series: M23 PRO, straight, shielded: Yes, ONECLICK quick locking, number of poles: 12, rotating direction: anticlockwise, contact type: pin, crimp connection, Cable diameter range: 3 mm ... 15 mm, coding: N, article is lead free according to RoHS II without exception 6c (Pb < 0.1 %)
